LCD display modes
|
|
||||
|---|---|---|---|---|
 Trip Computer |
 Turn By Turn (TBT)* |
 Driving Assist |
 Master warning |
|
|
Up/Down |
Fuel Economy |
Route Guidance |
LDWS |
The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally. |
|
Accumulated Info |
Destination Info |
DAW* |
||
|
Drive Info |
TPMS |
|||
|
Digital Speedometer |
||||
|
AUTO STOP |
||||
|
DRIVE MODE |
||||
Mode
|
|
|||
|---|---|---|---|
|
Trip Computer |
Turn By Turn (TBT)* |
Driving Assist |
|
|
Up/Down |
Drive Info (Utility) |
Route Guidance |
LDWS |
|
Drive Info After Refueling |
Destination Info |
||
|
Accumulated Info |
|||
|
Digital Speedometer (Utility) |
|||
|
AUTO STOP (Utility) |
|||
|
DAW (Utility) |
|||
|
TPMS (Utility) |
|||
|
DRIVE MODE (Utility) |
|||
|
Utility |
|||
The information provided may differ depending on which functions are applicable to your vehicle.
* : if equipped
Keep the engine running when configuring the display settings to prevent the battery from discharging.

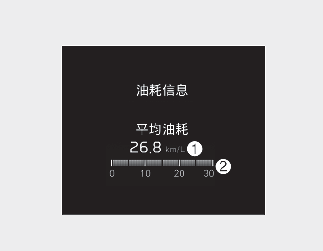

Trip computer mode
The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.
* For more details, refer to More Details.

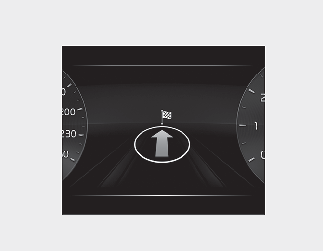

Turn By Turn (TBT) mode
This mode displays the state of the navigation.

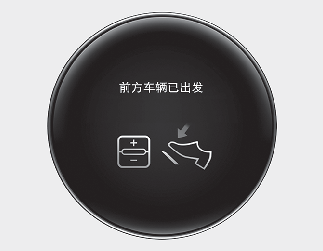

Driving Assist mode
This mode displays the state of:
-
Smart Cruise Control (if equipped)
-
Driver Attention Warning (if equipped)
-
Warning Timing
-
Warning Volume
* For more details, refer to each system information in More Details.
This mode displays information related to Tire Pressure.
* For more details, refer to More Details.

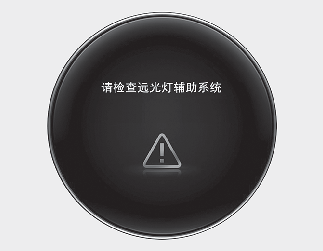

Master warning mode
This warning light informs the driver the following situations.
-
LED headlamp malfunction
-
Lamp malfunction
-
High Beam Assist malfunction (if equipped)
At this time, a Master Warning icon 「
」 will appear beside the User Settings icon 「
」, on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning
icon will disappear.
For Full LCD Cluster (Type B), press OK button on the steering wheel and go to 'Option → Check Information → Master Warning' on the LCD display.
