Fuse/relay panel description

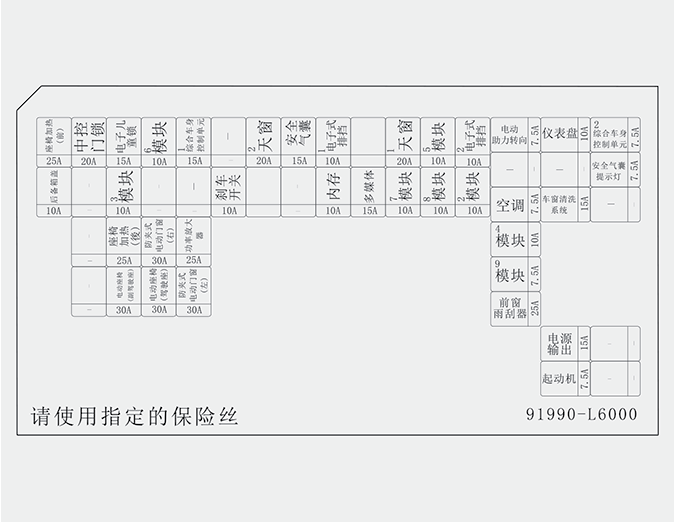

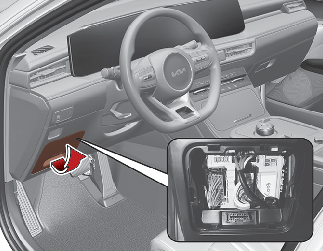

Driver's side fuse panel
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
S/HEATER(FRT) |
25A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
TRUNK |
10A |
Trunk Lid Relay |
|
DOOR LOCK |
20A |
Door Lock/Unlock Relay |
|
P/CHILD LOCK |
15A |
Rear Child Lock Relay, Rear Child Unlock Relay |
|
MDOULE3 |
10A |
Hazard Switch, Front Mood Lamp Right Handle side, Front Mood Lamp Unit, Driver Door Module, Driver/Passenger Door Mood Lamp Unit, Data Link Connector |
|
S/HEATER(RR) |
25A |
Rear Seat Warmer Control Module |
|
P/SEAT(PASS) |
30A |
Passenger Seat Manual Switch |
|
MODULE6 |
10A |
Driver Door Module |
|
SAFETY P/WINDOW(RH) |
30A |
Passenger Safety Power Window Module, Rear Safety Power Window Module Right Handle side |
|
P/SEAT(DRV) |
30A |
Driver Seat Manual Switch, Driver IMS Module |
|
IBU1 |
15A |
Ignition Switch, IBU (Integrated Body Control Unit) |
|
AMP |
25A |
DC-DC Converter (AMP (Amplifier)) |
|
SAFETY P/WINDOW(LH) |
30A |
Driver Safety Power Window Module, Rear Safety Power Window Module Left Handle side |
|
BRAKE SWITCH |
10A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
SUNROOF2 |
20A |
Sunroof Controller (Blind Motor) |
|
A/BAG |
15A |
SRS Control Module |
|
E-SHIFTER1 |
10A |
SCU,SBW (Shift By Wire) |
|
MEMORY |
10A |
Driver IMS Module, Driver/Passenger Power Outside Mirror |
|
MULTI MEDIA |
15A |
DC-DC Converter (Audio) |
|
SUNROOF1 |
20A |
Sunroof Controller (Glass Motor) |
|
MODULE7 |
10A |
Lane Keeping Assist Unit, IBU (Integrated Body Control Unit), Crash Pad Switch, EPB (Electronic parking brake) Switch |
|
MDOULE5 |
10A |
Stop Lamp Switch, SBW (Shift By Wire) |
|
MODULE8 |
10A |
Air Conditioner Control Module, Overhead Console Lamp, Driver IMS Module, Data Link Connector, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, Audio, Audio/Video & Navigation Head Unit, Air Conditioner Switch, DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror |
|
E-SHIFTER2 |
10A |
SCU |
|
MODULE2 |
10A |
Cooling Fan Motor, Crash CDMS Temperature, Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
MDPS |
7.5A |
MDPS (Motor Driven Power Steering) Unit |
|
A/CON |
7.5A |
Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
|
MODULE4 |
10A |
IBU (Integrated Body Control Unit), DC-DC Converter (Audio/AMP (Amplifier)), ARM Control, Air Conditioner Control Switch |
|
MODULE9 |
7.5A |
IBU (Integrated Body Control Unit) |
|
WIPER |
25A |
Wiper Motor, Engine Room Junction Block (Wiper Low Relay) |
|
CLUSTER |
10A |
Instrument Cluster |
|
WASHER |
15A |
Multifunction Switch |
|
POWER OUTLET |
15A |
Front Power Outlet |
|
START |
7.5A |
Burglar Alarm Relay, IBU (Integrated Body Control Unit), ECM (Engine Control Module), PCM (Power train Control Module) |
|
IBU2 |
7.5A |
IBU (Integrated Body Control Unit) |
|
A/BAG IND |
7.5A |
Instrument Cluster |

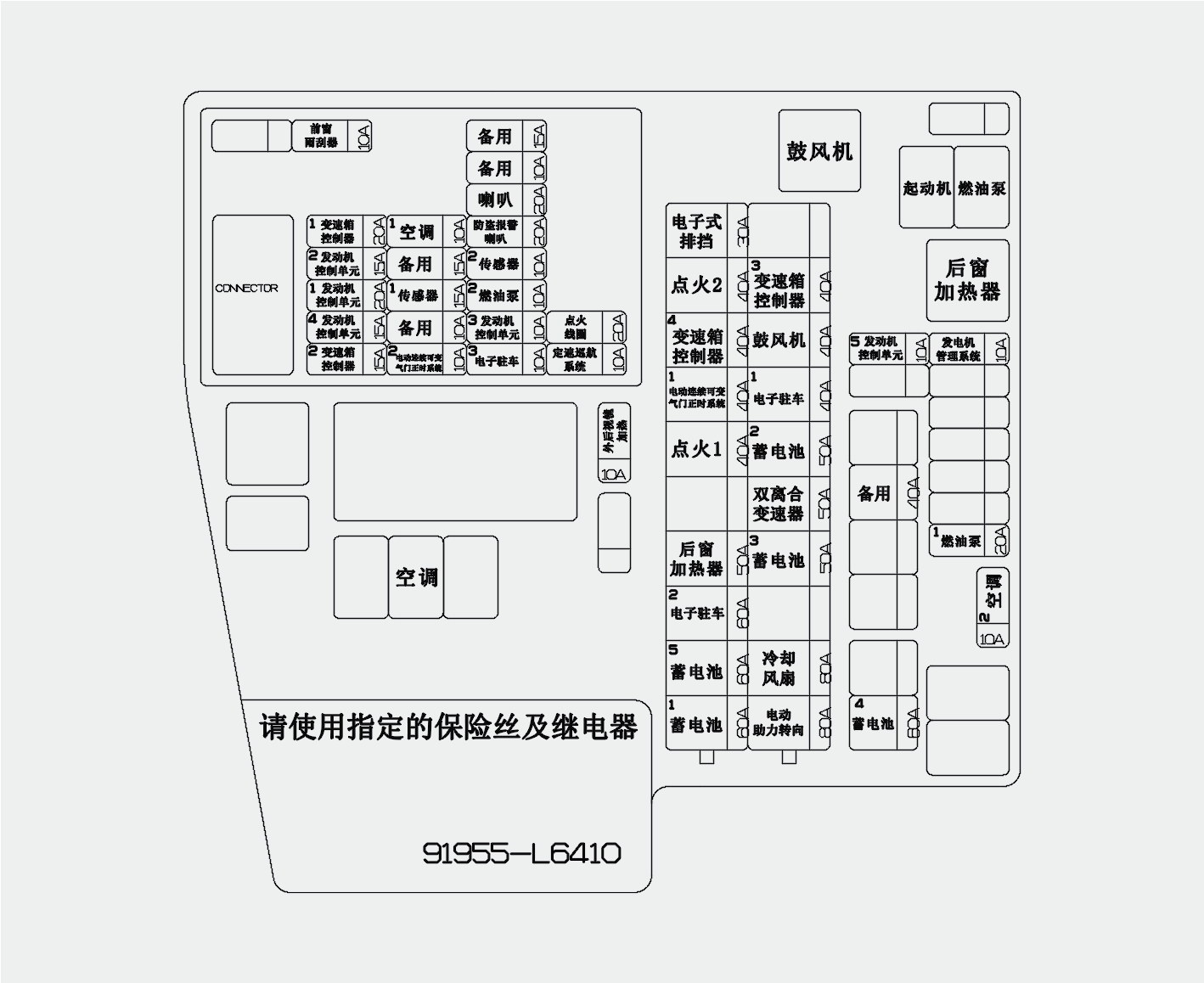

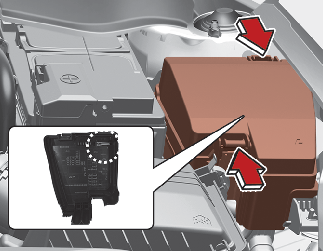

Engine compartment fuse panel
Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
BLOWER |
40A |
Engine Room Junction Block (Blower Relay) |
|
EPB1 |
40A |
ESC (Electronic Stability Control) Module |
|
|
B+2 |
50A |
ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS10 Fuse - AMP, IBU1) |
|
|
B+3 |
50A |
ICU Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, IPS11) |
|
|
COOLING FAN |
80A |
Cooling Fan Motor |
|
|
MDPS |
80A |
MDPS (Motor Driven Power Steering) Unit |
|
|
TCU3 |
40A |
[Smartstream G1.5 T-GDi]TCM (Transmission Control Module) |
|
|
DCT SGA |
50A |
[Smartstream G1.5 T-GDi] Smart Gear Actuator |
|
|
OIL PUMP1 |
60A |
[Smartstream G2.0 T-GDi] Electronic Oil Pump |
|
|
MULTI FUSE-2 |
B+1 |
60A |
ICU Junction Block (Fuse - P/SEAT(DRV), P/SEAT(PASS), P/CHILD LOCK, SEAT HEATER (Rear), SAFETY P/WINDOW(LH), SAFETY P/WINDOW (Right Handle side) |
|
IG2 |
40A |
Engine Room Junction Block (Start Relay), PCB Block (IG2 Relay) |
|
|
E-CVVT1 |
40A |
[Smartstream G1.5 T-GDi] CVVD Actuator |
|
|
IG1 |
40A |
PCB Block (IG1 Relay, ACC Relay) |
|
|
REAR HEATED GLASS |
50A |
Engine Room Junction Block (Rear Heated Glass Relay) |
|
|
EPB2 |
60A |
ESC (Electronic Stability Control) Module |
|
|
B+5 |
60A |
PCB Block (Main Relay, Fuse - A/C1, TCU1, HORN, ECU2) |
|
|
E-SHIFTER |
30A |
SCU |
|
|
TCU4 |
40A |
TCM (Transmission Control Module) |
|
|
FUSE |
B+4 |
60A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - MODULE3, AIR BAG2, SUNROOF1, SUNROOF2, SEAT HEATER (FRT), TRUNK, BRAKE SWITCH, DOOR LOCK, E-SHIFTER1) |
|
ECU5 |
10A |
[Smartstream G1.5 T-GDi] ECM (Engine Control Module) |
|
|
AMS |
10A |
Battery Sensor |
|
|
VACUUM PUMP1 |
20A |
[Smartstream G2.0 T-GDi] Vacuum Relay |
|
|
FUEL PUMP1 |
20A |
Engine Room Junction Block (Fuel Pump Relay) |
|
|
VACUUM PUMP2 |
10A |
[Smartstream G2.0 T-GDi] ESC (Electronic Stability Control) Module |
|
|
HEATED MIRROR |
10A |
Air Conditioner Switch |
|
|
A/C |
10A |
Air Conditioner Control Module |
|
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
WIPER |
10A |
IBU |
|
TCU1 |
20A |
TCM (Transmission Control Module) |
|
ECU2 |
15A |
ECM (Engine Control Module) |
|
ECU1 |
20A |
ECM (Engine Control Module) |
|
ECU4 |
15A |
ECM (Engine Control Module) |
|
TCU2 |
15A |
TCM (Transmission Control Module) |
|
A/CON COMP1 |
10A |
Engine Room Junction Block (A/C Relay) |
|
SENSOR1 |
15A |
Oxygen Sensor (Up/Down) |
|
CVVD2 |
10A |
CVVD Actuator |
|
HORN |
20A |
PCB Block (Horn Relay) |
|
B/A HORN |
20A |
PCB Block (B/A Horn Relay) |
|
SENSOR2 |
10A |
Oil Control Valve (Intake/Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (A/C Relay) |
|
F/PUMP2 |
10A |
Engine Room Junction Block (Fuel Pump Relay) |
|
ECU3 |
10A |
ECM (Engine Control Module) |
|
EPB3 |
10A |
ESC (Electronic Stability Control) Module, Vacuum Relay |
|
IGN COIL |
20A |
Ignition Coil #1 ~ #4 |
|
CRUISE |
10A |
Smart Cruise Control Unit |
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
WIPER |
10A |
IBU, ECM (Engine Control Module) |
|
TCU1 |
20A |
Not Used |
|
ECU2 |
15A |
PCM (Power train Control Module) |
|
ECU1 |
20A |
PCM (Power train Control Module) |
|
ECU4 |
15A |
Not Used |
|
TCU2 |
15A |
Not Used |
|
A/C COMP1 |
10A |
Engine Room Junction Block (A/C Relay) |
|
SENSOR1 |
15A |
Oxygen Sensor (Up/Down) |
|
OIL PUMP2 |
10A |
Electronic Oil Pump |
|
HORN |
20A |
PCB Block (Horn Relay) |
|
B/A HORN |
20A |
PCB Block (B/A Horn Relay) |
|
SENSOR2 |
10A |
Oil Control Valve (Intake/Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (A/C Relay) |
|
F/PUMP2 |
10A |
Engine Room Junction Block (Fuel Pump Relay) |
|
ECU3 |
10A |
PCM (Power train Control Module) |
|
EPB3 |
10A |
ESC (Electronic Stability Control) Module, Vauum Pump |
|
IGN COIL |
20A |
Ignition Coil #1 ~ #4 |
|
CRUISE |
10A |
Smart Cruise Control Unit |

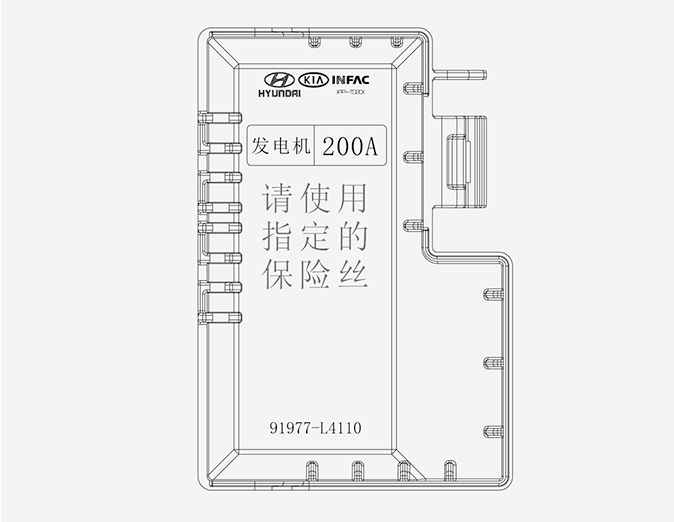

Battery terminal cover
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
