Heating and air conditioning manually
In this case, the system works sequentially according to the order of buttons selected.
For improving the effectiveness of heating and cooling;
-
Heating:
-
Cooling:
If air conditioning is desired, turn the air conditioning system on.
Press the AUTO button in order to convert to fully automatic control of the system.

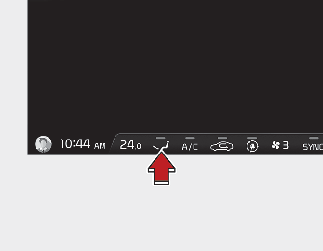

Mode selection

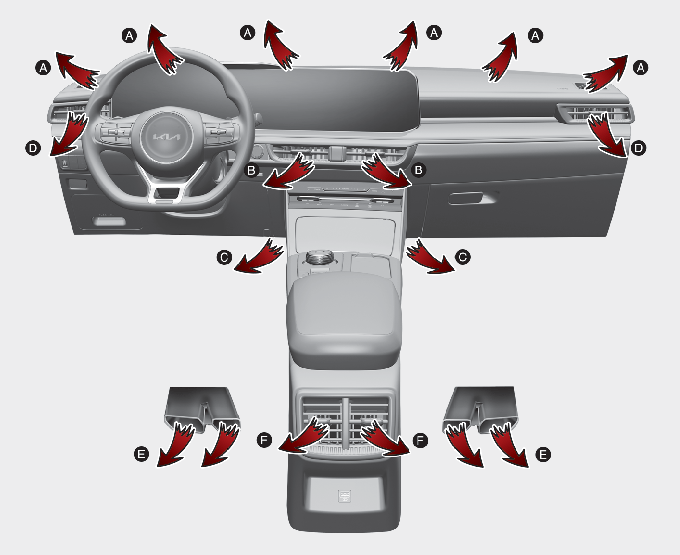

The air flow outlet ports are switched in the following sequence:
Face-Level (B, D, F)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D, E, F)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D, E, F)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters and side air vents.
Floor/Defrost-Level (A, C, D, E, F)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters and side air vents.
Defrost-Level (A, D)
Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters and side air vents.

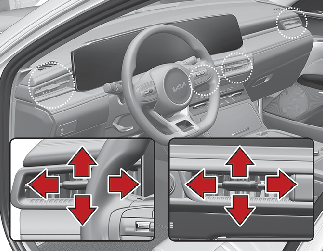

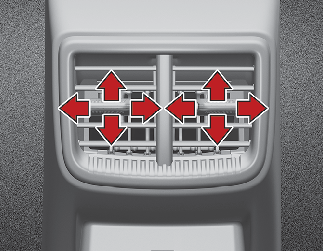

Instrument panel vents
You can adjust the direction of air delivered from these vents using the vent control lever as shown. If you do not want the
air delivered, place the vent control lever to the close (
) position.

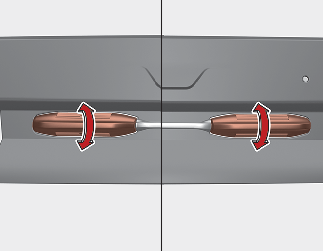

Temperature control
The temperature will increase to the maximum (HI) by moving the switch upwards.
The temperature will decrease to the minimum (Lo) by moving the switch downwards.
When moving the switch, the temperature will increase or decrease by 0.5 °C. When set to the lowest temperature setting, the air conditioning will operate continuously.
When starting the vehicle in cold weather using manual temperature control, operate the system in the following method to improve heating.
-
Turn off or lower the blower, right after starting the engine.
-
Allow the engine to warm up during this time since the air flow from the heater is still cold.
-
After a few minutes of engine warm up, turn on or set the fan to a higher level and adjust the temperature setting to hot.
Adjusting the driver and passenger side temperature equally
The passenger side temperature will be set to the same temperature as the driver side temperature.
Adjusting the driver and passenger side temperature individually

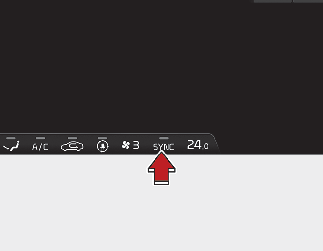

Press the "SYNC" icon again to adjust the driver and passenger side temperature individually. The icon indicator will turn off.
Changing temperature scale
You can switch the temperature mode from Centigrade to Fahrenheit as follows:
-
While pressing the OFF button, press the AUTO button for 3 seconds or more.
The display will change from Centigrade to Fahrenheit, or from Fahrenheit to Centigrade. If the battery has been discharged or disconnected, the temperature mode display will reset to Centigrade.

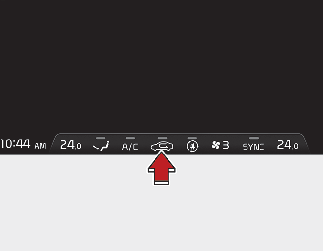

Controlling air intake
To change the air intake control position:
-
Push the desired control icon.
With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

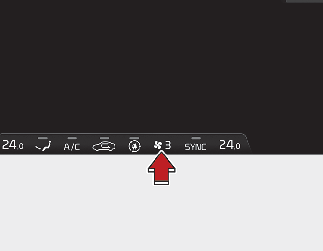

Controlling fan speed
The fan speed can be set to the desired speed by operating the fan speed control bar.
To change the fan speed:
-
Press the fan speed control icon. The climate control display will be displayed.
-
Move the fan speed control bar on the display to the desired fan speed.
To turn the fan speed control off:
-
Press the OFF button.
Air conditioning (A/C)
-
Press the A/C icon to turn the air conditioning system on (indicator light will illuminate).
-
Press the icon again to turn the air conditioning system off.

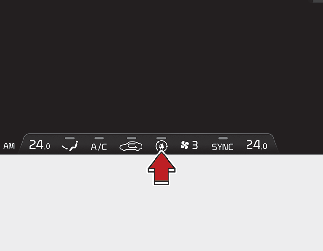

Air cleaning button
To prevent outside air coming in the vehicle and maintain vehicle's clean air:
-
Press the air cleaning icon.
When the air cleaning system is ON, the recirculated air position is selected and the blower fan operates automatically.
The air cleaning system operates for 5 minutes and then the climate system turns into previous mode.
When the auto defogging system or front defrosting operates while the air cleaning system is ON, the air cleaning system operating might be changed.
For better air cleaning system performance, close the sunroof.

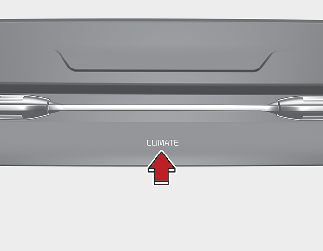

Climate information screen selection
-
Press the climate information screen selection button to display climate information on the screen.
Reduced Visibility
Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may fog the glass and obscure visibility.
Recirculated Air
Continued use of the climate control system in the recirculated air position can cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position as much as possible while driving.
Sleeping with A/C on
Do not sleep in a vehicle with the air conditioning or heating on as this may cause serious harm or death due to a drop in the oxygen level and/or body temperature.

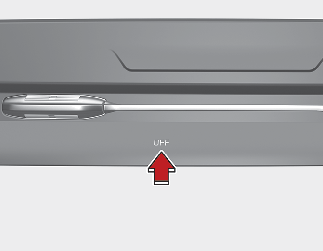

Turning off the front air climate control
-
Press the OFF button to turn off the air climate control system.
However, you can still operate the mode and air intake buttons as long as the ENGINE START/STOP button is in the ON position.
Sunroof inside air recirculation (if equipped)
The outside (fresh) air position is automatically selected, when the sunroof is opened.
When you select the recirculated air position, the system maintains the recirculated air position for approximately 3 minutes and then automatically converts to the outside (fresh) air position.
When the sunroof is closed, the air intake position will return to the original position that was selected.
