Home > Driving your vehicle > Rear Cross-Traffic Collision-Warning (RCCW) > Function Operation

Function Operation

Function warning

Rear Cross-Traffic Safety system will warn the driver when a collision is imminent.

Collision Warning

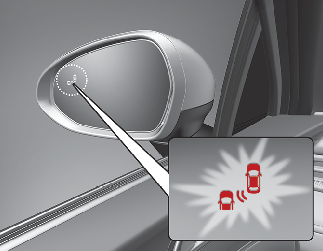

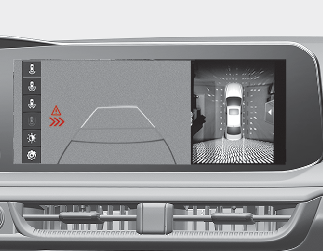

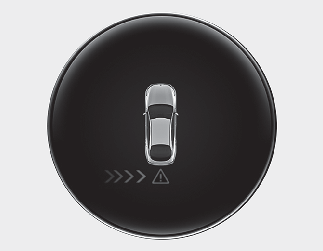

  • To warn the driver of an approaching vehicle from the rear left/right side of your vehicle, the warning light on the side view mirror will blink and a warning will appear on the cluster. At the same time, an audible warning will sound. If the Rear View Monitor is operating, a warning will also appear on the infotainment system screen.

  • The function will operate when all the following conditions are satisfied:

    • The gear is shifted to R (Reverse)

    • Vehicle speed is below 8 km/h

    • The approaching vehicle is within approximately 25 m from the left and right side of your vehicle

    • The speed of the vehicle approaching from the left and right is above 5 km/h

NOTICE

If the operating conditions are satisfied, there will be a warning whenever the vehicle approaches from the left or right side even though your vehicle speed is 0 km/h.

WARNING

Take the following precautions when using Rear Cross-Traffic Safety system:

  • For your safety, change the Settings after parking the vehicle at a safe location.

  • If any other function's warning message is displayed or audible warning is generated, Rear Cross- Traffic Safety system's warning message may not be displayed and audible warning may not be generated.

  • You may not hear the warning sound of Rear Cross-Traffic Safety system if the surrounding is noisy.

  • Rear Cross-Traffic Safety system may warn the driver late or may not warn the driver depending on the road and driving conditions.

  • The driver should hold the responsibility to control the vehicle. Do not solely depend on Rear Cross-Traffic Safety system. Rather, maintain a safe braking distance, and if necessary, depress the brake pedal to reduce driving speed or to stop the vehicle.

  • While the vehicle is moving forward, if the gear is shifted too fast, Rear Cross-Traffic Safety system may not work or work inadvertently.

  • Never operate Rear Cross-Traffic Safety system on people, animal, objects, etc. It may cause serious injury or death.
