The SRS consists of multiple elements and sensors.

* The actual position of SRS components may differ from the illustration.

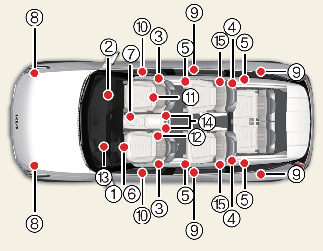

The SRS consists of the following components:

1. Driver's front air bag module

2. Passenger's front air bag module

3. Front side air bag modules

4. Curtain air bag modules

5. Retractor pre-tensioner assemblies

6. Air bag warning light

7. SRS control module (SRSCM) (SRS Control Module)/rollover sensor

8. Front impact sensors

9. Side impact sensors

10. Side pressure sensors

11. Occupant detection system (Front passenger's seat only)

12. Front center side air bag module

13. Driver's knee airbag module

14. Front driver/passenger's seat belt buckle sensor

15. 2nd row seat side airbag module

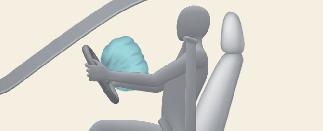

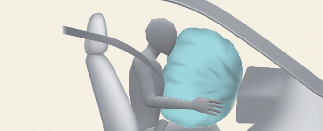

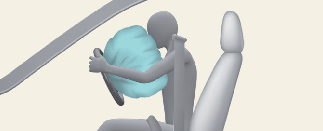

The front air bag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers then allows full inflation of the air bags.

A fully inflated air bag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer or operate other controls.

• If an air bag deploys, there may be a loud noise and powder released in the vehicle. These conditions are normal and are non-toxic. The air bags are packed in this fine powder. The dust generated during air bag deployment may cause skin or eye irritation as well as aggravate asthma for some persons. Wash all exposed skin areas thoroughly with cold water and a mild soap after an accident in which the air bags were deployed.

• The SRS can function only when the EV button is in the ON position. If the SRS warning light does not appear, or remains on after about 3~6 seconds when the EV button is in the ON position after the vehicle is in the READY mode, or illuminates while driving, the SRS is not working properly. Have your vehicle immediately inspected by an authorized Kia dealer.
