Vehicle load limit

The vehicle load limit is displayed on the tire and loading information label on the driver's door.

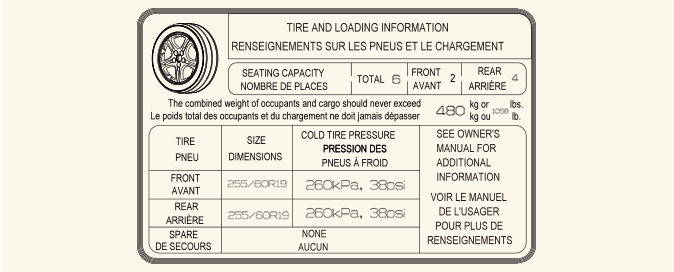

Tire and loading information label.

The label located on the driver's side center pillar gives the original tire size, cold tire pressures recommended for your vehicle, the number of people that can be in your vehicle and vehicle capacity weight.

Vehicle capacity weight:

6 seats: 1,058 lbs. (480 kg)
7 seats: 1,235 lbs. (560 kg)

Vehicle capacity weight is the maximum combined weight of occupants and cargo. If your vehicle is equipped with a trailer, the maximum combined weight includes the tongue load.

Seating capacity:

Total

6 persons (Front seat: 2 persons, Rear seat: 4 persons)
7 persons (Front seat: 2 persons, Rear seat: 5 persons)

Seating capacity is the maximum number of occupants, including the driver, that your vehicle may carry.

The seating capacity may be reduced based upon the combined weight of all of the occupants and the weight of the cargo.

Do not overload the vehicle as there is a limit to the total weight that the vehicle can carry.

Towing capacity:

2WD
- With brake system: 907 kg (2,000 lbs.)
- Without brake system: 454 kg (1,000 lbs.)

AWD
- With brake system: 2,268 kg (5,000 lbs.)
- Without brake system: 750 kg (1,653 lbs.)

Towing capacity is the maximum trailer weight including its cargo weight, your vehicle can tow.

Cargo capacity:

The cargo capacity of your vehicle will increase or decrease depending on the weight and the number of occupants.

Contains Topics: Steps for Determining Correct Load Limit -; Certification label
