If you have a flat tire (with Tire Mobility Kit)
The Tire Mobility Kit (TMK) is a temporary fix to the tire and the tire should be inspected by an authorized Kia dealer as soon as possible.
-

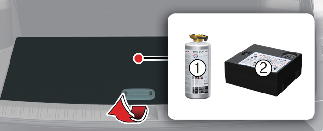

Sealant bottle
-
Compressor
The TMK is located in the cargo area or in a dedicated bag in the liftgate on the side trim.
For safe operation, carefully read and follow the instructions in this manual before use.
When two or more tires are flat, do not use the TMK because the supplied canister of sealant in the TMK is only enough sealant for one flat tire.
Tire Sidewall
Do not use the TMK to repair large punctures or damage to the tire sidewalls. In these situations, the tire will not be fully sealed and air will leak from the tire. This can result in tire failure.
Have your tire repaired as soon as possible. The tire may lose air pressure at any time after inflating with the TMK.
Speed with Temporary Fix
Do not exceed a speed of 80 km/h (50 mph) when driving with a tire sealed with the TMK.
While driving, if you experience any unusual vibration, ride disturbance, or noise, reduce your speed and drive with caution until you can safely pull off to the side of the road.
Introduction
With the TMK properly used, the vehicle can be operated even after experiencing a tire puncture.
The system of compressor and sealing compound effectively seals most punctures (from nails or similar objects) and reinflates the tire.
After you ensure that the tire is properly sealed, drive cautiously at a maximum speed of 80 km/h (50 mph) to reach a service station or tire dealer to replace the tires.
Air pressure loss may adversely affect tire performance.
For this reason, you should avoid abrupt steering or other driving maneuvers, especially if the vehicle is heavily loaded or a trailer is in use.
The TMK is not intended as a permanent tire repair method and is to be used for one tire only.
This instruction shows you step by step procedures to temporarily seal the puncture.
Read the section "Notes on the safe use of the Tire Mobility Kit" below.
Notes on the safe use of the Tire Mobility Kit
-
Park your car on the side of the road so that you can use the TMK away from moving traffic.
-
Be sure your vehicle cannot move. Even when on fairly level ground, always set the parking brake.
-
Only use inflating TMK for sealing/inflating vehicle tires. Only punctured areas located within the tread region of the tire can be sealed using the TMK.
-
Do not use on motorcycles, bicycles or any other type of tires.
-
When the tire and wheel are damaged, do not use TMK for your safety.
-
TMK may not be effective for tire damage larger than approximately 0.16 inches (4 mm).
Please contact the nearest Kia dealership if the tire cannot be made roadworthy with the Tire Mobility Kit.
-
Do not use the TMK if a tire is severely damaged by driving with flat tires or with insufficient air pressure.
-
Do not remove any foreign objects such as nails or screws that have penetrated the tire.
-
If the vehicle is outdoors, leave the vehicle ON (READY indicator ON). Otherwise operating the compressor may eventually drain the car battery.
-
Never leave the TMK unattended while it is being used.
-
Do not leave the compressor running for more than 10 minutes at a time or it may overheat.
-
Do not use the TMK if the ambient temperature is below -22 °F (-30 °C).
When done using a flat tire with the TMK, quickly remove the sealant from the tire pressure sensor and wheel. When installing the repaired tire and wheel, tighten the wheel nut to a torque value of 79~94 lbf·ft (11~13 kgf·m).
Sealant
-
Keep out of the reach of children.
-
Avoid contact with eyes.
-
Do not swallow.
Do not use the tire sealant if it is past the expiration date on the sealant container). This can increase the risk of tire failure.
-
If sealant gets on your skin, wash it with a lot of water. If skin irritation continues, visit a doctor.
-
If sealant gets in your eyes, lift up your eyelid and wash for at least 15 minutes. If eye irritation continues, visit a doctor.
-
If sealant is swallowed, wash the mouth and drink a lot of water. However, do not give anything to an unconscious person and see a doctor immediately.
Exposure to the sealant for a long time may cause damage to bodily tissues.
