How to register Digital Key 2 (Card Key)

To use the card key as a digital key 2, register the card key in your vehicle system in accordance with the following procedures.

1. Get in the vehicle with two smart keys.

   1) In-vehicle authentication pad (wireless charging pad)

2. Check if Use menu is activated.

   With the vehicle on, touch Setup → Vehicle → Digital Keys → NFC Card key → Use on the infotainment system.



   1. Digital Keys

   2. NFC Card key

   3. Use

   4. Save

3. With the vehicle on, place the card key on the charging pad and press the Save menu on the infotainment system screen. The saving process will begin automatically.



   A: Charging pad

4. When the digital key (card key) is saved, a message will appear on the infotainment system screen.

NOTICE

• The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

• When there is a digital key (card key) already saved in the vehicle, the Save menu is disabled. If you want to save a digital key again, refer to More Details and follow the deleting procedure first before saving a digital key.

• To register the digital key (card key), the two smart keys must be in the vehicle.

• The registered digital key (card key) cannot be used for another vehicle.

How to use the Digital Key 2 (Card key)

Card key touch control

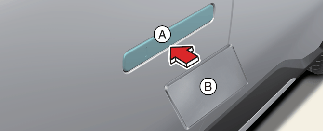

The driver can lock and unlock the door by touching the card key on the door handle. Also, the vehicle can be started by placing the card key on the charging pad.

A: Door handle authentication pad

B: Card key NFC antenna

Locking/Unlocking the doors

• If the driver touches the NFC antenna of the registered card key 2 on the driver's or passenger's door handle authentication pad (1) for more than 2 seconds, the door will lock or unlock.

• After locking the door, make sure to check its locked state. After unlocking the doors, the doors will automatically re-lock after 30 seconds unless a door is opened.

• It works only if the center of the NFC card key touches the NFC authentication area of the vehicle door handle.

NOTICE

When touching a smartphone NFC antenna to the center of the outside door handle authentication pad, the doors will not lock with a beep sound in following conditions:

• When the Smart Key is in the vehicle

• When the EV button is in ACC or ON position

• When one or more doors, hood or liftgate are open

Starting the vehicle

After placing your registered card key 2 on the charging pad, depress the brake pedal and press the EV button to start the vehicle.

• Once the vehicle is started, you can remove the card key from the pad.

For more details, refer to More Details

WARNING

The vehicle can be started when the registered card key is placed on the charging pad. Therefore, do not leave unsupervised children or people who are not aware of the system since it can result in serious injury or death. In addition, always have the registered card key with you to prevent vehicle theft when leaving the vehicle.

CAUTION

• The digital key (card key) may not work under the following conditions:

  • When the card key is not touching the center of the door handle authentication pad or the charging pad correctly.

  • If the card key overlaps NFC-enabled cards such as credit card or smart phone.

  • If the card key does not work, move the card key approximately 10 cm (4 inches) away from the authentication pad and then touch it again.

• The card key can be damaged by impact. If the card key is damaged, replace the card key with a new one and register it again.

• A damaged or lost card key is not covered by the warranty. The replacement cost is the owner’s responsibilty.

• Long-time exposure to high temperature may cause the card key to malfunction. Be careful not to expose the key to direct sunlight or high temperature.

• If the card key is left on thecharging pad while driving, it may cause malfunction of the card key. After starting the vehicle, make sure to separate the card key from the in-vehicle charging pad.

• If the card key is placed between the charging pad and the smartphone and the smartphone is wirelessly charging, it may cause the card key to malfunction. For example, charging the smartphone while the card key is attached to the back of the smartphone case.

How to delete Digital Key 2 (Card key)

1. Turn the vehicle on with the smart key and make sure to keep the smart key inside the vehicle during the card key deleting process.

2. With the vehicle on, place the card key on the in-vehicle authentication pad. With the vehicle on, touch Setup→ Vehicle → Digital key → NFC card key → Delete on the infotainment system.

   The Delete menu will be disabled if there is no card key saved.



   1. Digital key

   2. NFC card Key

   3. Use

   4. Delete

3. When the card key is deleted, a message will appear on the infotainment screen or cluster.

NOTICE

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.
