Replacing the climate control air filter

Operation

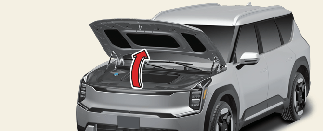

  1. Open the hood.

  2. Remove the cover by pulling the upper part of the cover. Remove the climate control air filter case (2) by pulling out left side of the cover (1).

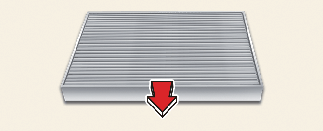

  3. Replace the climate control air filter (3).

  4. Reassemble in reverse order of disassembly.

NOTICE

When replacing the climate control air filter, install it properly. Otherwise, the system may produce noise and its effectiveness may be reduced.
