LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Mode

Trip Computer

Turn By Turn (TBT)*

Driving Assist

User Settings

Master warning

Up/Down

Fuel Economy

Route Guidance

SCC

Head-up display

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Accumulated Info

Destination Info

LKA

Driver Assistance

Drive Info

LFA

Door

DAW

Lights

Transmission Temperature

TPMS

Convenience

Service Interval

Other features

Language

Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

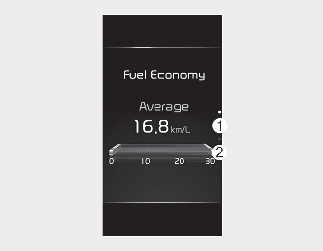

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

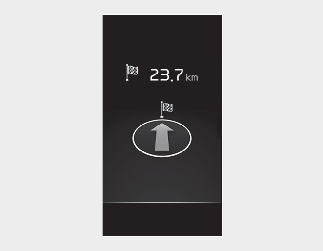

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

  • Smart Cruise Control (if equipped)

  • Lane Safety system (if equipped)

  • Driver Attention Warning (if equipped)

  • Tire pressure

* For more details, refer to each system information in More Details.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

  • LED headlamp malfunction (if equipped)

  • Lamp malfunction

  • High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

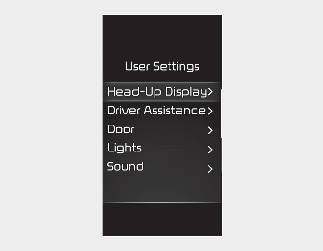

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

  1. Head-up display

  2. Driver Assistance

  3. Door

  4. Lights

  5. Sound

  6. Convenience

  7. Service Interval

  8. Other features

  9. Language

  10. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)

Items

Explanation

Enable Head-up display

If this item is checked, Head-Up Display will be activated.

Display Height

Adjust the height (1~20) of the HUD image on the HUD screen.

Rotation

Adjust the degree (-5~+5) of the HUD rotation.

Brightness

Adjust the intensity (1~20) of the HUD brightness.
2. Driver Assistance (if equipped)

Items

Explanation

Warning Timing

  • Normal/Late

To select the Warning time

Warning Volume

  • High/Medium/ Low

To select the Warning volume

Driver Attention Warning

  • Inattentive Driving Warning

To select the function.

* For more details, refer to the More Details.

Forward Safety

To adjust Forward Collision-Avoidance Assist system.

  • Active Assist / Warning Only / Off

To select the functions.

Lane Safety

To adjust Lane Keeping Assist system.

  • Lane Keeping Assist / Lane Departure Warning / Off

To select the functions.

Blind-Spot Safety

  • Blind-Spot View

To activate or deactivate Blind-Spot View.

  • Safe Exit Assist

To activate or deactivate Safe Exit Assist.

For more details, refer to More Details.

  • Active assist

  • Warning only

  • Off

For more details, refer to More Details.

Parking safety

  • Surround View Monitor Auto On

  • Parking Distance Warning Auto ON

  • Rear Cross-Traffic Safety

To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist system.

  • Active Assist

  • Warning only

  • Off

For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Door

Items

Explanation

Auto Lock

  • Off: The auto door unlock operation will be canceled.

  • Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph)

  • Enable on Shift (if equipped with Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.)

Auto Unlock

  • Off: The auto door unlock operation will be canceled.

  • Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

  • On shift to P (if equipped with Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)

Smart Trunk with Auto Open

To activate or deactivate the smart trunk with Auto Open.

For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights

Items

Explanation

Ambient light

Settings of the ambient light.

One Touch Turn Signal

  • Off: The one touch turn signal function will be deactivated.

  • 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Headlight Delay

If this item is checked, the head lamp delay function will be activated.

High Beam Assist

If this item is checked, High Beam Assist system will be activated.

High Beam Assist: If this item is checked, High Beam Assist will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience

Items

Explanation

Welcome Mirror/Light

  • On door unlock / On driver approach

To select the welcome mirror/light function.

Wireless Charging System

  • If this item is checked, the wireless charging function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service interval

Items

Explanation

Enable Service Interval

If this item is checked, the Service Interval function will be activated.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

  • Service in: Displayed to inform the driver the remaining mileage and days to service.

  • Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

  • The battery cable is disconnected.

  • The battery is discharged.

7. Other features

Items

Explanation

Fuel Economy Auto Reset

  • Off: The average fuel economy will not reset.

  • After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.

Speedometer Unit

  • km/h or mphTo select the Speedometer unit.

Fuel Economy Unit

  • Km/L, L/100Km

    To select the Fuel economy unit.

For more details, refer to More Details.

Temperature Unit

  • °C/°F

To select the Temperature unit.

Tire Pressure Unit

  • psi, kPa, bar

To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Reset

Items

Explanation

Reset

You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.

9. Language

Items

Explanation

Language

To select language.
