The driver position memory system is provided to store and recall the following memory settings with a simple button operation.

• Driver’s seat position

• Outside rearview mirror position

• Head-Up Display (HUD) position and brightness (if equipped)

1. The ignition switch or ENGINE START/STOP button is in the ON position.

2. Adjust the driver’s seat position, outside rearview mirror position and head-up display position/brightness to the desired position.

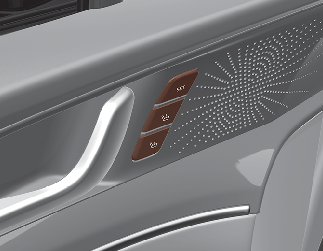

3. Press the SET button. The system will beep once and notify you “Press button to save settings”on the LCD display.

4. Press one of the memory buttons (1 or 2) within 4 seconds. The system will beep twice when the memory has been successfully stored.

5. “Settings 1 (or 2) saved” will appear on the LCD display.

1. The ignition switch or ENGINE START/STOP button is in the ON position.

2. Press the desired memory button (1 or 2). The system will beep once, and then the driver’s seat position, outside rearview mirror position and head-up display height/brightness will automatically adjust to the stored positions.

3. “Settings 1 (or 2) applied“ will appear on the LCD display.

If your vehicle is equipped with an infotainment system, you can learn how to setup on the website via QR code in the infotainment quick reference guide.

• While recalling the “1” memory position, pressing the SET or 1 button temporarily stops the adjustment of the recalled memory position. Pressing the 2 button recalls the “2” memory position.

• While recalling the “2” memory position, pressing the SET or 2 button temporarily stops the adjustment of the recalled memory position. Pressing the 1 button recalls the “1” memory position.

• While recalling the stored positions, pressing one of the control buttons for the driver’s seat, outside rearview mirror will cause the movement of that component to stop and move in the direction that the control button is pressed.

If the driver position memory system does not work properly, initialize the system as follows.

How to initialize:

1. Stop the vehicle and open the driver’s door with the ignition switch or ENGINE START/STOP button in the ON position and the vehicle shifted to P (Park).

2. Pull the driver’s seat forward as far as possible and have the seatback upright as much as possible using the driver’s seat forward/backward adjustment and seatback angle (recline) switches.

3. Push the SET button and seat forward movement switch for 2 seconds simultaneously.

Initialization in the process:

1. Initialization begins as the alarm sounds.

2. The seat and seatback will automatically move backwards. The alarm sound will continue while the system is in operation.

3. Initialization will be complete after the seat and seatback move to the center with an alarm sound. If, however, cases as follows occur, the initialization process will come to a stop and the alarm sound will stop as well.

• When pushing driving position memory system button

• When pushing driver’s seat height adjustment switch

• When shifting from P (Park) to other positions

• When driving speed exceeds 3 km/h

• When the driver’s door is closed

The system will move the driver’s seat automatically as follows:

Without smart key system

• It will move the driver’s seat rearward when the ignition key is removed and the driver’s door is opened.

• It will move the driver’s seat forward when the ignition switch is in the ACC or ON position.

With smart key system

• It will move the driver’s seat rearward when the ENGINE START/STOP button is in the OFF position and the driver’s door is opened.

• It will move the driver’s seat forward when the vehicle is turned ON or the driver’s door is closed with the smart key with you.

You can activate or deactivate the Easy Access Function from the User Settings Mode on the LCD display. For more details, refer to More Details. If your vehicle is equipped with an infotainment system, you can learn how to setup on the website via QR code in the infotainment quick reference guide.
