Replacing map lamp bulb (bulb/LED type)

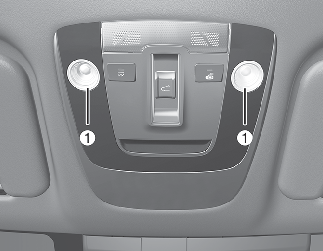

Bulb type
Prior to working on the interior lamps, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.
-
Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
-
Remove the bulb (1) by pulling it straight out.
-
Install a new bulb in the socket.
-
Align the lens cover tabs with the lamp housing notches and snap the lens into place.
Be careful not to dirty or damage the lens, lens tab, and plastic housings.

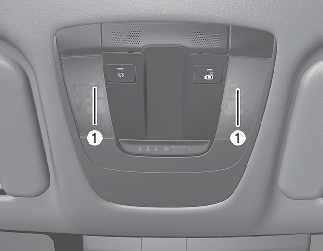

LED type
If the map lamp LED (1) does not operate, have your vehicle checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
The LED lamp cannot be replaced as a single unit because it is an integrated unit. The LED lamp has to be replaced with the unit.
A skilled technician should check or repair the map lamp (LED), for it may damage related parts of the vehicle.
