Automatic climate control system (if equipped)

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

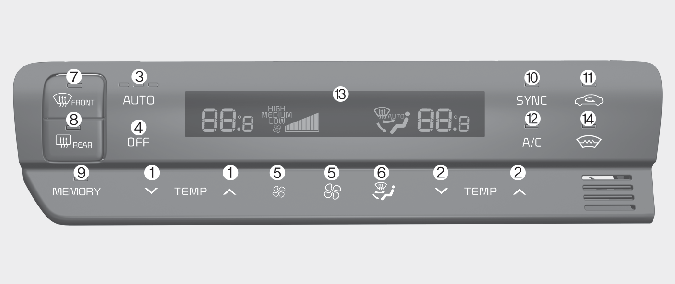

Type A

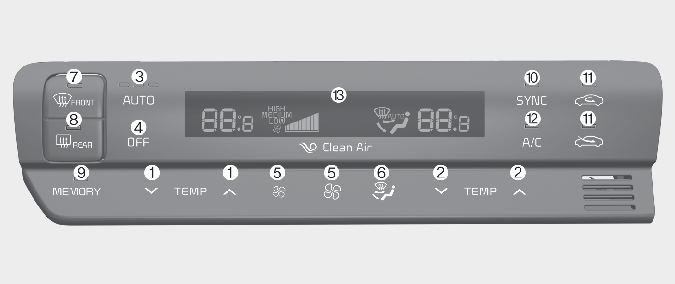

Type B

Driver’s temperature control button
Passenger’s temperature control button
AUTO (automatic control) button
OFF button
Fan speed control button
Mode selection button
Front windshield defroster button
Rear window defroster button
Memory button
SYNC button
Air intake control button
Air conditioning (A/C) button
Climate control display
Front glass heater (if equipped)

NOTICE

Operating the blower when the ignition switch or ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.

Contains Topics: Heating and air conditioning automatically; Heating and air conditioning manually; Automatic Air Ventilation; Active upon Washer Fluid Use; Sunroof inside air recirculation; Recirculation Mode; Auto Comfort Control (for driver's seat)
