LCD display modes

You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)*	Driving Assist	User Settings*	Information	Master warning
Up/Down	Fuel Economy	Route Guidance	Lane Keeping Assist/Smart Cruise Control/Lane Following Assist*	Head-up display*	Speedometer	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info		Driver Assistance	Tire Pressure
	Drive Info			Door
	Drive mode			Lights
				Convenience
			Driver Attention Warning*	Service Interval
				Other
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

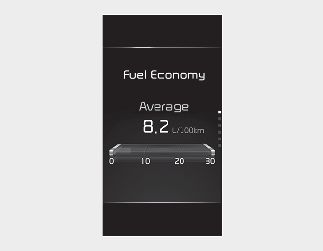

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

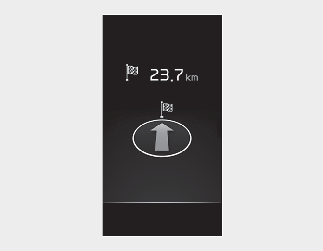

Turn By Turn (TBT) mode (if equipped)

This mode displays the state of the navigation.

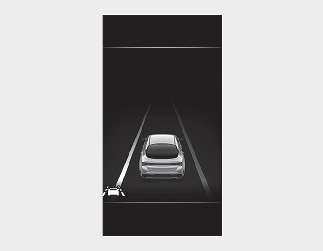

Driving Assist mode

This mode displays the state of:

Lane Keeping Assist (if equipped)

Smart Cruise Control (if equipped)

Lane Following Assist (if equipped)
Driver Attention Warning (if equipped)

* For more details, refer to each system information in More Details.

Information mode

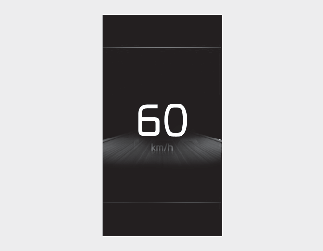

Digital speedometer

This digital speedometer display shows the speed of the vehicle.

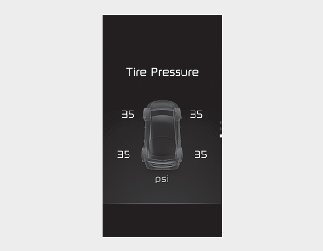

Tire Pressure (if equipped)

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

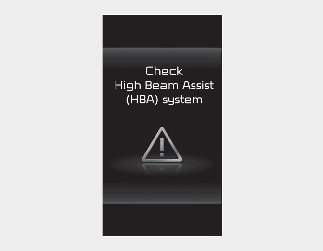

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction*
Forward Collision-Avoidance Assist radar blocked*
Blind-Spot Collision Warning malfunction*
Blind-Spot Collision Warning radar blocked*
High Beam Assist malfunction*
Smart Cruise Control malfunction*
Smart Cruise Control radar blocked*
LED headlamp malfunction*
Lamp malfunction, etc.

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

* : if equipped

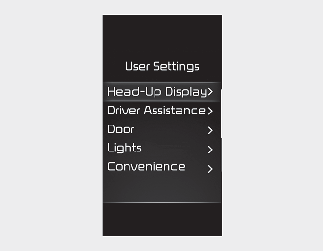

User Settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Door
Lights
Convenience
Service Interval
Other
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)

Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Content Selection	If below items are checked, the items will be activated. Turn by Turn/Traffic Signs/Driving Assist Info/Lane Safety Info/Blind-Spot Safety Info

* The information provided may differ depending on which systems are applicable to your vehicle.

2. Driver Assistance (if equipped)

Items	Explanation
Warning Timing	Normal/Late To select the Warning Timing.
Warning Volume	High/Medium/Low To select the Warning Volume.
Driver Attention Warning	Leading Vehicle Departure Alert Inattentive Driving Warning To select the function. * For more details, refer to More Details.
Forward Safety	Active Assist/Warning Only/Off To select the functions. * For more details, refer to More Details.
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off To select the functions. * For more details, refer to More Details.
Blind-Spot Safety	Blind-Spot View To select the function. * For more details, refer to More Details. Safe Exit Warning To select the function. * For more details, refer to More Details. Safe Exit Assist To select the function. * For more details, refer to More Details. Active Assist/Warning Only/Off To select the function. * For more details, refer to More Details.
Parking Safety	Surround View Monitor Auto ON To select the function. * For more details, refer to More Details. Parking Distance Warning Auto ON To select the function. * For more details, refer to More Details. Rear Cross-Traffic Safety To select the function. * For more details, refer to More Details. Rear Active Assist/Rear Warning Only/Off To select the function. * For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

3. Door (if equipped)

Items	Explanation
Auto Lock	Off: The auto door unlock operation will be canceled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on Shift : All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with engine ON, it is activated).
Auto Unlock	Off: The auto door unlock operation will be canceled. Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position or the ignition key is removed from the ignition switch. On shift to P : All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with engine ON, it is activated).
Smart Trunk	To activate or deactivate the smart trunk. * For more details, refer to More Details.

Items

Explanation

Auto Lock

Off: The auto door unlock operation will be canceled.
Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph)
Enable on Shift : All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with engine ON, it is activated).

Auto Unlock

Off: The auto door unlock operation will be canceled.
Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position or the ignition key is removed from the ignition switch.
On shift to P : All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with engine ON, it is activated).

Smart Trunk

To activate or deactivate the smart trunk.

* For more details, refer to More Details.

* The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights (if equipped)

Items	Explanation
Ambient Light Brightness	Off/Level 1,2,3,4 To adjust the brightness of the Ambient Light.
Ambient Light Color	Blue Flight/Peaceful Forest/Dreamy Purple/Aurora Violet/Orange To select the color of the Ambient Light.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated. * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience (if equipped)

Items	Explanation
Seat Easy Access	Off/Normal/Extended To select the seat movement.
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On door unlock / On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Wiper/Lights Display	If this item is checked, the wiper/lights display will be activated.
Icy Road Warning	If this item is checked, the icy road warning will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service interval

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

7. Other

Items	Explanation
Fuel Economy Auto Reset	Off: The average fuel economy will not reset. After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.
Speedometer Unit	km/h or MPH To select the Speedometer unit.
Fuel Economy Unit	L/100km, km/L To select the Fuel economy unit. * For more details, refer to More Details.
Temperature Unit	°C/°F To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Language

Items	Explanation
Language	To select language.

9. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
