Operating conditions

When the gear is shifted from R (Reverse) to N (Neutral) or D (Drive), the last set mode of front view function will be selected.

• Front view function will operate when the following conditions are satisfied:

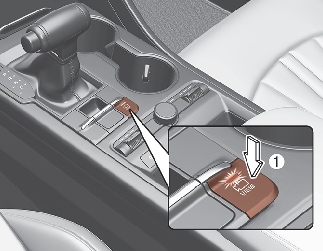

  • While the infotainment system screen is being displayed, press the Parking/View button (1) briefly when the gear is in D (Drive) or N (Neutral) and vehicle speed is below 15 km/h (9 mph).

• Surround View Monitor Auto On will operate when the following conditions are satisfied:

  • With ‘Driver Assistance → Parking Safety → Surround View Monitor Auto On’ selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive).

Off conditions

• Press the Parking/View button (1) again, the image will turn off.

• When vehicle speed is above 15 km/h (9 mph) and the gear is in D (Drive), Surround View Monitor will be turned off and the screen will be changed to the infotainment system screen with Surround View Monitor. The screen will not revert to the surround view screen even though the vehicle speed is below 15 km/h (19 mph) again.

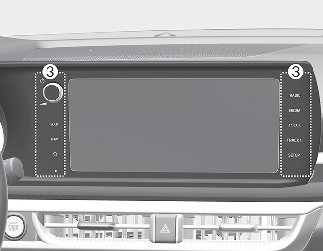

• Press one of the infotainment system button (3), the screen will change to the infotainment system screen.

Operating conditions

• Shift the gear to R (Reverse), the image will appear on the screen.

• Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen.

Off conditions

• The image cannot be turned off when the gear is in R (Reverse).

• Shift the gear from R (Reverse) to P (Park), the image will turn off.

• Press the Parking/View button (1) again while the gear is in P (Park) with the image on the screen.

Operating conditions

• The engine is running.

• The vehicle's speed is over 15 km/h (10 mph) and the Parking/View button is pressed (1, indicator ON).

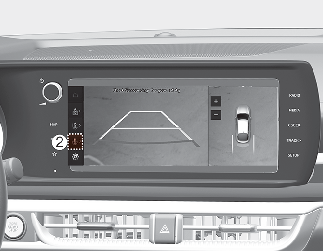

• The vehicle's speed is under 15 km/h (10 mph) and the icon (2) on the screen is pressed.

Off conditions

• The Parking/View button (1, indicator OFF) is pressed again.

• Other Surround View Monitor modes are selected from the screen (when vehicle speed is under 15 km/h (10 mph)).

• One of the infotainment system button (3) is pressed.

In case of driving over 15 km/h (10 mph) with Surround View Monitor operating:

• The rear image stays ON when Driving Rear View was on the screen.

• When one of the other Surround View Monitor view modes (front wide view, front top view, front side view) was on the screen, the screen turns OFF and switches to the previously displayed infotainment system screen.

• While driving under 15 km/h (10 mph) with the state that Driving Rear View function is ON, the rear image of Driving Rear View stays ON

• You can select other Surround View Monitor view modes (front wide view, front top view, front side view) by pressing the view mode on the infotainment system screen.

• When the vehicle is backing up, the rear image will be appear on the screen automatically regardless of the vehicle speed or the Parking/View button (1, indicator OFF) is pressed again.

• Other Surround View Monitor modes are selected from the screen (when vehicle speed is under 15 km/h (10 mph))

• One of the infotainment system button (3) is pressed.

• The Parking/View button (1) status.

• If the rear image of Driving Rear View was ON, the screen switches to the rear surround view.

• When the gear position is shifted from R (Reverse) to D (Drive), the screen of the previous Surround View Monitor mode is displayed. A warning indicator on the screen appears when:

  • The tailgate is opened

  • The driver/passenger's door is opened

  • The outer side view mirror is folded
