Trip information (trip computer)
The trip computer is a microcomputer- controlled driver information system that displays information related to driving.
Some driving information stored in the trip computer resets if the battery is disconnected.

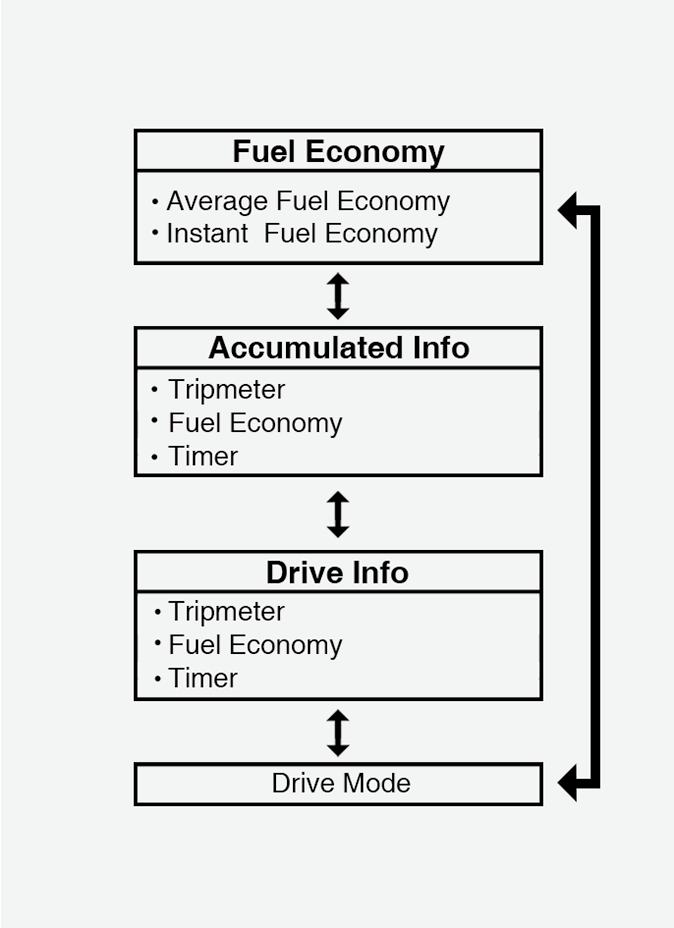

Trip Modes
To change the trip mode, scroll the toggle the switch (
/
) on the steering wheel.

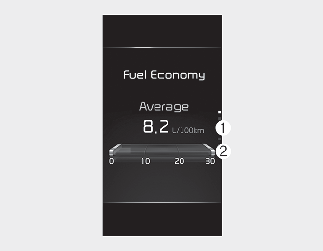

Fuel economy
-
The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.
-
Fuel economy range: 0~99.9 L/100km, km/L or MPG
-
-
The average fuel economy can be reset both manually and automatically.
To clear the average fuel economy manually, press the OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.
To make the average fuel economy be reset automatically whenever refueling, select the "Fuel Economy Auto Reset" mode in User Setting menu of the LCD display (Refer to More Details).
-
OFF - You may set to default manually by using the trip switch reset button.
-
After ignition - The vehicle will automatically set to default once 4 hours pass after the Ignition is in OFF.
-
After refueling - After refueling more than 6 liters and driving over 1 km/h, the vehicle will reset to default automatically.
The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 300 meters (0.19 miles) after the ignition switch or ENGINE START/STOP button is turned to ON.
-
This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 8 km/h (5 MPH).
-
Fuel economy range:
0~30 L/100km, km/L or 0~50 MPG
-
Accumulated driving information mode

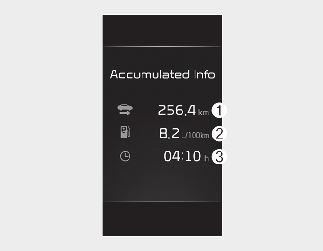

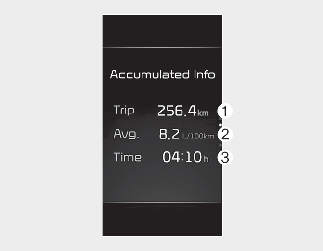

This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the total driving time (3).
-
Accumulated information is calculated after the vehicle has run for more than 300 meters.
-
If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
Drive Info display

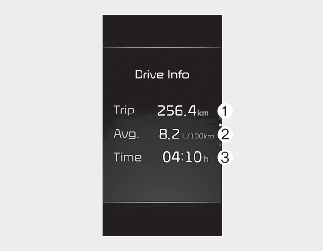

This display shows the trip distance (1), the average fuel efficiency (2), and the total driving time (3) information once per one ignition cycle.
-
Fuel efficiency is calculated after the vehicle has run for more than 300 meters.
-
If opening the driver's door after turning off the engine or 3 minutes passes after restarting the engine, Driving Information is reset.
-
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
Service mode
Service in
It calculates and displays when you need a scheduled maintenance service (mileage or days).
If the remaining mileage or time reaches 1,500 km (900 miles) or 30 days, "Service in" message is displayed for several seconds each time you set the ignition switch or ENGINE START/STOP button to the ON position.

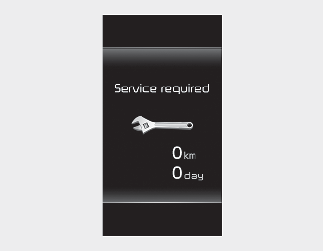

Service required
If you do not have your vehicle serviced according to the already inputted service interval, "Service required" message is displayed for several seconds each time you set the ignition switch or ENGINE START/STOP button to the ON position.
To reset the service interval to the mileage and days you inputted before:
-
Press the OK button (Reset) for more than 1 second.
If any of the following conditions occurs, the mileage and days may be incorrect.
-
The battery cable is disconnected.
-
The battery is discharged.
