(Information for use by vehicle users and CRS manufacturers)

Yes : Suitable for fitment of the designated category of CRS
No : Not suitable for fitment of the designated category of CRS
“-” : Not applicable
The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.

For RHD vehicle front passenger seat, please use information for the seating position number 3.

F: Forward facing

R: Rearward facing

CRS categories		Seating positions
		1	2		3	4 (3Point Belt)	5
		1	Airbag ON (or Activated)	Airbag Off (or Dectivated)	3	4 (3Point Belt)	5
Universal belted CRS	All mass groups	-	No	Yes^*1 F, R	Yes F, R	Yes F, R	Yes F, R
i-size CRS (If i-size symbol is not applied, No)	ISOFIX CRF (F2, F2X, R1, R2)	-	No	No	Yes F, R	-	Yes F, R
Carry-cot (ISOFIX lateral facing CRS)	ISOFIX CRF (L1, L2)	-	No	No	No	-	No
ISOFIX infant* CRS (* : ISOFIX baby CRS)	ISOFIX CRF (R1)	-	No	No	Yes R	-	Yes R
ISOFIX toddler CRS - small	ISOFIX CRF (F2,F2X, R2,R2X)	-	No	No	Yes F, R	-	Yes F, R
ISOFIX toddler CRS – large* (*: not booster seats)	ISOFIX CRF (F3, R3)	-	No	No	Yes F, R	-	Yes F, R
Booster Seat – reduced Width	ISOFIX CRF (B2)	-	No	No	Yes	No	Yes
Booster Seat – full Width	ISOFIX CRF (B3)	-	No	No	Yes	No	Yes

* 1. If cushion height adjuster function is equipped, cushion should be adjusted to the highest position.

otherwise (not equipped cushion height adjuster function ) seatback should be adjusted to upright position.

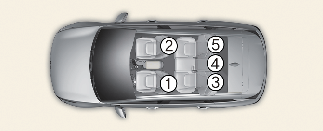

Seat Number Position in the vehicle
1	Front left
2	Front right
3	2nd row left
4	2nd row center
5	2nd row right

* If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed

* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
