Operation

1. Turn off the vehicle.

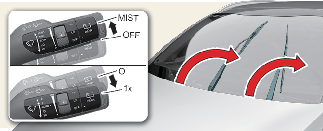

2. Move the wiper switch to the single wiping (MIST/1x) position.

3. Hold the wiper switch for more than 2 seconds.

4. Raise the wiper arm.

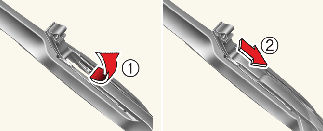

5. Lift the wiper blade clip up (1). Pull down the blade assembly and remove it (2).

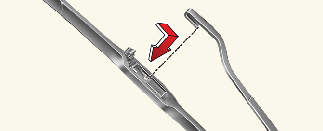

6. Install the new blade assembly.



7. Return the wiper arm on the windshield.

8. Turn the vehicle on and wiper arms will return to the normal operating position.
