Surround View Monitor settings
Camera settings

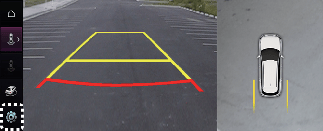

With the vehicle on, select the setup icon (
) on the screen or Driver Assistance → Parking Safety → Camera Settings from the Settings menu to change the Rear View Monitor settings.
-
Display Contents: To change the settings of Top view parking guidance, Parking guide in rear view, and Parking distance warning function.
-
Display Settings: To change the screen's brightness and contrast. (if equipped)

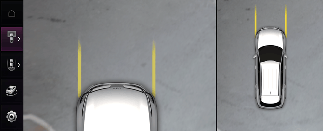

Top View Parking Guidance
Parking guidance is displayed on the right side of the Surround View Monitor screen when the Front or Rear Top View Parking Guidance is selected.
The horizontal scale of rear top view parking guide indicates the tailgate opening distance, 2 m (6.5 ft.) from the vehicle.

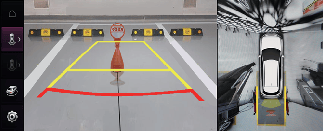

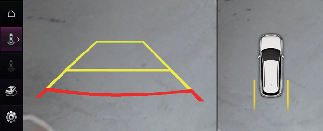

Rear View Parking Guidance
Rear view parking guidance is displayed in the rear view when the Parking guide in rear view is selected.
The horizontal guideline of the Rear View Parking Guidance shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
Parking Distance Warning
Parking distance warning is displayed on the right side of the Surround View Monitor top view screen when the Parking distance warning is selected.
Warning Methods
A: Driver Assistance
-
Warning Methods
The Warning Methods can be set with the vehicle on. Select Setup → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:
-
Parking Safety Priority: Lowers all other audio volumes when Surround View Monitor is active.
-
If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.
-
If the vehicle is restarted, Warning Methods will maintain the last setting.
-
The setting menu may not exist based on vehicle specification.
Surround View Monitor Auto On
With the vehicle on, select Driver Assistance → Parking Safety → Surround View Monitor Auto On from the Settings menu to use the function.
For more details on Surround View Monitor Auto On, refer to More Details.
