Reverse Parking Collision-Avoidance Assist settings

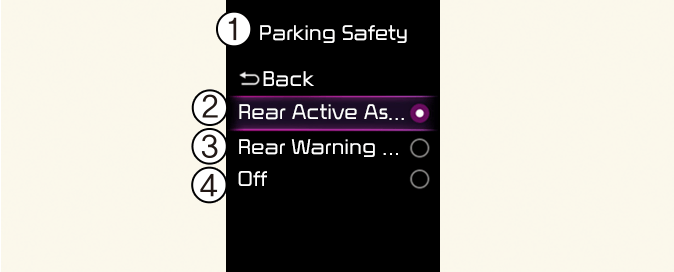

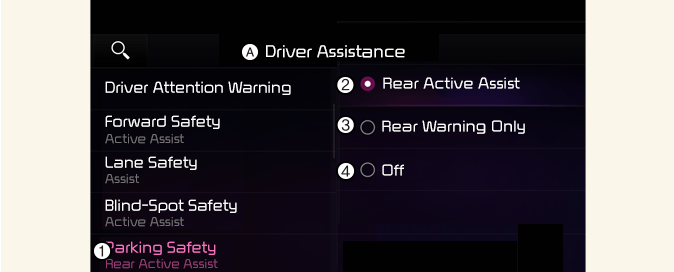

Parking Safety

A: Driver Assistance

  1. Parking Safety

  2. Rear Active Assist

  3. Rear Warning Only

  4. Off

With the vehicle on, select User SettingsDriver AssistanceParking Safety on the instrument cluster, or select SetupVehicleDriver AssistanceParking Safety on the Infotainment system to set whether or not to use each function.

  • Rear Active Assist: Reverse Parking Collision-Avoidance Assist will warn the driver and assist with braking when a collision with a pedestrian or an object is imminent.

  • Rear Warning Only: Reverse Parking Collision-Avoidance Assist will warn the driver when a collision with a pedestrian or an object is imminent. Braking will not be assisted.

  • Off: Reverse Parking Collision-Avoidance Assist will turn off.

Turning On/Off

Press and hold the Parking Safety () button for more than 2 seconds to turn Rear Active Assist or Rear Warning Only on or off.

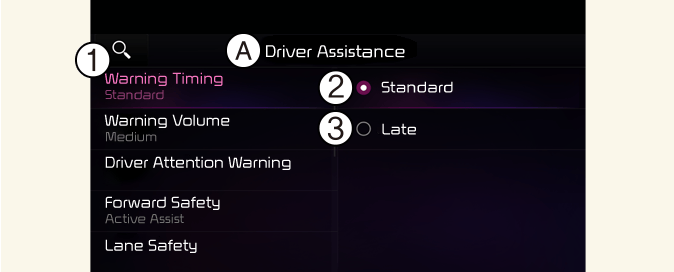

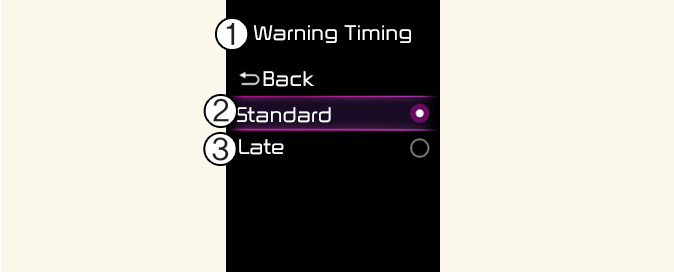

Warning timing

A: Driver Assistance

  1. Warning Timing

  2. Standard

  3. Late

With the vehicle on, select User SettingsDriver assistanceWarning timing on the instrument cluster, or select SetupVehicleDriver AssistanceWarning Timing on the Infotainment system to change the initial warning activation time for Forward Collision-Avoidance Assist.

  • Standard: Use in a normal driving environment. If the function operates too sensitively, set to the warning timing to Late.

  • Late: The warning timing will be slow.

NOTICE

If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.

Warning methods

A: Driver Assistance

  1. Warning Methods

The Warning Methods can be set with the vehicle on. Select User SettingsDriver AssistanceWarning Methods from the settings menu in the instrument cluster or SetupVehicleDriver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:

  • Warning Volume: Adjusts the volume of the warning sound. If you turn off the Warning Volume, for your safety, the function may warn you with a low volume.

  • Haptic Warning: Activate the steering wheel vibration warning. (if equipped)

NOTICE
  • If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.

  • If the vehicle is restarted, Warning Methods will maintain the last setting.

  • The setting menu may not exist based on vehicle specification.
