Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

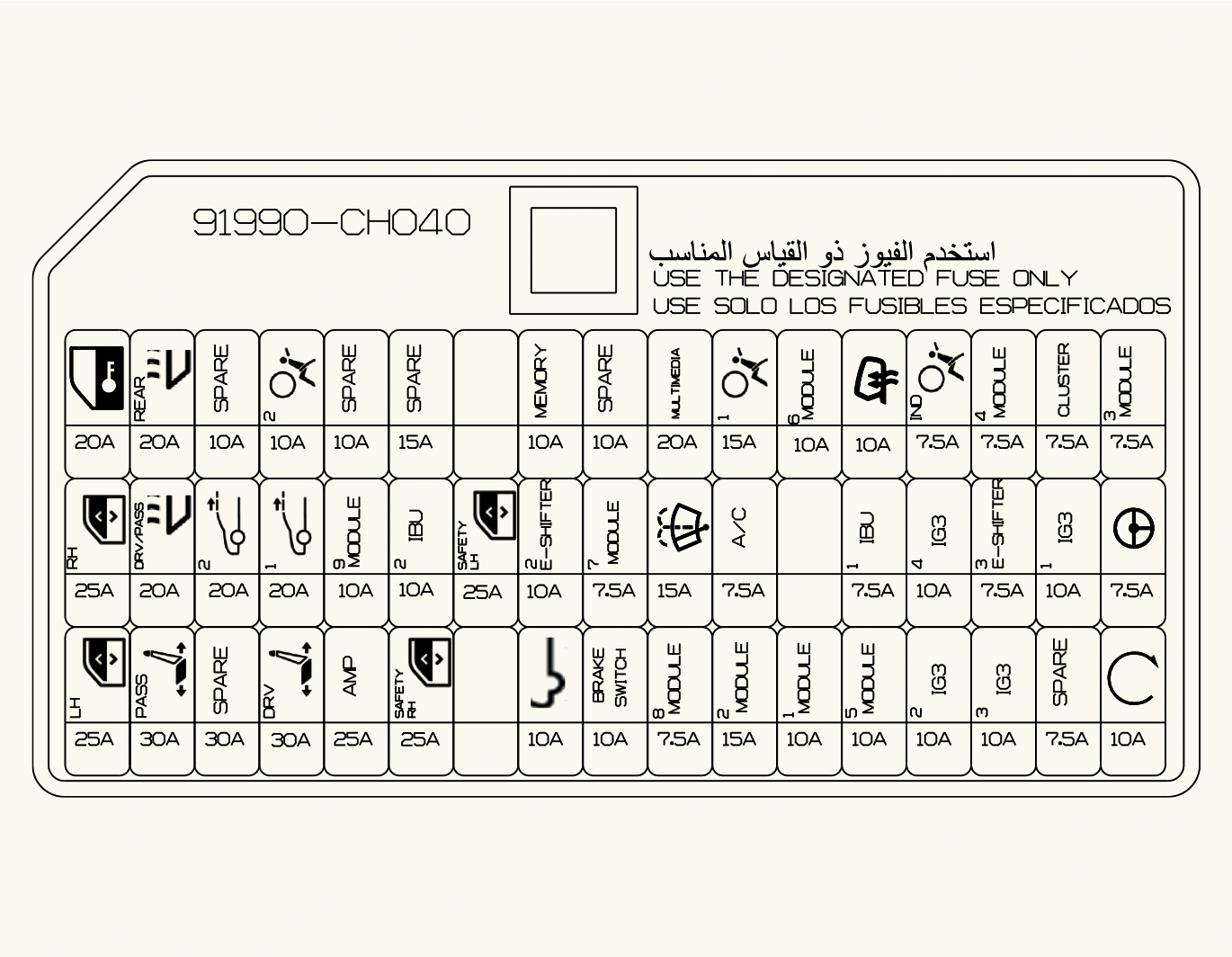

Driver's side fuse panel

ICU Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

AMP

25 A

AMP (Amplifier)

P/SEAT DRV

30 A

Driver Lumbar Support Switch, Driver Power Seat Switch, IMS (Integrated memory system) Control Module

P/WINDOW LH

25 A

Rear Power Window Switch (LHD), Rear Safety Power Window Module (LHD), Driver Safety Power Window Module (LHD), Passenger Power Window Switch (RHD), Passenger Safety Power Window Module (RHD)

P/SEAT PASS

30 A

Passenger Power Seat Switch

S/HEATER

(DRV/PASS)

20 A

Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

S/HEATER (REAR)

15 A

Rear Seat Warmer Control Module

P/WINDOW RH

25 A

Rear Power Window Switch (RHD), Rear Safety Power Window Module (RHD), Passenger Power Window Switch (LHD), Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD)

T/GATE

10 A

Tail Gate Relay

DR LOCK

20 A

Center Door Lock/Unlock Relay, Dead Lock Relay

MULTI MEDIA

20 A

Audio, Audio/Video & Navigation Head Unit

E-CALL

10 A

E-Call Unit

MEMORY

10 A

Driver/Passenger Power Outside Mirror, Instrument Cluster, Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Cluster, Crash Pad sw, Surround View Monitor

START

10 A

Burglar Alarm Relay, HPCU, IBU

E-SHIFTER3

7.5 A

SCU, Electronic Shift Dial

MODULE6

10 A

Console Switch, Drive Mode Switch

MODULE3

7.5 A

Overhead Console, Multifunction Switch, Stop Lamp Switch

A/BAG1

15 A

SRS (Supplemental Restraint System) Control Module

WASHER

15 A

Multifunction Switch

MODULE1

10 A

AMP (Amplifier), RSE Left Handle side/Right Handle side, IBU (Integrated Body Control Unit), Audio/Video & Navigation Head Unit, ADAS Parking ECU, E-Call Unit, Front USB Charge Connector Left Handle side/Right Handle side, Surround View Monitor Unit, Battery Management System (Hybrid)

MODULE9

10 A

Data Link Connector, Multifunction Switch, Hazard Switch, Rain sensor, Power Tailgate, IMS (integrated memory system) Control Module, Rain sensor, Front Air Conditioner Module

IBU1

7.5 A

IBU (Integrated Body Control Unit)

MODULE2

15 A

Front Wireless Charger Unit, Driver/Passenger Seat USB charger Connector

A/BAG IND

7.5 A

Instrument Cluster

MODULE8

7.5 A

Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module

IBU2

10 A

IBU (Integrated Body Control Unit)

MODULE4

10 A

IBU (integrated Body Control Unit, Surround View Monitor Unit, Electronic Control Suspension, All Wheel Drive system, Rear Corner Radar LH/RH, Crash Pad Switch, Front View Camera, Head Lamp Leveling Device, Virtual Engine Sound System

A/CON

7.5 A

Air Conditioner Control Module, Front/Rear A/C Control Switch, Engine Room Junction Block (PTC Heater #2 Relay, Blower Relay), Electronic A/C Compressor

A/BAG2

10 A

SRS (Supplemental Restraint System) Control Module

CLUSTER

7.5 A

Instrument Cluster

MODULE5

10 A

E-Call Unit, Audio, Audio/Video & Navigation Head Unit, Data Link Connector, Front Air Conditioner Control Panel, Front Air Conditioner Control Module, Electro Chromic Mirror, 1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module

MODULE7

7.5 A

IBU (Integrated Body Control Unit)

BRAKE SWITCH

10 A

IBU (Integrated Body Control Unit), Stop Lamp Switch

MDPS

7.5 A

MDPS (Motor Driven Power Steering) Unit

* MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering).

SUNROOF1

20 A

Panorama Sunroof Unit (Glass)

SUNROOF2

20 A

Panorama Sunroof Unit (Blind)

ECS

15 A

Electronic Control Suspension Unit

HEATED MIRROR

10 A

Outside Heated Mirror

IG3 1

10 A

Cluster, On Board Charger Unit, Front Air Conditioner Control Module, Rear Air Conditioner Control Module, Audio/Video & Navigation Head Unit

IG3 2

10 A

Electronic Water Pump

IG3 3

10 A

Battery Management System

IG3 4

10 A

Shift By Control Unit, Hybrid Power Control Unit

P/WINDOW

SAFETY RH

25 A

LHD: Passenger Safety Power Window Module

RHD: Driver Safety Power Window Module

P/WINDOW

SAFETY LH

25 A

LHD: Driver Safety Power Window Module

RHD: Passenger Safety Power Window Module

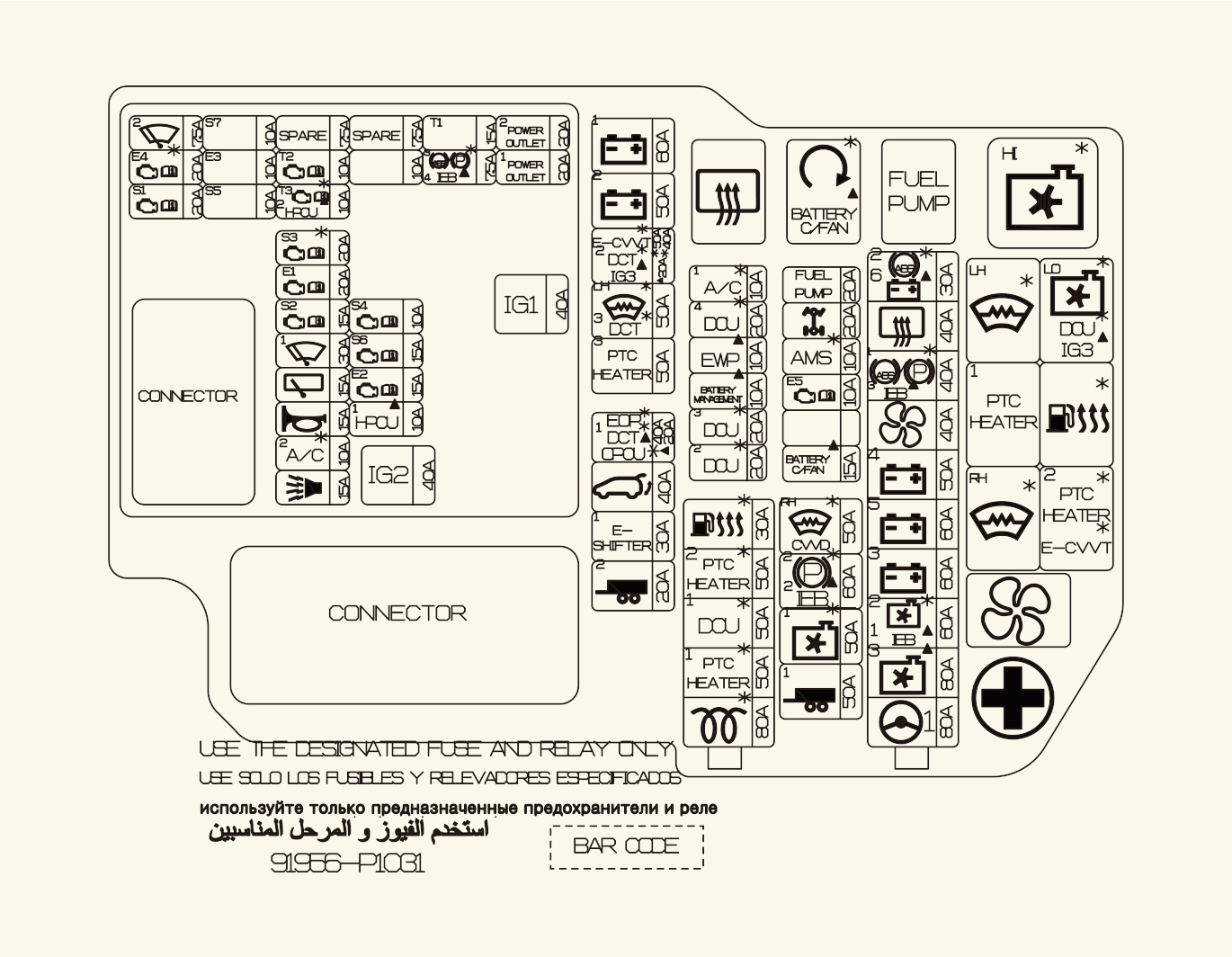

Engine compartment fuse panel

Engine Room Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

MULTI FUSE

C/FAN

80 A

Cooling Fan Motor

FUSE

PTC HEATER

50 A

Engine Room Junction Block (PTC Heater #1 Relay)

B+2

50 A

ICU Junction Block (Instrument Panel Module)

MULTI FUSE

MDPS 1

100 A

MDPS (Motor Driven Power Steering) Unit

* MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering).

REAR HEATED

40 A

Engine Room Junction Block (Rear Heated Relay)

FUSE

POWER TAILGATE

40 A

Power Tail Gate Unit

E-SHIFTER1

30 A

SCU

TRAILER1

50 A

Trailer Module

MULTI FUSE

B+3

60 A

ICU Junction Block (Instrument Panel Module)

FUSE

TRAILER2

20 A

Trailer Module

FUEL PUMP

20 A

Engine Room Junction Block (Fuel Pump Relay)

MULTI FUSE

BLOWER

40 A

Engine Room Junction Block (Blower Relay)

FUSE

B+4

50 A

ICU Junction Block (Fuse - AMP, LDC, S/HEATER FRT, P/WINDOW RH, S/FOLD RL)

B+1

60 A

ICU Junction Block (Long Term Load Latch Relay, Fuse - T/GATE, DR LOCK, S/HEATER RR, START, MODULE9, IBU2, A/BAG2, BRAKE SWITCH)

4WD

20 A

4WD (4 Wheel Drive) ECU (Engine Control Unit)

AMS

10 A

Battery Sensor

E-SHIFTER2

10 A

SCU, Electronic Shift Dial

MULTI FUSE

IEB2

60 A

Integrated Electric Brake Unit

IEB3

40 A

Integrated Electric Brake Unit

CVVD

50 A

Continuous Variable Valve Duration Actuator

FUSE

IEB1

60 A

Integrated Electric Brake Unit

FUEL LID

10 A

Fuel Lid (PHEV)

ECU4

10 A

ECM (Engine Control Module)

IG3

20 A

Ignition 3

CHARGER

15 A

Charger Unit (PHEV)

OPCU

20 A

Oil Pump Control Unit

BATTERY C/FAN

15 A

Battery Cooling Fan

HPCU1

10 A

Hybrid Power Control Unit

EWP2

10 A

Battery Electronic Water Pump (PHEV)

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

IG2

30 A

Engine Room Junction Block (Start Relay), PCB (Printed Circuit Board) Junction Block (IG2 Relay)

IG1

30 A

PCB (Printed Circuit Board) Junction Block (IG1 Relay, ACC Relay)

FRT WIPER2

7.5 A

IBU (Integrated Body Control Unit)

SENSOR1

20 A

Ignition Coil #1/#2/#3/#4

ECU2

15 A

ECM (Engine Control Module)/PCM (Power train Control Module)

SENSOR5

15 A

ECM (Engine Control Module)

SENSOR3

10 A

ECM (Engine Control Module)/PCM (Power train Control Module)

SENSOR2

15 A

Oxygen Sensor (Up/Down)

FRT WIPER1

30 A

Front Wiper Motor

RR WIPER

15 A

Rear Wiper Relay, Rear Wiper Motor

HORN

15 A

Horn Relay

TCU2

15 A

TCM (Transmission Control Module)

SENSOR4

10 A

Engine Room Junction Block (Fuel Pump Relay)

AFS

10 A

Intelligent Front Lighting system

FCA

10 A

Front Radar

MDPS 2

10 A

MDPS (Motor Driven Power Steering) Unit

* MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering).

ECU 3

10 A

ECM (Engine Control Module)

ACC

20 A

ICU Junction Block (Accessory Power)

IEB 4

10 A

Integrated Electric Brake Unit

BMS

10 A

Battery Management System

EWP 1

10 A

Engine Electronic Water Pump

OBC

10 A

On Board Charger Unit

SENSOR7

7.5 A

Heater Electronic Water Pump

ECU1

20 A

ECM (Engine Control Module)/PCM (Power train Control Module)

POWER OUTLET2

20 A

Front Power Outlet

POWER OUTLET1

20 A

Luggage Power Outlet

TCU1

15 A

PCM (Power train Control Module)

Relay

Refer to the following table for the relay type.

Relay Name

Symbol

TYPE

Fuel Pump Relay

MICRO

PTC Heater Relay

MICRO

Blower Relay

MICRO

Rear Heated Relay

MICRO

IG3 Relay

MICRO

Battery Cooling Fan Relay (HEV)

MICRO
