Tachometer

Indicates the approximate number of engine revolutions per minute (rpm).

For type B, select Setup → Vehicle → Cluster → Tachometer display to display tachometer based on drive mode.
Power gauge

Indicates whether the current driving condition is fuel efficient or not.
- CHARGE: energy made by the vehicle is being converted to electrical energy. (Regenerated energy)
- ECO: Shows that the vehicle is being driven in an Eco-friendly manner.
- POWER: Shows that the vehicle is exceeding the Eco-friendly range.

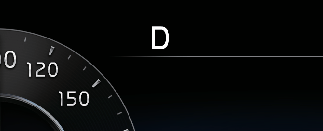

Automatic transmission shift indicator (if equipped)

This indicator displays which automatic transmission gear is selected.

Manual shift mode

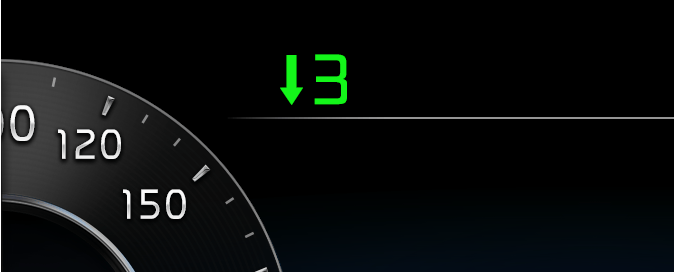

Automatic transmission shift indicator in manual shift mode (if equipped)

In the Manual shift mode, this indicator informs which gear is desired while driving to save fuel.

For example

▲3: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).
▼3: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th, 5th or 6th gear).

When the system is not working properly, the indicator is not displayed.

WARNING

Never remove the engine coolant reservoir cap when the engine is hot. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.
Running out of fuel can expose vehicle occupants to danger. You must stop and obtain additional fuel as soon as possible after a low fuel warning light () appears or when the gauge indicator comes close to the "E" level.

CAUTION

For full LCD type cluster (Type B), the information is displayed after getting information from a weather information provider via GPS. Depending on conditions of GPS reception, the information may be different from the current weather in your area. If no information is received via GPS (e.g., not subscribed to Kia Connect service), the weather and time will be displayed as 'sunny' and 'night' on the cluster.
Be careful while driving as dynamic themed animation effects can distract the driver and lead to unexpected accidents.
Do not operate the engine within the tachometer's red zone. This may cause severe engine damage.

NOTICE

According to the hybrid system gauge area, the EV indicator comes on or off.
- EV indicator ON: Vehicle is driven using the electric motor or the gasoline engine is stopped.
- EV indicator OFF: Vehicle is driven using the gasoline engine.
Never try to start the vehicle if the fuel tank is empty. In this condition, the engine cannot charge the high voltage battery of the hybrid system. If you try to start the vehicle when the fuel is empty, the high voltage battery will become discharged and be damaged.
The fuel tank capacity is given in More Details.
The fuel gauge is supplemented by a low fuel warning light (), which will appear when the fuel tank is nearly empty.
On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.
If the vehicle is not on level ground or the battery power has been interrupted, the distance to empty function may not operate correctly.
The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.
The trip computer may not register additional fuel if less than 6 liters (1.6 gallons) of fuel are added to the vehicle.
The fuel economy and distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
Use a clean soft microfiber cloth to gently wipe any finger prints off the screen.

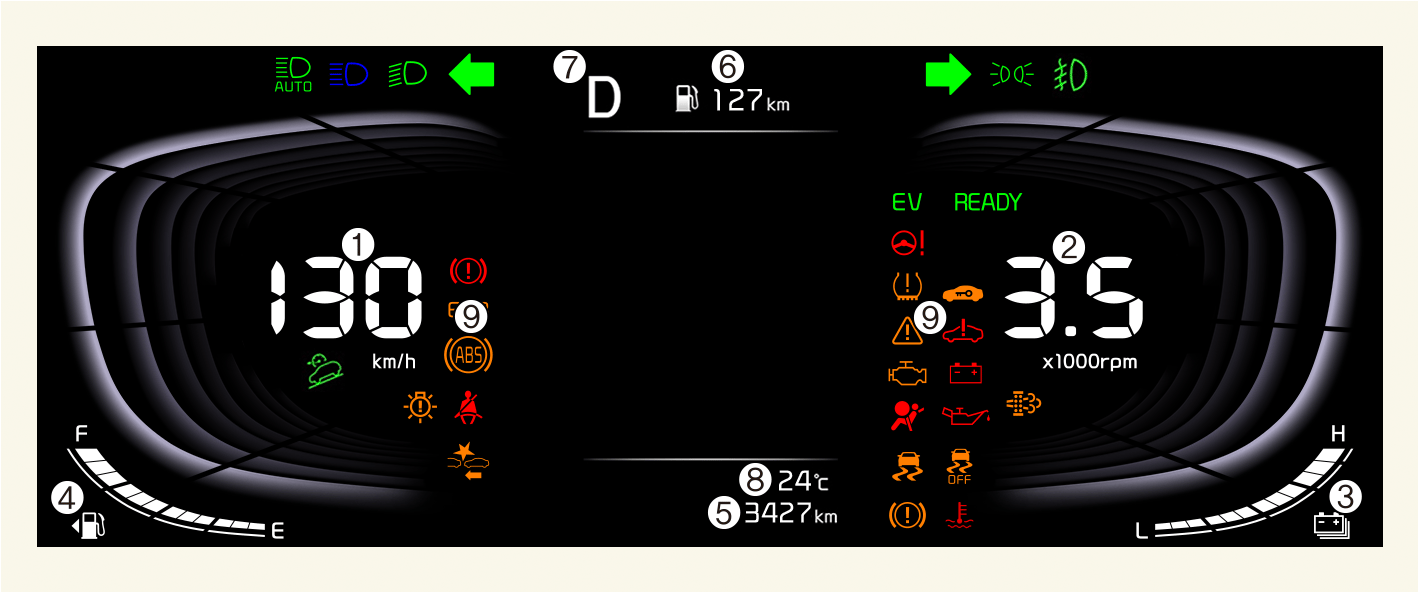

Instrument cluster
