Lane Keeping Assist settings

Setting features

Lane Safety

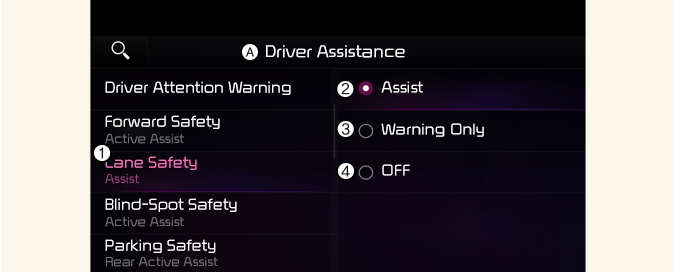

A: Driver Assistance

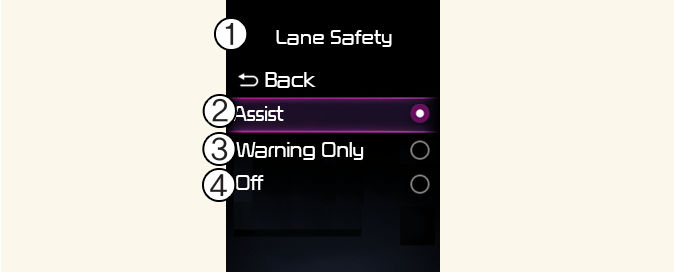

  1. Lane Safety

  2. Assist

  3. Warning Only

  4. Off

With the vehicle on, select User Settings → Driver Assistance → Lane Safety on the instrument cluster, or select Setup → Vehicle → Driver Assistance → Lane Safety on the Infotainment system to set whether or not to use each function.

  • Assist: Lane Keeping Assist will automatically assist the driver's steering when lane departure is detected to help prevent the vehicle from moving out of its lane.

  • Warning Only: Lane Keeping Assist will warn the driver with an audible warning and steering wheel vibration (if equipped) when lane departure is detected. The driver must steer the vehicle.

  • Off: Lane Keeping Assist will turn off. The indicator () light will turn off on the cluster.

WARNING

  • If Warning only is selected, steering is not assisted.

  • Lane Keeping Assist does not control the steering wheel when the vehicle is driven in the middle of the lane.

  • The driver should always be aware of the surroundings and steer the vehicle if Off is selected.

Turning Lane Keeping Assist On/Off

Type A

Whenever the vehicle is turned on, Lane Keeping Assist will always turn on. The grey () indicator light will appear on the cluster.

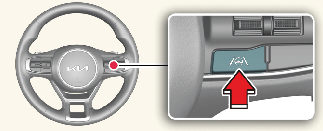

When Lane Keeping Assist is on, press and hold the Lane Driving Assist button to turn off the function.

Type B

With the vehicle on, press and hold the Lane Driving Assist button located on the steering wheel to turn on Lane Keeping Assist. The grey or green () indicator light will appear on the cluster.

Press and hold the button again to turn off the function.

If the vehicle is restarted, Lane Keeping Assist will maintain the last setting.

NOTICE

  • When Lane Keeping Assist is turned off with the Lane Driving Assist button, the Lane Safety setting also changes to Off.

  • If the vehicle is restarted, Lane Keeping Assist will maintain the last setting (This feature may apply depending on the region where the vehicle is sold.).

Warning Methods

A: Driver Assistance

  1. Warning Methods

The Warning Methods can be set with the vehicle on. Select User Settings → Driver Assistance → Warning Methods from the settings menu in the instrument cluster or Setup → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:

  • Warning Volume: Adjusts the volume of the warning sound.

  • Haptic Warning: Activate the steering wheel vibration warning. (if equipped)

  • Driving Safety Priority: Lowers all other audio volumes when the Driving Safety system sounds a warning.

NOTICE

  • If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.

  • If the vehicle is restarted, Warning Methods will maintain the last setting.

  • The setting menu may not exist based on vehicle specification.

  • The Warning Volume and Haptic Warning cannot be turned off at the same time. When one of the warning is turned off the other is activated.
