Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) (if equipped)

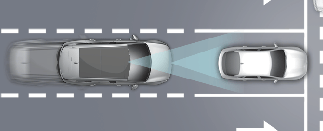

Basic function
Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and an audible warning, apply emergency braking.

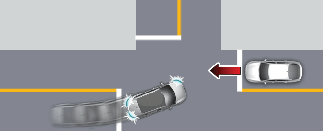

Junction Turning function
Junction Turning function will help avoid a collision with an oncoming vehicle in an adjacent lane when turning left (left-hand drive) or right (right-hand drive) at a crossroad with the turn signal on by applying emergency braking.

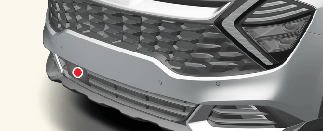

Detecting sensor
Refer to the picture above for the detailed location of the detecting sensors.
-
Never disassemble the detecting sensor or sensor assembly, or apply any impact on it.
-
If the detecting sensors have been replaced or repaired, have the vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.
-
Never install any accessories or stickers on the front windshield, or tint the front windshield.
-
Pay extreme caution to keep the front view camera dry.
-
Never place any reflective objects (i.e. white paper, mirror) over the dashboard.
-
Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.
-
Always keep the front radar and cover clean and free of dirt and debris.
Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.
-
If unnecessary force has been applied to the radar or around the radar, Forward Collision-Avoidance Assist may not properly operate even though a warning message does not appear on the cluster. Have the vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.
-
The genuine Kia front radar sensor covers are parts with quality and performance ensured. If arbitrarily applying paint on or changing the cover, Forward Collision-Avoidance Assist may not function properly.
Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.
