Adjusting steering wheel angle and height

Figure 1. Manual type
OLQ2A055047
Figure 2. Electric type
OLQ2A055022
OLQ2A055023
OLQ2A055024
Manual type

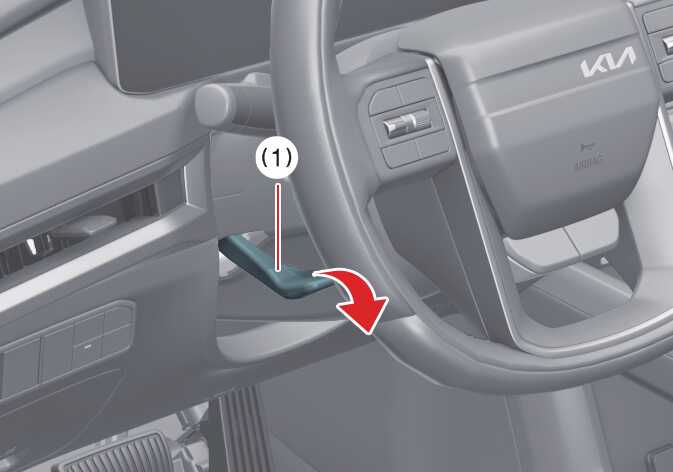

  1. To change the steering wheel angle, pull down the lock release lever (1).

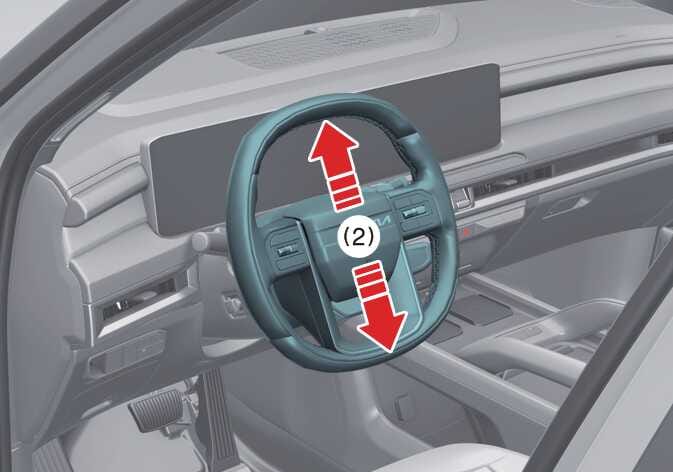

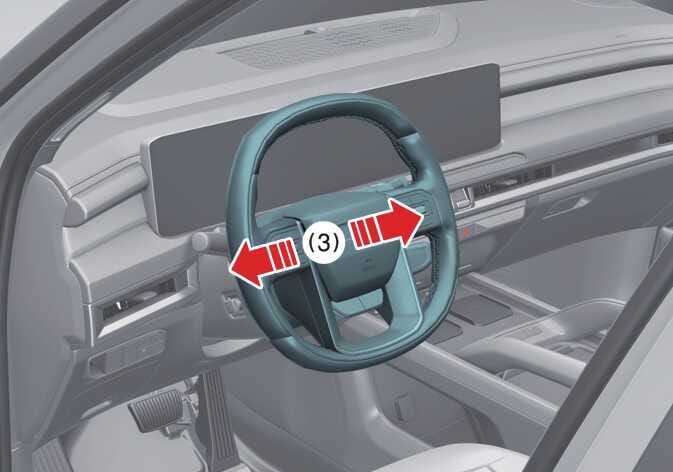

  2. Adjust the steering wheel to the desired angle (2) and distance forward or back (3).

    Move the steering wheel so that it points toward your chest, not toward your face. Make sure you can see the instrument panel warning lights and gauges. After adjusting, pull up the lock.

  3. Push the steering wheel both up and down to make sure it is locked into position.

  4. Adjust the steering wheel to the desired position before driving.

TIP

After adjustment, sometimes the lock-release lever may not lock the steering wheel. If this happens, adjust the steering wheel again to get it to lock. This is not a malfunction. It happens when 2 gears engage, and a small adjustment of either angle or height will correct the issue.

Electric type

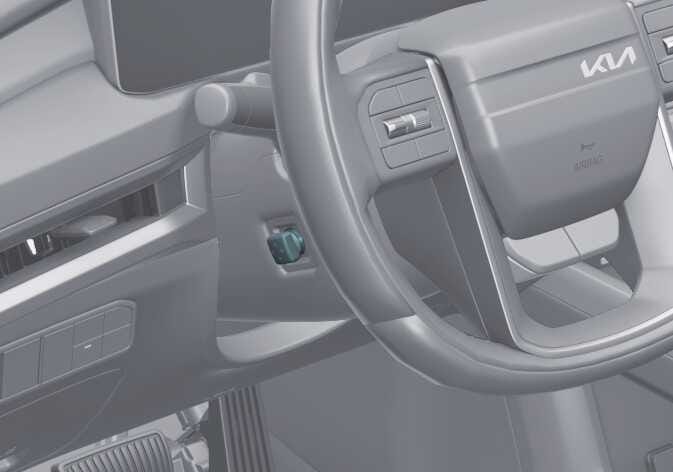

Adjust the steering wheel to the desired angle and distance forward/back with the switch.

WARNING

  • Never adjust the position of the steering wheel while driving.

  • While adjusting the steering wheel height, please do not push or pull it hard since the fixture can be damaged.
