Utility information view

Low pressure warning display

OLQ2A115031

  1. Low tire pressure

This warning message displays when the tire pressure is low and indicates which tire is low.

For more details, refer to Tire Pressure Monitoring System (TPMS).

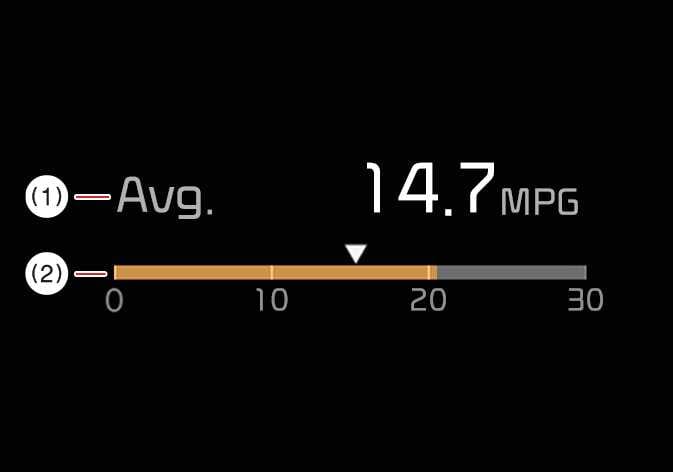

Fuel economy

This information is always displayed at the bottom center of the Full LCD information cluster.

OMQ4A035146

  1. Average fuel economy

  2. Instant fuel economy
Average fuel economy

  • Average fuel economy is calculated using the total driving distance and fuel consumption of the last trip.

    • Fuel economy range: 0–99.9 mpg or km/L, L/100 km

    TIP

    For more accurate calculation, the average fuel economy is not displayed if you do not drive the vehicle for more than 10 seconds or 0.03 miles (50 m) after you turn the ENGINE START/STOP button ON.

Instant fuel economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 6.2 mph (10 km/h).

    • Fuel economy range: 0.0–50.0 mpg or 0.0–30 km/L, L/100 km

NOTICE

Instant energy economy gauges may differ depending on the vehicle specifications.

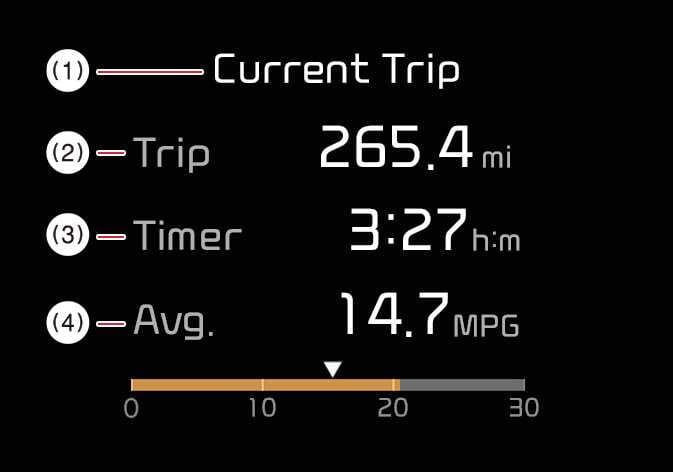

Drive Info display

The Drive Info display shows the trip distance, average fuel efficiency, and total driving time once per ignition cycle.

OMQ4A035121

  1. Current Trip

  2. Trip

  3. Timer

  4. Avg.

  • After the vehicle runs for more than 0.19 miles (300 m), the Fuel efficiency is calculated.

  • The information will automatically reset when the driver’s door is opened after the ignition is turned off, or approximately 3 minutes after the ignition is turned off.

  • If you press the “OK” button for more than approximately 1 second after the driving information is displayed, the information will be reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.

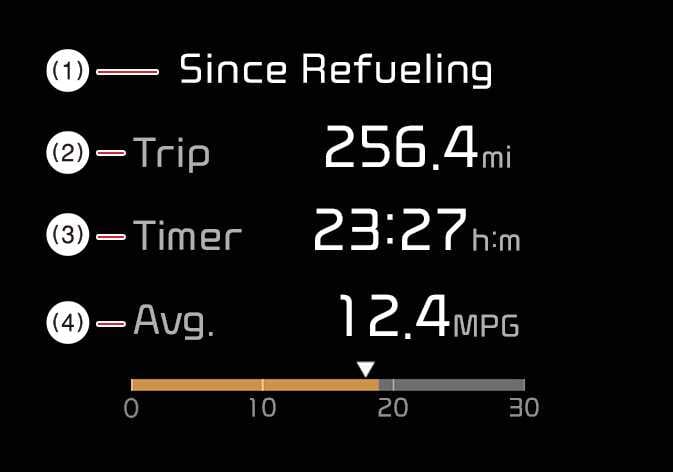

Information since refueling

OMQ4A035124

  1. Since Refueling

  2. Trip

  3. Timer

  4. Avg.

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

  • After the vehicle runs for more than 0.19 miles (300 m), the information since refueling is calculated.

  • If you press the “OK” button for more than 1 second after the information since refueling is displayed, the information is reset.

  • When driving after refueling, the information is automatically reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.

TIP

The vehicle must be driven for at least 0.19 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

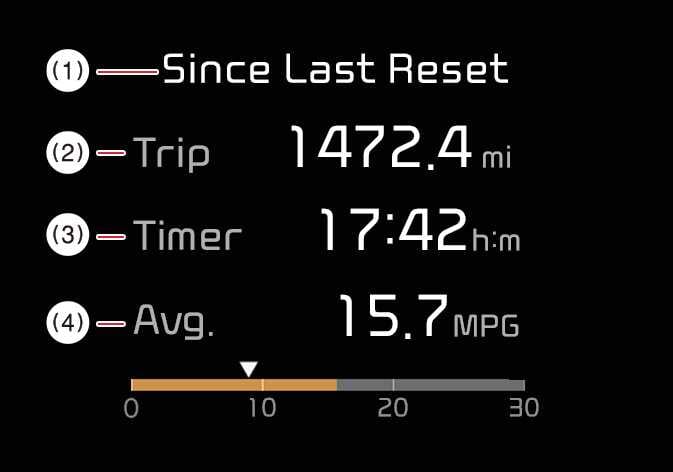

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

OMQ4A035123

  1. Since Last Reset

  2. Trip

  3. Timer

  4. Avg.

  • After the vehicle runs for more than 0.19 miles (300 m), the Accumulated information is calculated.

  • If you press the “OK” button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • Information is accumulated when the engine is running, even if the vehicle is not in motion.
