Camera cleaning system

A contaminated rear camera may cause the displayed image to appear blurred. Use the washer to clean the camera.

OLQ2A055016

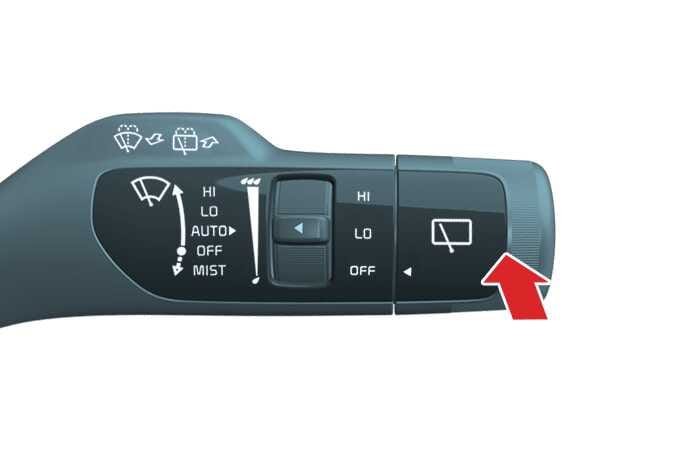

To spray washer fluid onto the camera, push the wiper lever toward the instrument cluster.

  • The rear window wiper will operate and washer fluid will be sprayed onto both the rear window and the camera.

  • If you push and hold the lever, the wipers will continue to operate and washer fluid will be sprayed repeatedly.

  • Release the lever once the camera is cleaned. The washer will stop spraying.

  • If the dirt on the camera lens is not removed, clean it with a soft cloth or a cotton swab moistened with water.

WARNING

  • Be careful not to clog the nozzle when washing or maintaining the vehicle.

    OLQ2A055018

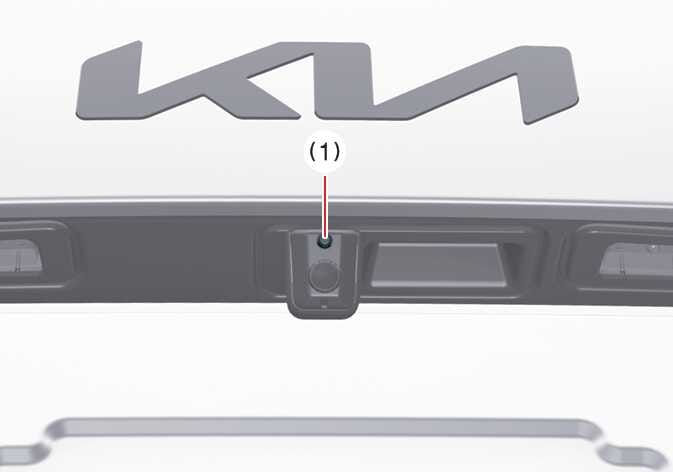

    1. Wide-rear view camera

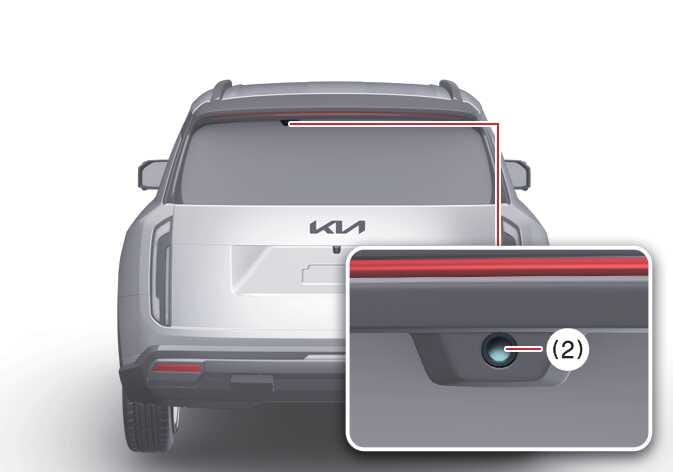

    2. Digital center mirror: (if equipped)
    OLQ2A055037

  • If the nozzle becomes contaminated, remove the dirt by wiping it with a soft cloth or a cotton swab moistened with water.
