Headrest (for rear seat)

The rear seats are equipped with headrests in all the seating positions for the occupant’s safety and comfort.

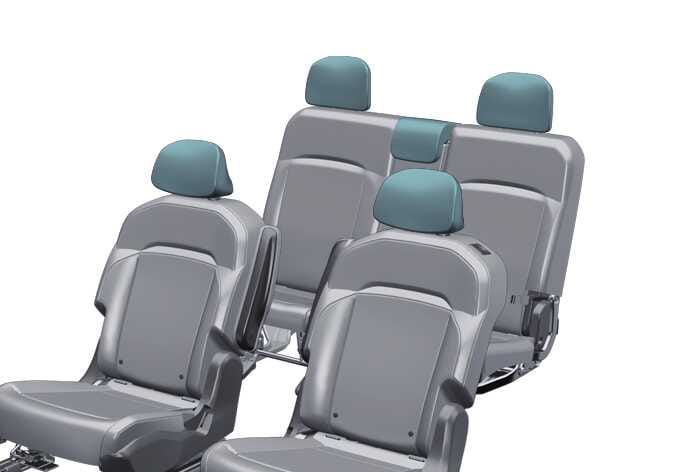

Figure 1. 7 passenger vehicle
OLQ2A065113

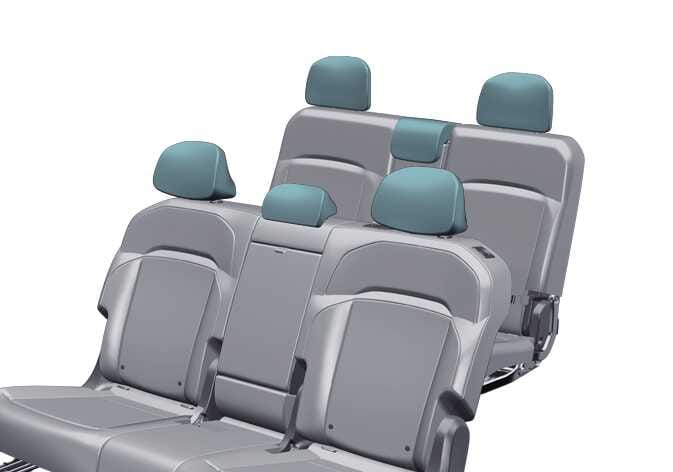

Figure 2. 8 passenger vehicle
OLQ2A065114

The headrest not only provides comfort for passengers, but also helps protect the head and neck in the event of a collision.

To maximize effectiveness in case of accidents, the headrest should be adjusted so the middle of the headrest is level with the center of gravity of an occupant’s head. Generally, the center of gravity of most people’s heads is at the same height as the top of their eyes.

Adjust the headrest as close to your head as possible. For this reason, we do not recommend using a cushion that holds your body away from the seatback.

Adjusting the height up and down (2nd row seat)

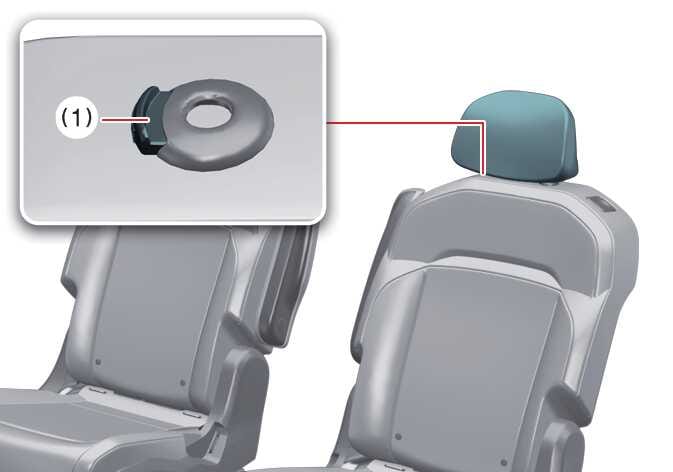

OLQ2A065025

To raise the headrest, pull it up to the desired position. To lower the headrest, push and hold the release button (1) on the headrest support and lower the headrest to the desired position.

Removal and reinstallation (2nd row seat)

OLQ2A065025

To remove the headrest, raise it as far as it can go, then press both release buttons (1) simultaneously, while pulling the headrest up.

To reinstall the headrest, put the headrest poles into the holes while pressing the release button (1). Then adjust the headrest to the appropriate height.

WARNING

To properly protect the occupants, make sure the headrest locks in position after adjusting it.

Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in a crash.

3rd row headrest

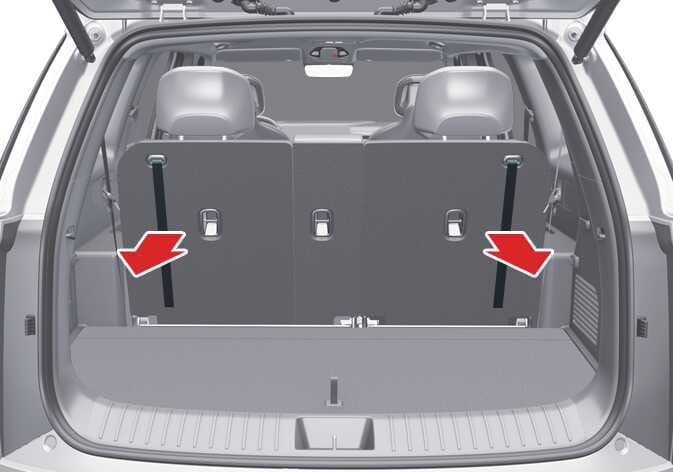

OLQ2A065015

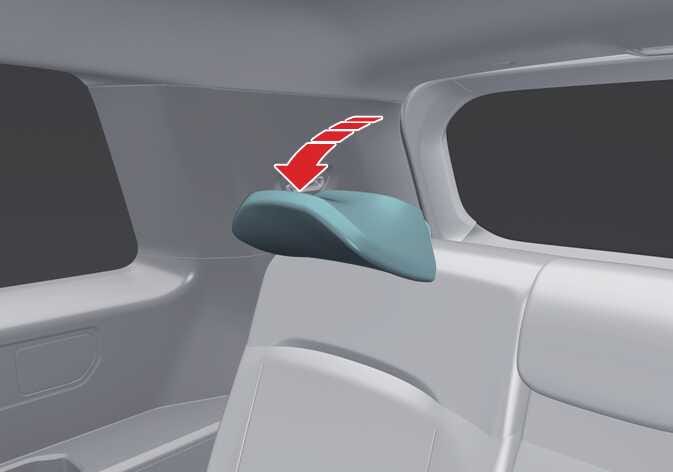

OLQ2A065026

The headrest will fold down automatically when you fold the seatback.

To fold the headrest manually, pull the strap.

To unfold the headrest, raise the headrest manually.

To raise the center seat headrest, pull it up to the desired position.

To lower the center seat headrest, push and hold the release button on the headrest support. Lower the headrest to the desired position.

Always be sure the headrest has locked into position after you return the seatback to an upright position.
