Energy flow

The hybrid system informs you about energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

The hybrid system informs you of its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

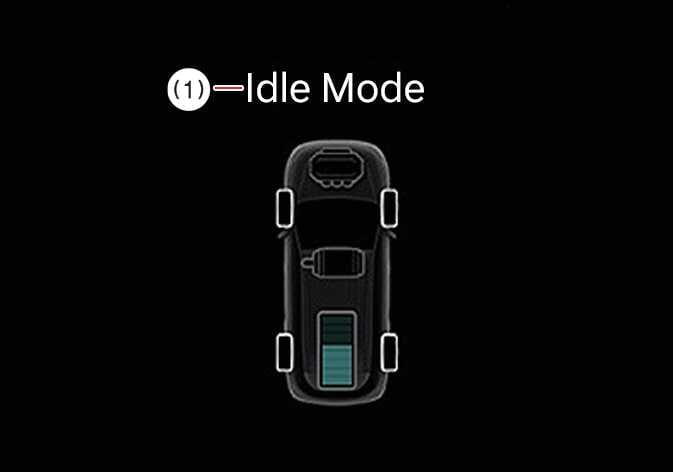

Vehicle stop

OLQ2AH005021

  1. Idle Mode

The vehicle is stopped (no energy flow).

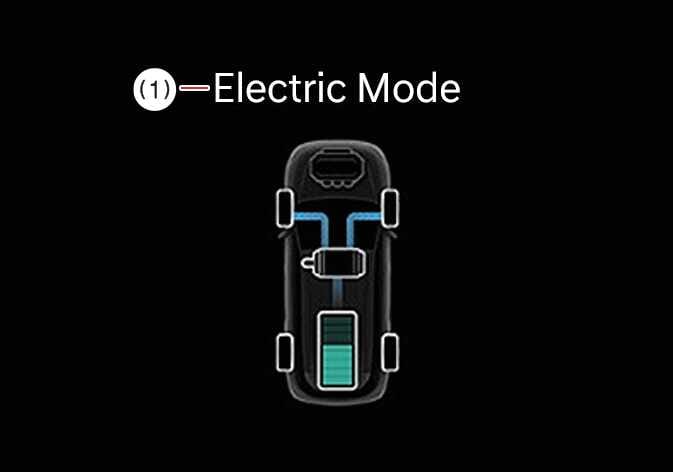

EV propulsion

OLQ2AH005022

  1. Electric Mode

Only the motor is powering the vehicle (battery to wheel).

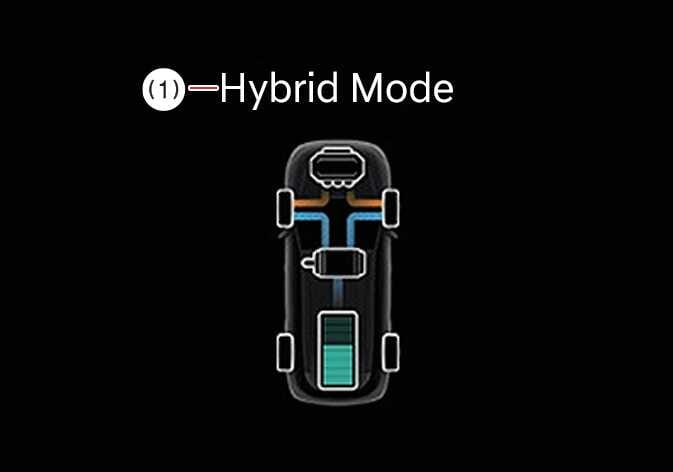

Power assist

OLQ2AH005023

  1. Hybrid Mode

Both the motor and the engine power are powering the vehicle (battery & engine to wheel).

Engine only propulsion

OLQ2AH005024

  1. Engine Mode

Only the engine is powering the vehicle (engine to wheel).

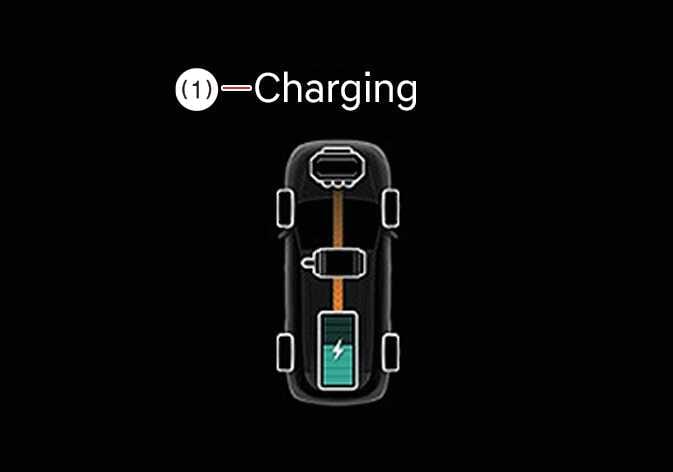

Engine generation

OLQ2AH005025

  1. Charging

When you stop the vehicle, the engine charges the high voltage battery (engine to battery).

Regeneration

OLQ2AH005026

  1. Charging

The regenerative braking system charges the high voltage battery (wheel to battery).

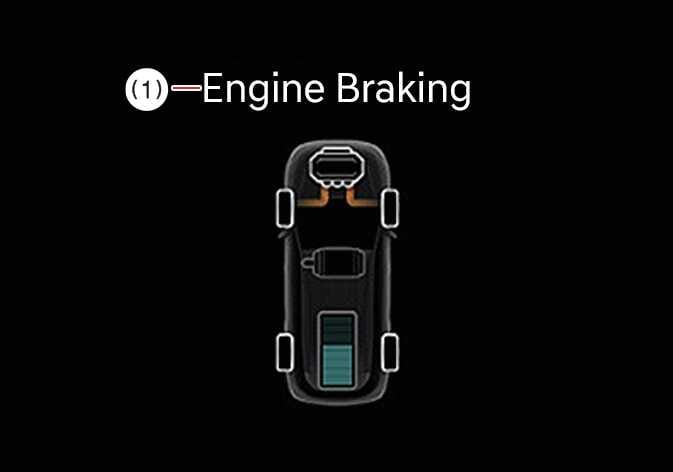

Engine brake

OLQ2AH005027

  1. Engine Braking

Engine braking slows down the vehicle (wheel to engine).

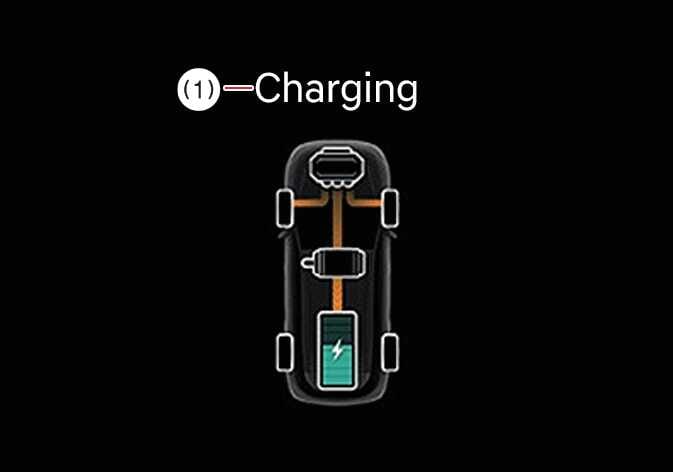

Power reserve

OLQ2AH005028

  1. Charging

The engine simultaneously powers the vehicle and charges the high voltage battery (engine to wheel & battery).

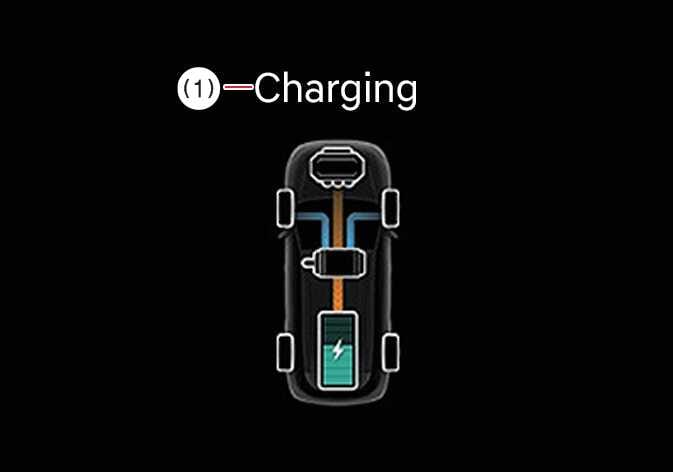

Engine generation/motor drive

OLQ2AH005029

  1. Charging

The engine charges the high voltage battery. The motor powers the vehicle (engine to battery to wheel).

Engine generation/regeneration

OLQ2AH005029

  1. Charging

The engine and the regenerative braking system charge the high voltage battery (engine & wheel to battery).

Engine brake/regeneration

OLQ2AH005029

  1. Charging

Engine braking simultaneously slows down the vehicle and charges the high voltage battery (wheel to engine & battery).
