Automatic heating and air conditioning (A/C) operation

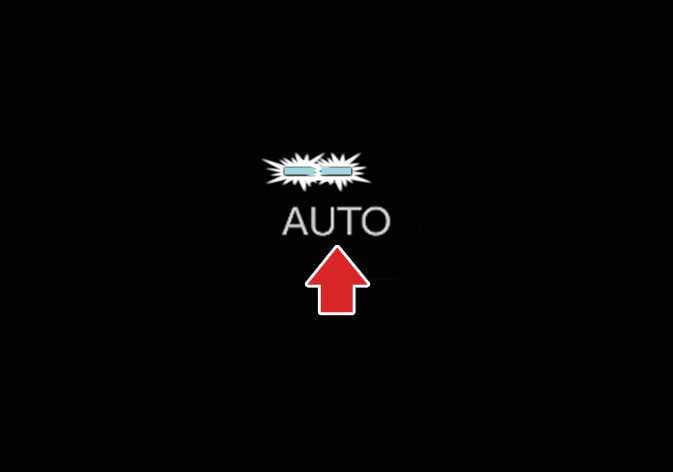

OCL4M035324N

  1. Tap the AUTO icon.

    The modes, fan speeds, air intake, and air-conditioning are controlled automatically by setting the temperature.

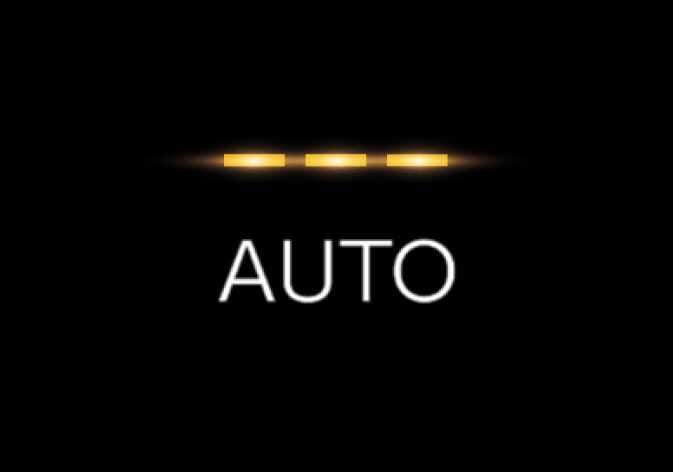

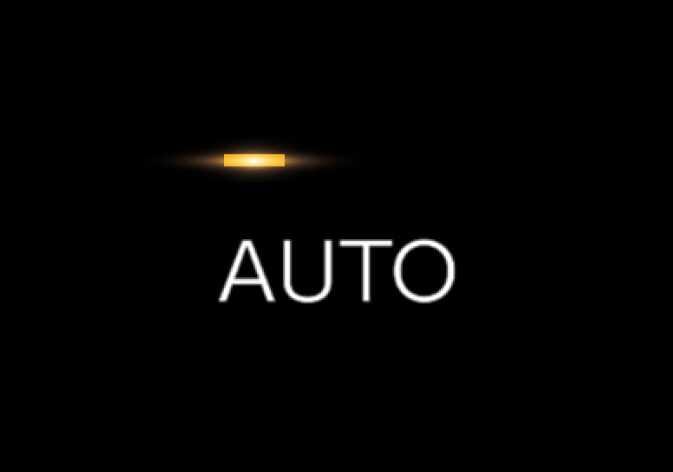

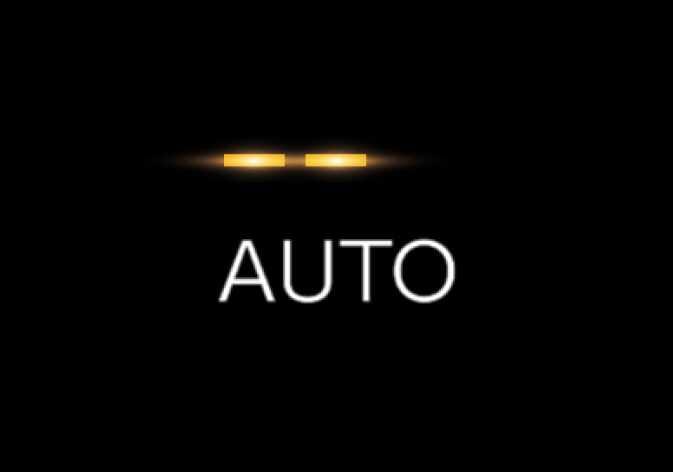

    Level

    Indicator

    LCD Display

    Air flow

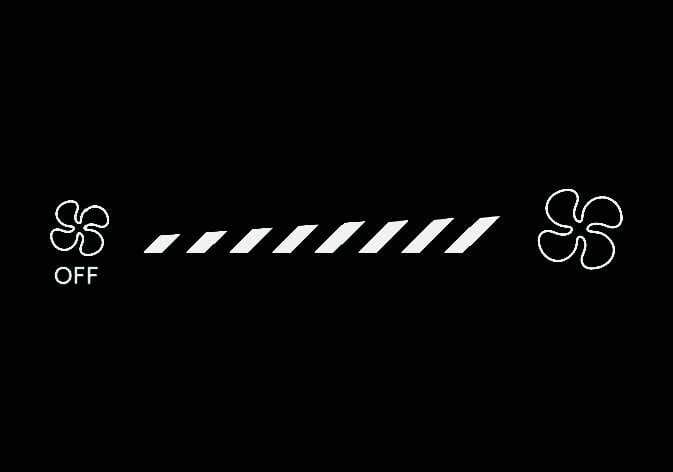

    High

    2–8

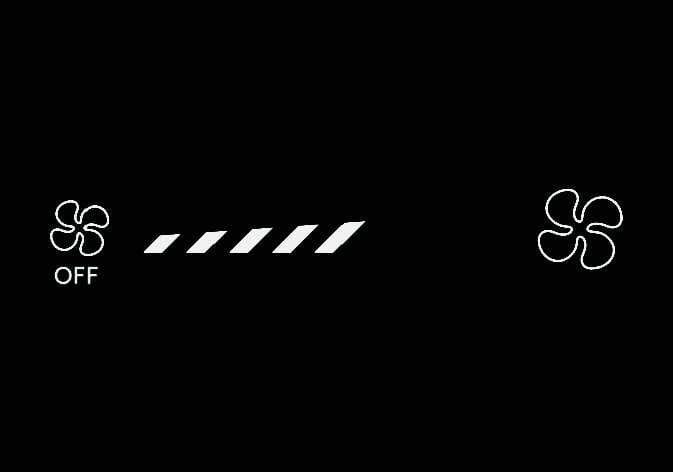

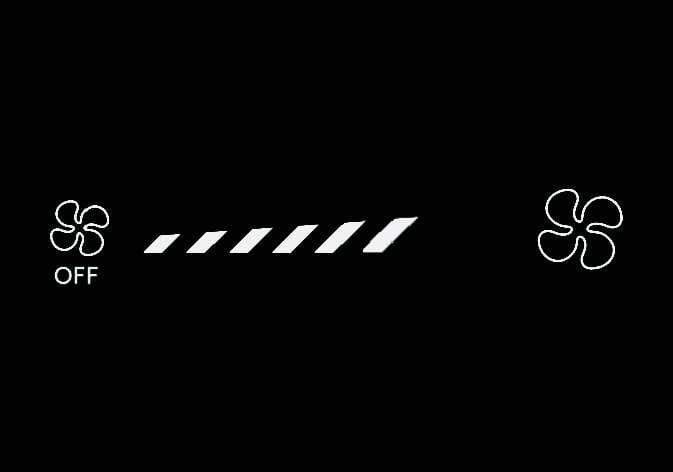

    Medium

    1–6

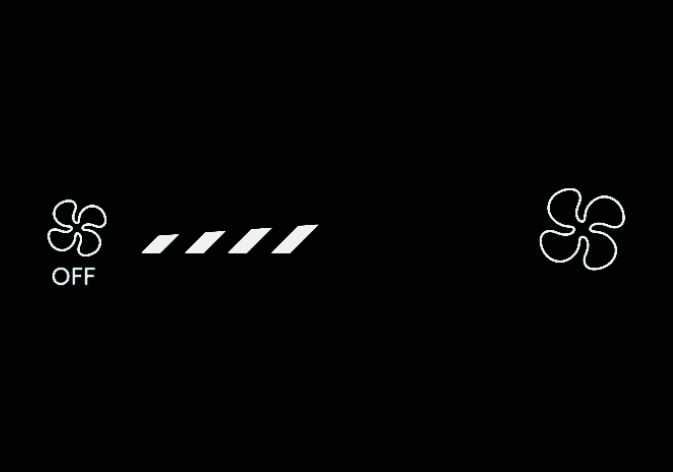

    Low

    1–4

  2. Press the temperature control lever to the desired temperature.

TIP

  • To turn the automatic operation off, press any of the following buttons:

    • Mode selection lever/icon

    • Air conditioning icon

    • Front windshield defroster icon

      Press the icon again to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.

    • Fan speed control lever

    The selected function is controlled manually, while other functions operate automatically.

  • To improve the effectiveness of the climate control, press the AUTO icon and set the temperature to 72 °F (22 °C).

TIP

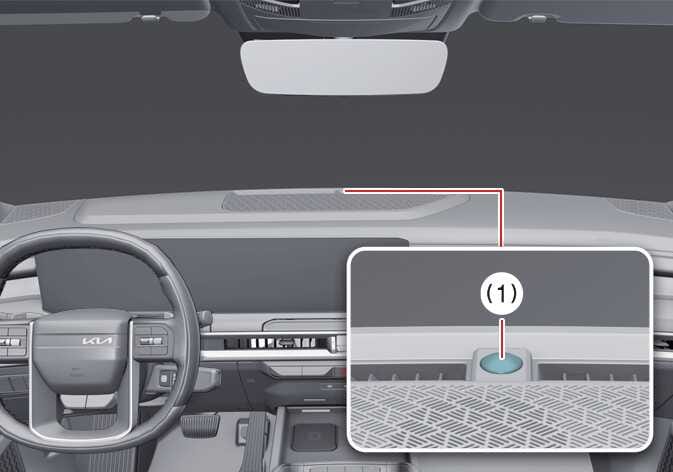

OLQ2A055017

For better control of the heating and cooling system, never place anything over the sensor (1) located on the instrument panel.
