Foldable luggage table

Foldable luggage table provides additional place to put drinks or measure items.

OLQ2A085059
OLQ2A085052

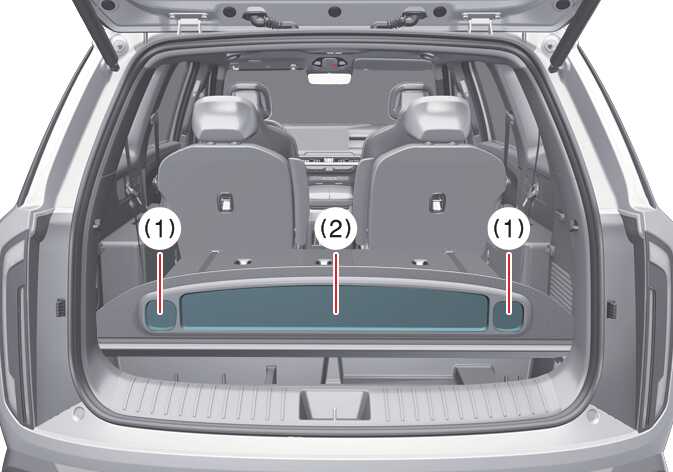

  1. Cup guide

  2. Measurement guide

Use the cup guide to put drinks on the table, and the measurement guide (cm, inches) to measure various items.

To use the luggage table:

  1. Grasp the handle on the top of the table and lift it.

  2. Fold the rear half of luggage board forward.

  3. Make sure the luggage table is fixed in place.

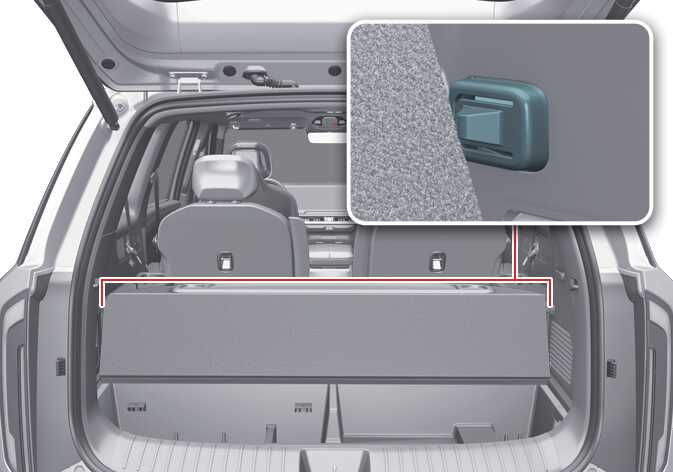

    The fixing points are located on the each corner of the luggage area.

    OLQ2A085053

  4. Put the luggage table down.

WARNING

  • Do not place uncovered cups with hot liquid on the table. If the hot liquid spills, you could be burned.

  • Do not put heavy, sharp, or breakable objects on the table. In an accident or when the vehicle moves, it may cause vehicle damage or bodily injury.

NOTE

  • To prevent spillage, keep your drinks sealed. If liquid spills, it may get into the vehicle’s electrical or electronic system and damage parts.

  • When cleaning spilled liquids, do not use heat to dry the luggage table. This may damage the luggage table.
