TERRAIN MODE

TERRAIN MODE

TERRAIN MODE helps the vehicle maintain its best driving performance by controlling all 4 wheels, the engine, the transmission, and vehicle braking based on current road conditions (such as snow, mud, sand, and so on).

Advantages of TERRAIN MODE

Improved stability when driving straight.
Improved driving performance around curves.
Enhanced stability in severe conditions, such as on wet and sandy roads.

Switching from/to TERRAIN MODE

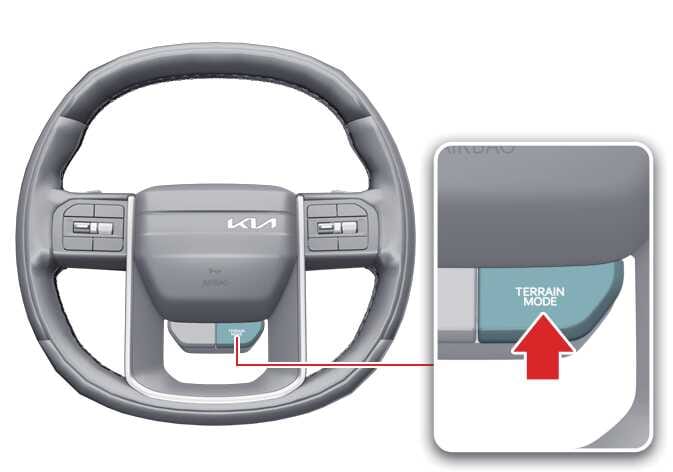

OLQ2A095008

You can switch from DRIVE MODE to TERRAIN MODE by pressing TERRAIN MODE mode button and then select SNOW, MUD, or SAND mode by pressing the TERRAIN MODE button.

If you press the DRIVE MODE mode button, the vehicle will go back to DRIVE MODE.

TIP

Even though you turned off the vehicle in TERRAIN MODE, DRIVE MODE will be set when you restart the vehicle.
