Steps for Determining Correct Load Limit—
- Locate the statement "The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
- Determine the combined weight of the driver and passengers that will be riding in your vehicle.
- Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
- The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400-750 (5x150) = 650 lbs.)
- Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4.
- If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.
Loose cargo
Do not travel with unsecured blunt objects in the passenger compartment of your vehicle (such as suitcases or unsecured child seats). These items may strike an occupant during a sudden stop or crash.

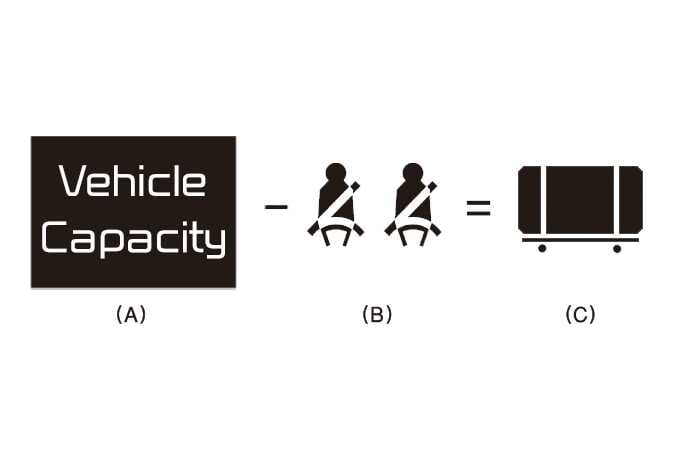

 KIAPB046 |
|
Item |
Description |
Total |
|---|---|---|
|
(A) |
Vehicle Capacity Weight |
849 lb (385 kg) |
|
(B) |
Subtract Occupant Weight 150 lb (68 kg)×2 |
300 lb (136 kg) |
|
(C) |
Available Cargo and Luggage Weight |
549 lb (249 kg) |

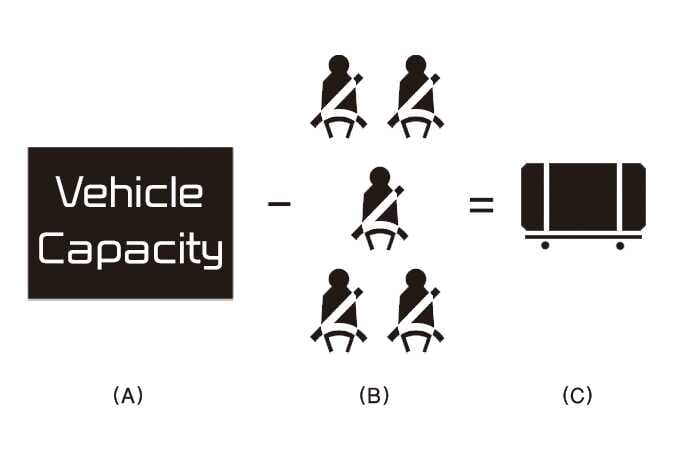

 KIAPB047 |
|
Item |
Description |
Total |
|---|---|---|
|
(A) |
Vehicle Capacity Weight |
849 lb (385 kg) |
|
(B) |
Subtract Occupant Weight 150 lb (68 kg)×5 |
750 lb (340 kg) |
|
(C) |
Available Cargo and Luggage Weight |
99 lb (45 kg) |
|
KIAPB047 |
|
Item |
Description |
Total |
|---|---|---|
|
(A) |
Vehicle Capacity Weight |
849 lb (385 kg) |
|
(B) |
Subtract Occupant Weight 161 lb (73 kg)×5 |
805 lb (365 kg) |
|
(C) |
Available Cargo and Luggage Weight |
44 lb (20 kg) |
Refer to your vehicle’s tire and loading information label for specific information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s capacity weight.
