Hands-off warning

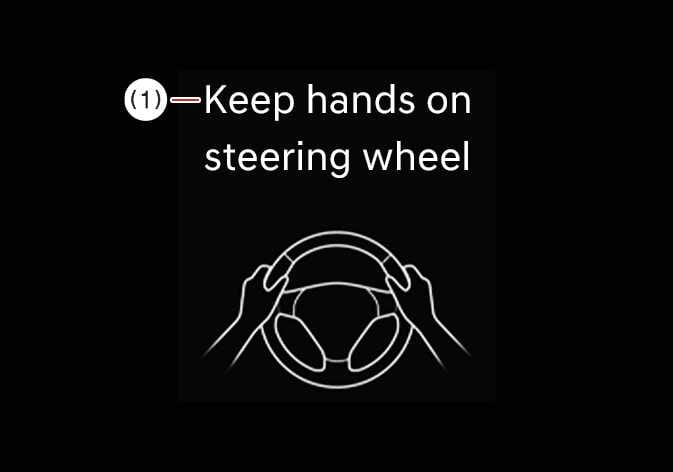

OCL4M055099N

  1. Keep hands on steering wheel

When you take your hands off the steering wheel for a few seconds, a warning message appears and an audible warning sounds in stages.

  • First stage: Warning message

  • Second stage: Warning message (red steering wheel) and audible warning

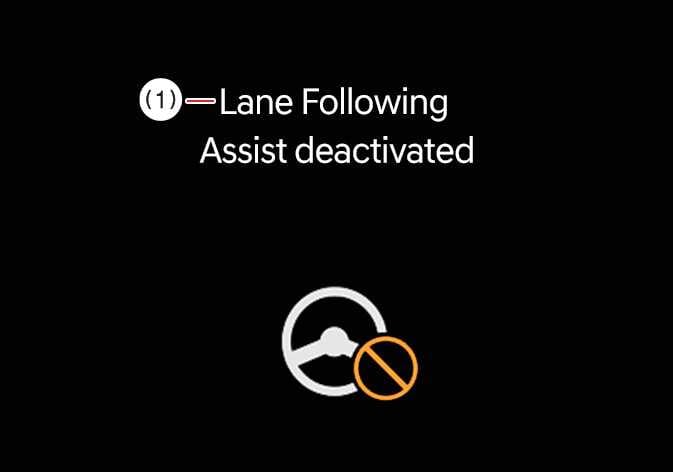

OCL4M055100N

  1. Lane Following Assist deactivated

If the driver continues not to hold the steering wheel, a Lane Following Assist deactivation warning will be displayed along with an audible alert, and Lane Following Assist will automatically turn off.

If Smart Cruise Control is active and the driver does not respond to the Hands-Off second stage warning message, the Emergency Stop function will be activated. For more details, refer to Emergency Stop (ES).

The Hands-Off warning will stop when the driver grips the steering wheel.

WARNING

  • Lane Following Assist may not assist with steering if you hold the steering wheel very tight or steer it over a certain degree.

  • Lane Following Assist does not operate at all times. It is your responsibility to safely steer the vehicle and stay in your lane.

  • The hands-off warning message may appear late depending on road conditions. Always keep your hands on the steering wheel while driving.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

  • If you wear gloves or hold the steering wheel lightly, Lane Following Assist may not detect your hands on the steering wheel and may display the hands-off warning.

  • When Lane Following Assist reaches the system limit, the indicator will blink white and an audible warning will sound.

    • System limit: When the driver releases the steering wheel or the vehicle departs from the lane while Lane Following Assist is active.

  • Lane Following Assist may not operate or may operate abnormally when navigating sharp curved roads.

TIP

  • When both lane markings are detected, the lane lines on the instrument cluster change from gray to white.

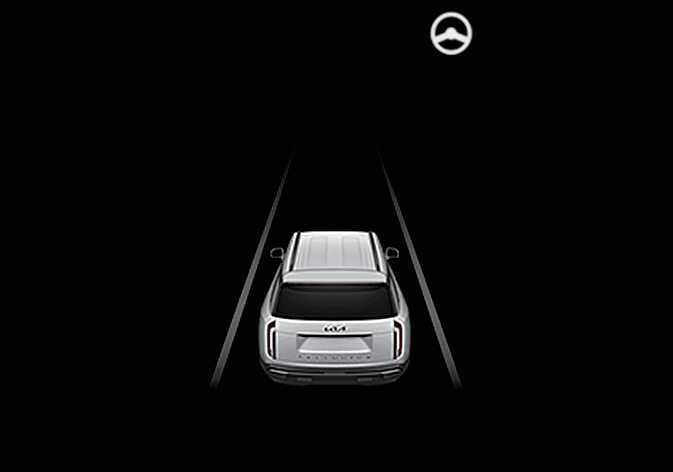

    Figure 1. Lane undetected
    OLQ2AH005040

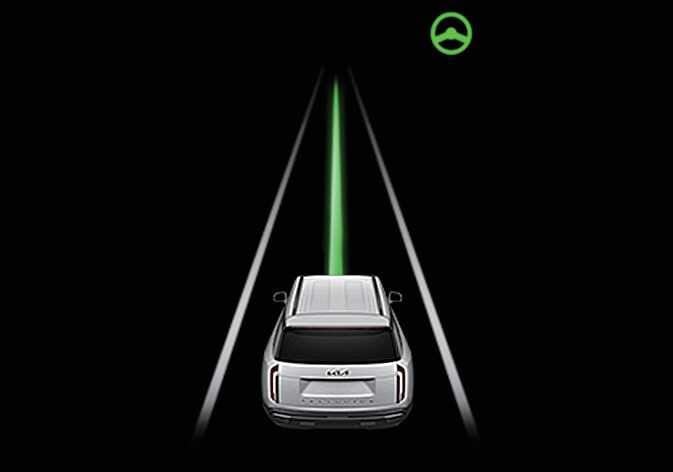

    Figure 2. Lane detected
    OLQ2AH005039

  • The images or colors may display differently depending on the specifications of the instrument cluster or theme.

  • If lane markings are not detected, steering wheel assistance by Lane Following Assist may be limited depending on whether a vehicle is ahead or on the driving conditions of the vehicle.

  • You can control the steering wheel even when Lane Following Assist assists with steering.

  • The steering wheel may feel heavier or lighter than usual when Lane Following Assist assists with steering.

  • For more details on instrument cluster settings, refer to Instrument cluster.

  • The lanes displayed in the cluster may differ from the actual lanes.
