Operating conditions

When Reverse Parking Collision-Avoidance Assist detects a risk of collision with pedestrians or objects behind the vehicle, an audible warning sounds, the steering wheel vibrates, and a warning message appears on the instrument cluster. If the Surround View Monitor is active, the infotainment system screen also displays a warning message.

If a collision risk is urgent, Reverse Parking Collision-Avoidance Assist controls the vehicle’s braking.

Tap Backward Safety on the Parking Safety menu on the infotainment system screen. Parking Collision-Avoidance Assist is enabled under the following conditions:

  • The liftgate and doors are closed.

  • The Electronic Parking Brake (EPB) is released.

  • The gear is shifted to R (Reverse).

  • Your speed is below 6 mph (10 km/h) (detecting pedestrians).

  • Your speed is below 1 mph (4 km/h) (detecting objects).

  • Parking Collision-Avoidance Assist components (such as the wide-rear view camera and the rear ultrasonic sensors) are in normal condition.

    OLQ2A005039

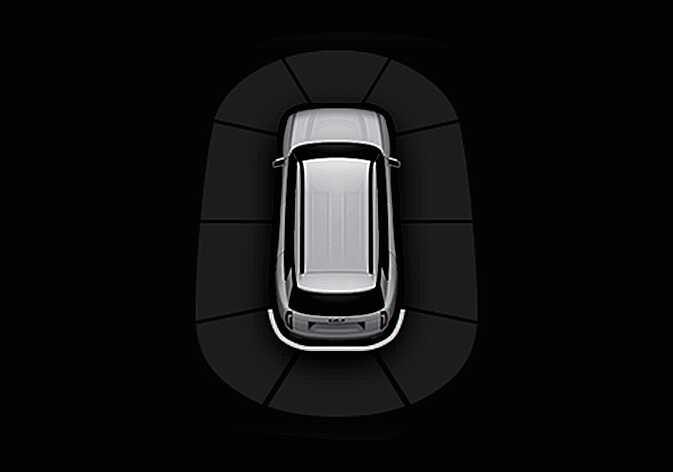

    When Parking Collision-Avoidance Assist activates, a line appears at the bottom of the vehicle’s image in the instrument cluster.

TIP

Parking Collision-Avoidance Assist operates only once after you shift the gear to R (Reverse). To reactivate Parking Collision-Avoidance Assist, shift from another gear to R (Reverse).
