Front wiper blade replacement

OLQ2A125011

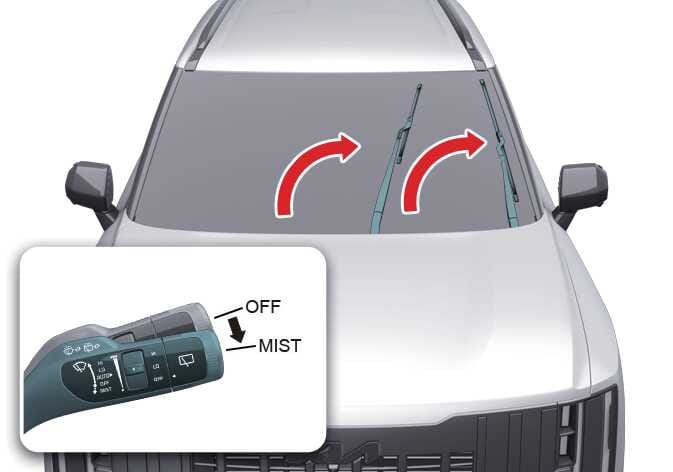

For your convenience, and to prevent hood paint damage, move the windshield wiper blades to the service position. After turning off the vehicle, move the wiper switch to the single wiping (MIST) position within 20 seconds. Hold the switch for more than 2 seconds until the wiper blades are pointing straight up.

NOTE

Wiper arms

  • Do not allow the wiper arm to fall against the windshield, as it may crack or chip the glass.

  • Do not pull the wiper arm forward, as the arm could chip the hood paint.

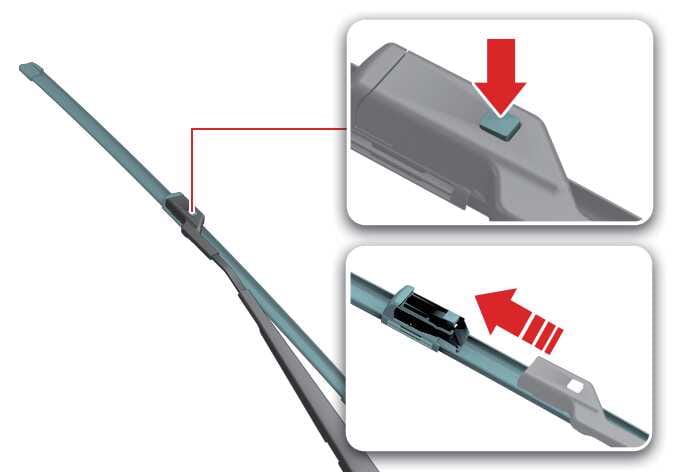

  1. Raise the wiper arm and rotate the wiper blade to access the clip.
  2. While pushing the clip, pull down the wiper blade. Remove the wiper blade from the wiper arm.
    OLQ2A125031_2

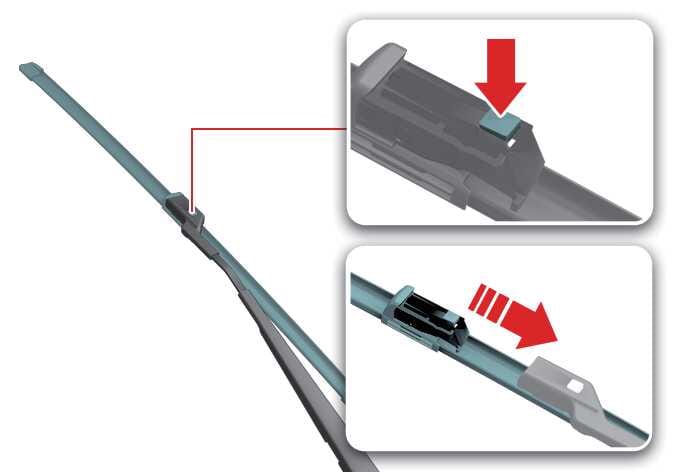

  3. Install a new wiper blade assembly in the reverse order of removal.
    OLQ2A125032_2
  4. Make sure that both blade assemblies are installed firmly by trying to pull them slightly.
  5. Gently put the wipers back down onto the windshield.
  6. Start the vehicle to the ON position to return the wiper arms to their normal operating position.
