Replacing lights (LED type)

If the LED lamp is not functioning, have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

NOTE

If the high-mounted stop lamp (LED) is not functioning, have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

: if equipped

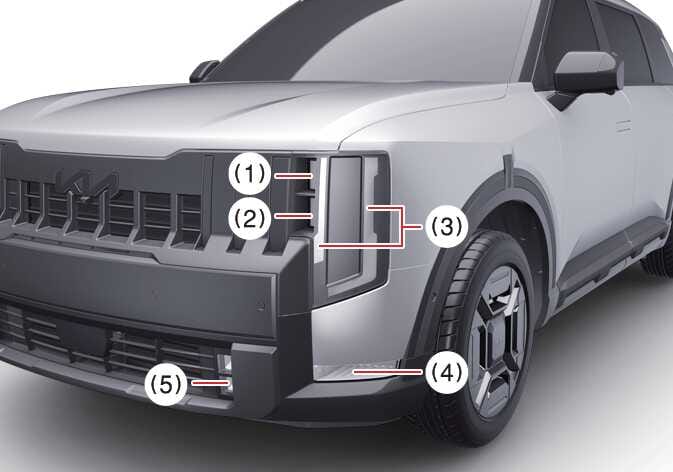

Figure 1. Type A
OLQ2A125023

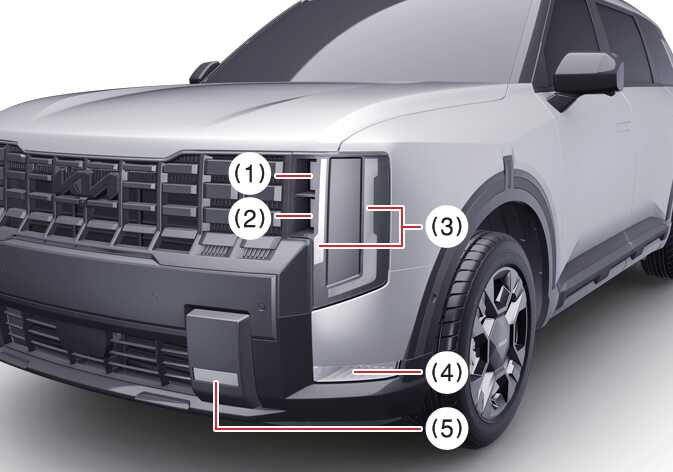

Figure 2. Type B
OLQ2AH125019

  1. Headlamp (Low) (LED type)

  2. Headlamp (Low/High) (LED type)

  3. Day time running light/Position lamp/Front turn signal lamp (LED type)

  4. Front side marker lamp (LED type)

  5. Front fog lamp (LED type)*

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer.

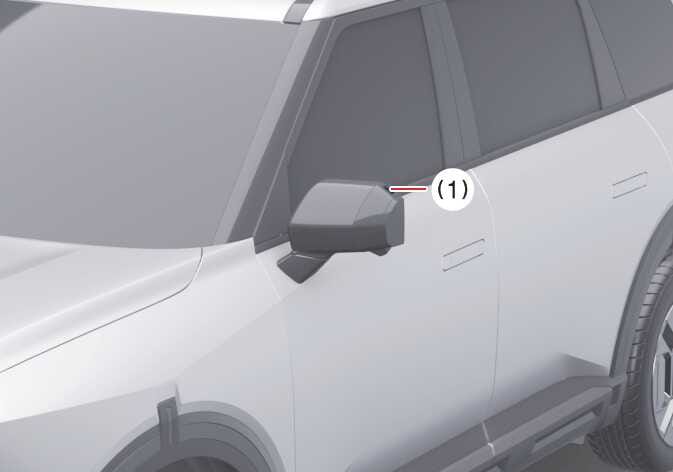

OLQ2A125026

  1. Side repeater lamp (LED type)

Replacing rear lights (LED type)

If the rear lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

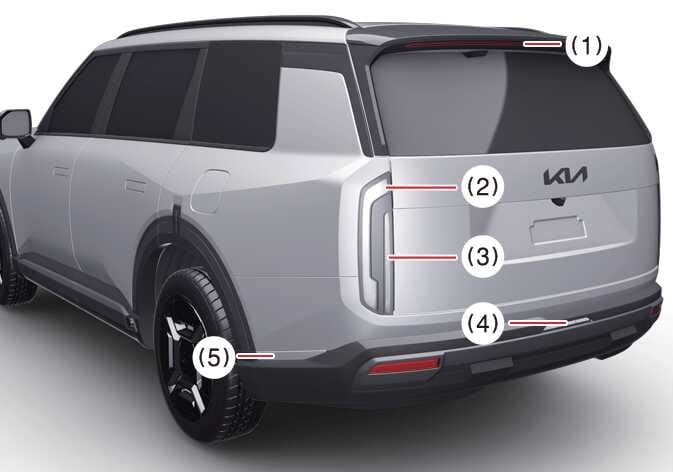

Figure 3. Rear combination lamp (Type A)
OLQ2A125024

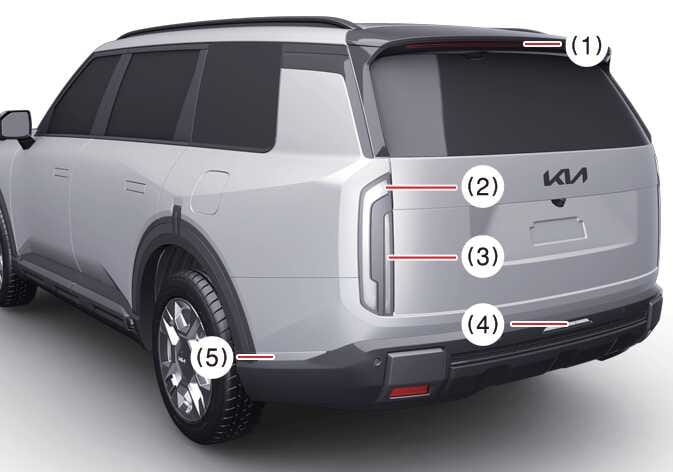

Figure 4. Rear combination lamp (Type B)
OLQ2AH125020

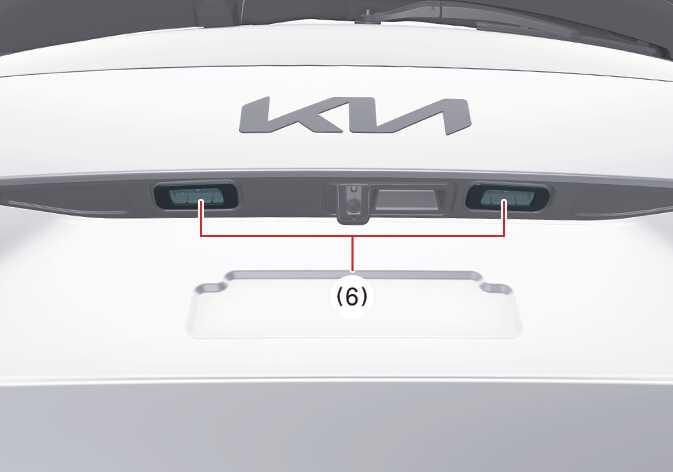

Figure 5. License plate lamp
OLQ2A125025

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp/Rear turn signal lamp (LED type)

  3. Tail lamp/Stop lamp/Rear turn signal lamp (LED type)

  4. Reversing lamp (LED type)

  5. Rear side marker lamp (LED type)

  6. License plate lamp (LED type)

Replacing interior lights (LED type)

If the interior lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

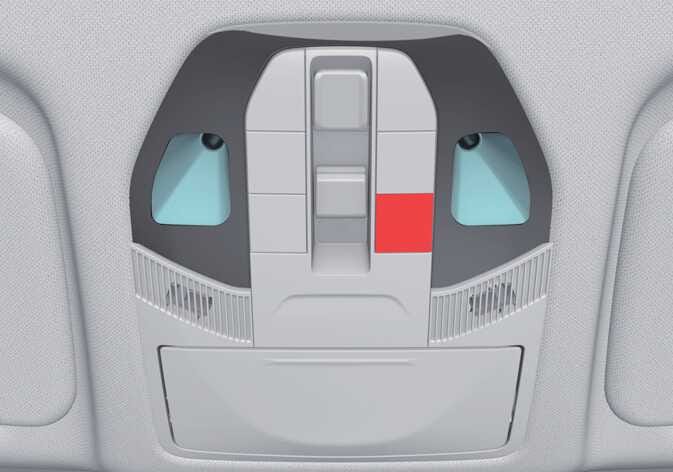

Figure 6. Map lamp
OLQ2A125049

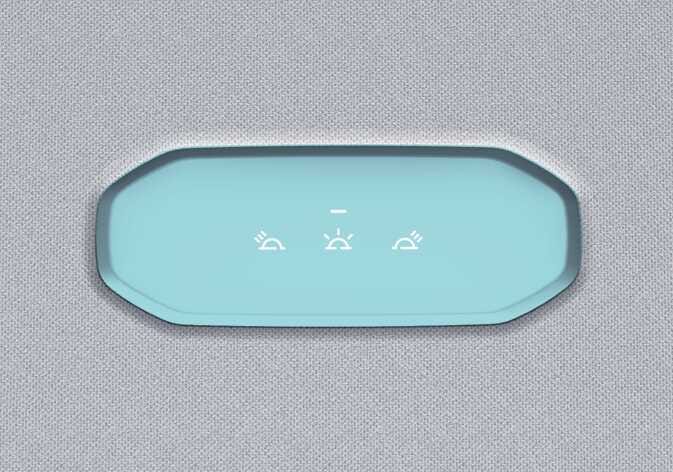

Figure 7. Room lamp (if equipped)
OLQ2A125050

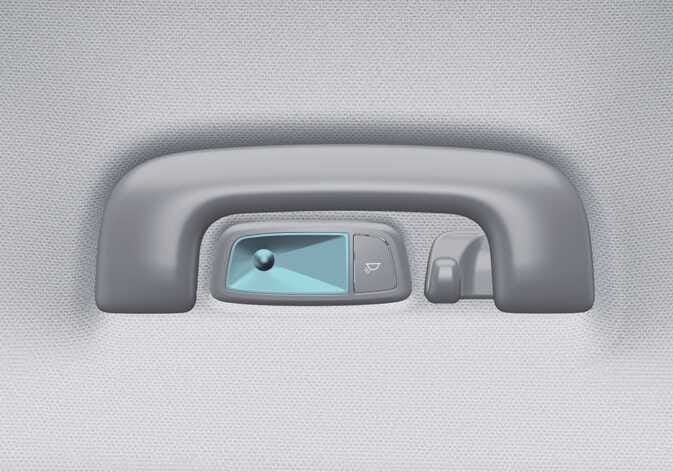

Figure 8. Personal lamp (if equipped)
OLQ2A125051

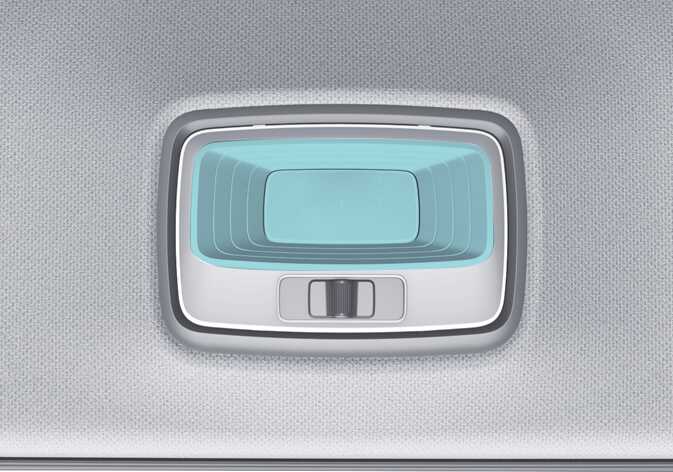

Figure 9. Luggage compartment lamp
OLQ2A125052
Figure 10. Vanity mirror lamp
OLQ2A085008
Figure 11. Glove box lamp (if equipped)
OLQ2A085009
Figure 12. Center console storage lamp (if equipped)
OLQ2A085081

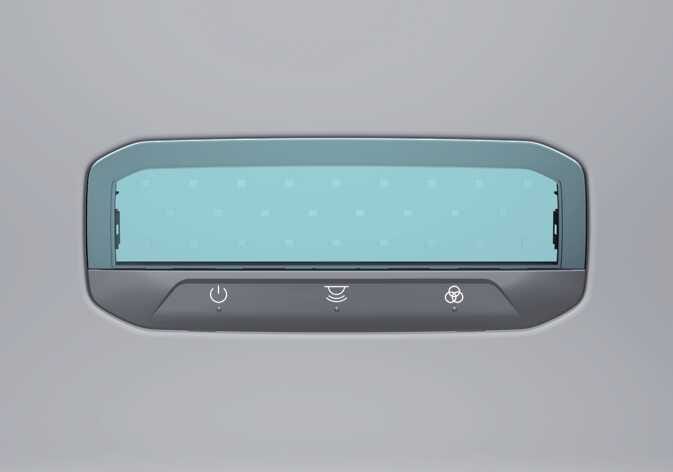

Figure 13. Liftgate lamp (if equipped)
OLQ2AH085014
Figure 14. Ambient light - instrument panel (if equipped)
OLQ2A085068
Figure 15. Ambient light - Front door (if equipped)
OLQ2A085075_2
Figure 16. Ambient light - Rear door (if equipped)
OLQ2A085076_2
Figure 17. Ambient light - Center console (if equipped)
OLQ2A085087
