RVM operation

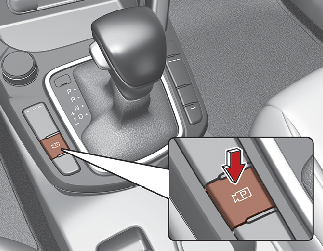

Parking/View button
Press the Parking/View button to turn on RVM.
Press the button again to turn off the function.

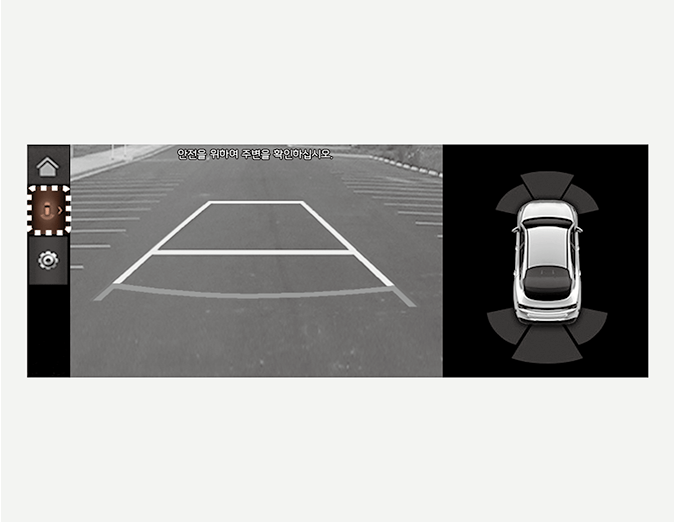

Rear view
-
Shift the gear to R (Reverse), the image will appear on the screen.
-
Press the Parking/View button while the gear is in P (Park), the image will appear on the screen.
-
Pressing the View icon with the rear top view on the screen.
-
The rear view cannot be turned off when the gear is in R (Reverse).
-
Press the Parking/View button again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
-
Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

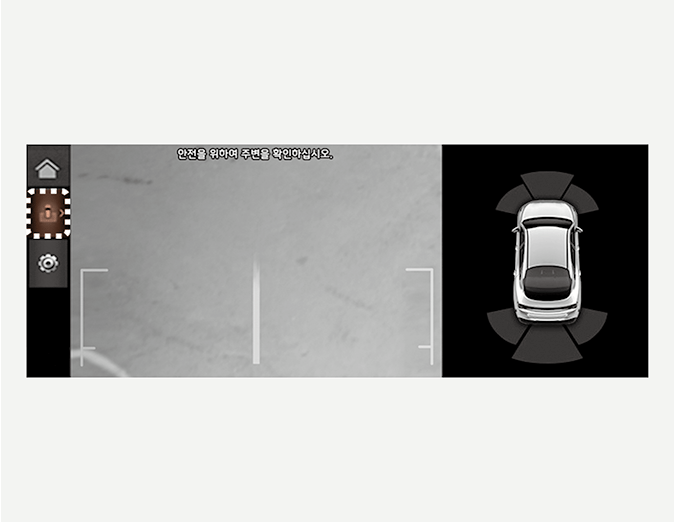

Rear top view
When you touch the (
) icon, the top view is displayed on the screen and shows the distance from a vehicle in the back of your vehicle while parking.
Extended RVM
The rear view will maintain showing on the screen to help you when parking.
-
Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.
-
Your vehicle speed is below approximately 6 mph (10 km/h).
-
When speed is above 6 mph (10 km/h), the rear view will turn off.
-
Press the Parking/View button, the rear view will turn off.
-
Shift the gear to P (Park), the rear view will turn off.
