Mode
	Driving Assist	Trip Computer	Turn By Turn (TBT)*	User Settings	Information	Master Warning
Up/Down	Forward Collision-Avoidance Assist* Lane Keeping Assist* Blind-Spot Collision-Avoidance Assist* Smart Cruise Control* Lane Following Assist*	Drive Information	Route Guidance	Driver Assistance*	Driving force distribution (4WD)*	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Driver Attention Warning*	Since Refueling	Destination Info	Cluster	TPMS
	Intelligent Speed Limit Assist*	Accumulated Info		Lights*	Urea Level*
		Digital Speedometer*		Door*
				Convenience*
				Units
				Language
				Reset

* : if equipped

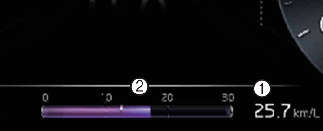

1. Average fuel economy

2. Instant fuel economy

2. Instant fuel economy

Displays the instant fuel economy during the last few seconds when the vehicle speed is more than approximately 10 km/h (6 mph).

NOTICE

This information is always displayed at the bottom center of the Full LCD cluster.

This mode displays the state of:

• Forward Collision-Avoidance Assist

  Lane Keeping Assist

  Blind-Spot Collision-Avoidance Assist

  Smart Cruise Control

  Lane Following Assist

• Driver Attention Warning

* You may change through items in the following order.

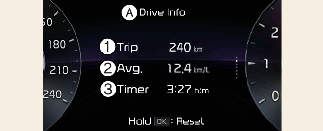

A: Drive info

1. Accumulated trip distance

2. Average fuel efficiency

3. Total driving time

The information after one ignition cycle.

Drive Info screen will reset when the driver's door is opened after turning off the vehicle, or the vehicle is turned on after 3 minutes have passed.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Drive info.

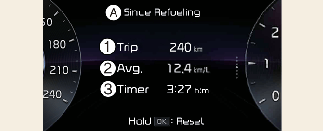

A: Since refueling

1. Accumulated trip distance

2. Average fuel efficiency

3. Total driving time

The information after refueling.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Since refueling.

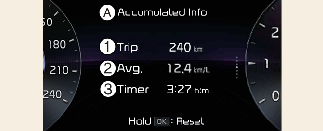

A: Accumulated info

1. Accumulated trip distance

2. Average fuel efficiency

3. Total driving time

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Accumulated Info.

NOTICE

• The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or approximately 50 m (0.03 miles) since the vehicle is in ON position.

• Fuel efficiency is calculated after the vehicle has run for more than 300 meters.

• The information will be accumulated even if the engine is running and the vehicle is not in motion.

Indicates the speed of the vehicle.

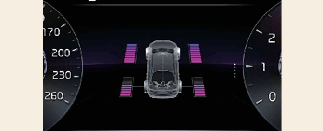

The distribution status of the driving power of the front and rear wheels are displayed.

For more details, refer to More Details.

This mode displays the Navigation status.

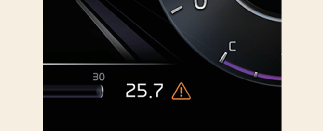

This mode informs you of the following situations:

• Driver assistance system malfunction, limitation or radar/camera blockage

• LED headlamp malfunction

• Lamp malfunction

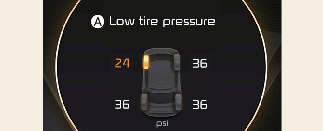

• TPMS failure, low tire pressure, etc.

At this time, the Master warning light () will appear. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

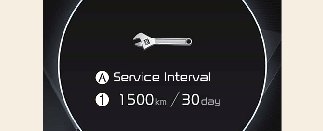

A: Service Interval

1. Service interval schedule

It calculates and displays when you need a scheduled maintenance service (mileage or days).

To reset the service interval, select Settings → Vehicle → Cluster → Service Interval → Reset.

NOTICE

• If the remaining mileage or time reaches 1,500 km (900 miles) or 30 days, the message Service in is displayed for several seconds each time you set the vehicle to the ON position.

• If you do not have your vehicle serviced according to the already inputted service interval, Service required message is displayed for several seconds each time you set the vehicle to the ON position.

• If any of the following conditions occurs, the mileage and days may be incorrect.

  • The battery cable is disconnected.

  • The battery is discharged.

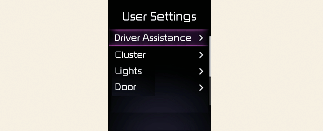

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Door (if equipped)

Items	Explanation
Automatically Lock	Enable on shift/Enable on speed/Off
Automatically Unlock	On shift to P/Vehicle Off/On key out (if equipped)/Off
Power Tailgate	Activate
Power Tailgate Opening Speed	Fast/Normal
Power Tailgate Opening Height	Full open/Level 3/Level 2/Level 1/User Height Setting
Smart Tailgate	Activate
Remote Window Control (if equipped)	Activate

NOTICE

• Automatically Lock

  • Enable On Shift: All doors will be automatically unlocked when the vehicle is shifted to P (Park) to R (Reverse), N (Neutral), or D (Drive). (Activated with the vehicle ON position)

  • Enable On Speed: All doors will be automatically locked when the vehicle speed is over 15 km/h (9 mph).

• Automatically Unlock

  • On Shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)

  • Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

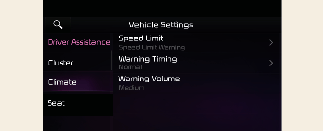

select Settings → Vehicle → Driver assistance on the infotainment system screen to set the Driver Assistance function.

• Driver assistance

  • Speed limit

  • Warning timing

  • Warning volume

  • Haptic warning

  • DAW (Driver Attention Warning)

  • Forward safety

  • Lane safety

  • Blind-spot safety

  • Parking safety



  NOTICE

  The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.
