Surround View Monitor settings
Camera settings

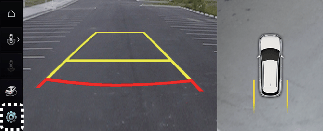

With the vehicle on, select the setup icon (
) on the screen or Settings → Vehicle → Driver assistance → Parking safety → Camera settings from the infotainment system screen to change the Rear View Monitor settings.
-
Display Contents: To change the settings of Parking distance warning, Top view parking guide lines, and Rear view parking guide lines function.
-
Display Settings: To change the screen's brightness and contrast. (if equipped)
The settings menu on your vehicle may not be necessarily be available due to the selected options or regions.
Surround View Monitor Auto On
With the vehicle on, select 'Driver Assistance → Parking Safety → Surround View Monitor Auto On' from the infotainment system Settings menu to use the function.
To use this function, refer to More Details

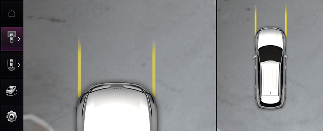

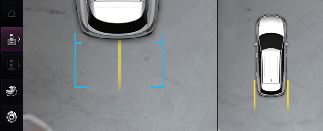

Top View Parking Guidance
Parking guidance is displayed on the right side of the Surround View Monitor screen when the Front or Rear Top View Parking Guidance is selected.

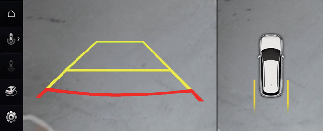

Rear View Parking Guidance
Rear view parking guidance is displayed in the rear view when the Parking guide in rear view is selected.
-
The horizontal guideline of the Rear View Parking Guidance shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
-
The horizontal scale of rear top view paring guide indicates the tailgate opening distance, 2 m from the vehicle.

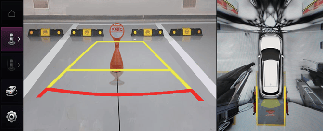

Parking Distance Warning
Parking distance warning is displayed on the right side of the Surround View Monitor top view screen when the Parking distance warning is selected.
Surround View Monitor Auto On
With the vehicle on, select Settings → Vehicle → Driver assistance → Parking safety → Surround view monitor auto On from the infotainment system screen to use the function.
For more details on Surround View Monitor Auto On, refer to More Details.
