Cargo security screen (if equipped)

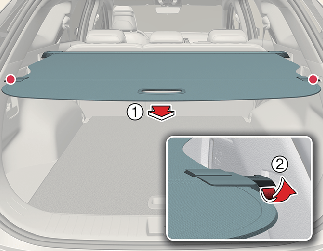

Installing cargo security screen

  1. Cargo security screen handle

  2. Cargo security screen guide

Operation

  1. Pull the cargo security screen towards the rear of the vehicle by the handle (1).

  2. Insert the guide pin into the guide (2).

WARNING

  • Do not place objects on the cargo security screen. Such objects may move around inside the vehicle and possibly injure vehicle occupants during an accident or when braking.

  • Never allow anyone to ride in the luggage compartment. It is designed for luggage only.

  • Maintain the balance of the vehicle and locate the weight as forward as possible.

NOTICE

  • Since the cargo security screen may be damaged or malformed, do not put luggage on it when it is used.

  • Pull out the cargo security screen using the handle in the center to prevent the guide pin from falling out of the guide.

  • The cargo security screen may not automatically slide back in if the cargo security screen is not fully pulled out. Fully pull it out and then let go.

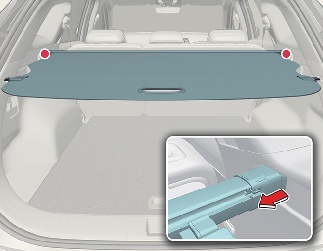

Removing cargo security screen

Operation

  1. Push the guide pin in the direction.

  2. Pull the cargo security screen out.

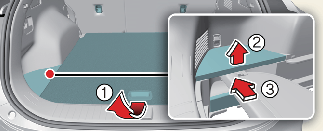

  3. Open the luggage board(1) and side tray cover (2) and keep the cargo security screen in the tray (3) (if gasoline engine and mini temporary spare tire equipped in luggage).
