Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
DOOR LOCK |
 |
20A |
Center Door Lock/Unlock Relay |
|
P/WINDOW RH |
 |
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
P/WINDOW LH |
 |
25A |
Power Window Main Switch |
|
S/HEATER (REAR) |
 |
20A |
Rear Seat Warmer Control Module |
|
S/HEATER (DRV/PASS) |
 |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
 |
30A |
Passenger Power Seat Switch |
|
SUNROOF2 |
 |
20A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF1 |
 |
20A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
 |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
 |
10A |
Clutch Module Cylinder Sensor, Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Tailgate Unit, Steering Telescopic Unit |
|
AMP (Amplifier) |
 |
25A |
AMP (Amplifier) |
|
IBU (Integrated Body Control Unit)2 |
 |
10A |
IBU (Integrated Body Control Unit), Ignition Switch, Auto Transmission Lever |
|
P/WINDOW SAFETY RH |
 |
25A |
Passenger Safety Power Window Module |
|
P/WINDOW SAFETY LH |
 |
25A |
Driver Safety Power Window Module |
|
MEMORY |
 |
10A |
Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Mood Lamp (Passenger), Crash Pad Switch, ADAS Parking ECU |
|
E-SHIFTER2 |
 |
10A |
SCU (Shift by wire Control Unit), Electronic Auto Transmission Shift Lever Switch |
|
TAILGATE |
 |
10A |
Tailgate Relay |
|
E-CALL |
 |
10A |
Emergency Call (E-Call) Module |
|
MODULE7 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
 |
10A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MULTIMEDIA |
 |
20A |
Audio (Display), Audio/Video & Navigation Head Unit |
|
WASHER |
 |
15A |
Multifunction Switch |
|
MODULE8 |
 |
7.5A |
Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay LH) |
|
AIRBAG1 |
 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
Air ConditionerON |
 |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
 |
15A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
MODULE6 |
 |
10A |
Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shift Lever Indicator |
|
MODULE1 |
 |
10A |
ADAS Parking ECU, IBU (Integrated Body Control Unit), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, Emergency Call (E-Call) Module, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit |
|
HEATED MIRROR |
 |
10A |
Driver/Passenger Power Outside Mirror |
|
IBU (Integrated Body Control Unit)1 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MODULE5 |
 |
10A |
Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Emergency Call (E-Call) Module, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror, |
|
AIRBAG IND |
 |
7.5A |
Instrument Cluster |
|
MODULE4 |
 |
7.5A |
IBU (Integrated Body Control Unit), Front View Camera, Crash Pad Switch, ADAS Parking ECU, Rear Corner Radar LH/RH, Clutch Module Cylinder Sensor, 4WD (4 Wheel Drive) DCU (Dosing Control unit), Head Lamp LH/RH |
|
E-SHIFTER3 |
 |
7.5A |
SCU (Shift by wire Control Unit), Electronic Auto Transmission Shift Lever Switch |
|
CLUSTER |
 |
7.5A |
Instrument Cluster |
|
MODULE3 |
 |
7.5A |
Stop Lamp Switch, Overhead Console Lamp |
|
Motor Driven Power Steering*1 |
 |
7.5A |
Motor Driven Power Steering Unit |
|
START |
 |
10A |
Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay) |
|
MODULE10 |
 |
7.5A |
Diesel Fuel Filter system |
* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

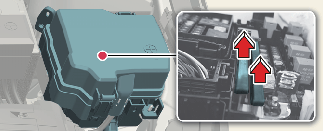

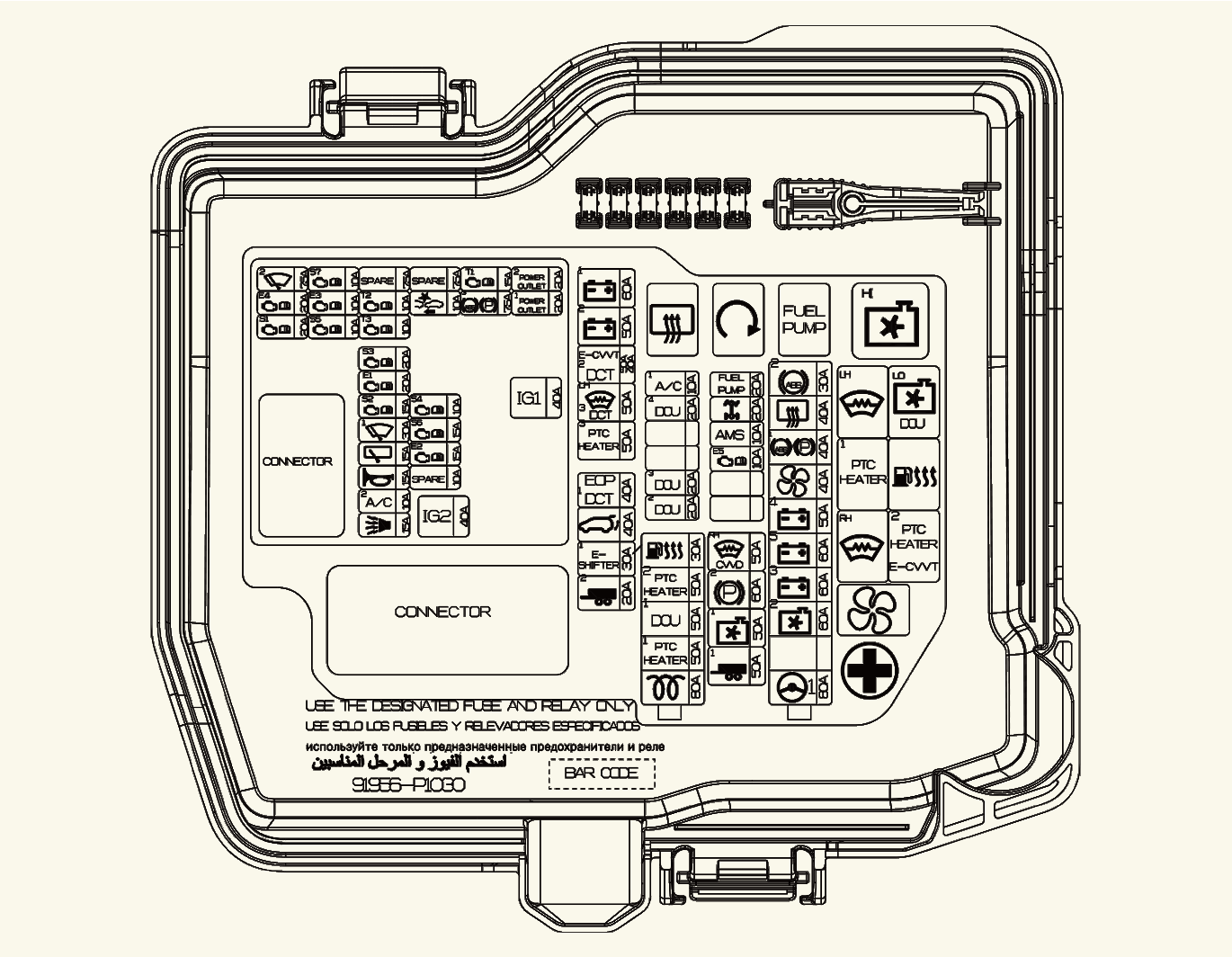

Engine compartment fuse panel
Engine Room Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering*1 |
 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN2 |
 |
60A |
Cooling Fan Controller |
|
|
B+3 |
 |
60A |
ICU Junction Block (Fuse - S/HEATER (DRV/PASS), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
B+5 |
 |
60A |
PCB Block (Fuse - IG2, IG1, HORN, A/CON2, B/ALARM HORN, ECU2, Engine Control Relay, Wiper Main Relay) |
|
|
B+4 |
 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (DRV/PASS), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, TAILGATE, BRAKE SWITCH, Long Term Load Latch Relay) |
|
|
BLOWER |
 |
40A |
Blower Relay |
|
|
ABS1/EPB1 |
 |
40A |
ESP (Electronic Stability Program Control Module |
|
|
REAR HEATED |
 |
40A |
Rear Heated Relay |
|
|
ABS2 |
 |
30A |
ESP (Electronic Stability Program Control Module |
|
|
GLOW |
 |
80A |
GLOW Unit (Diesel) |
|
|
PTC HEATER1 |
 |
50A |
Positive Temperature Coefficient Heater1 Relay (Diesel) |
|
|
DCU1 |
 |
50A |
Dosing Control Unit Relay (Diesel) |
|
|
PTC HEATER2 |
 |
50A |
Positive Temperature Coefficient Heater2 Relay (Diesel) |
|
|
FUEL FILTER HTR |
 |
30A |
Diesel Fuel Filter Relay (Diesel) |
|
|
FUSE |
TRAILER1 |
 |
50A |
Trailer Connector |
|
COOLING FAN1 |
 |
50A |
Cooling Fan Relay High |
|
|
EPB2 |
 |
60A |
ESP (Electronic Stability Program Control Module |
|
|
W/S HEATED GLASSRH / CVVD |
 |
50A |
Windshield Heated Relay RH, Continuous Variable Valve Duration Actuator (Smartstream G1.6 T-GDi) |
|
|
ECU5 |
 |
10A |
ECM (Engine Control Module) |
|
|
AMS |
 |
10A |
Battery Sensor |
|
|
4WD |
 |
20A |
AWD ECM (Engine Control Module) |
|
|
FUEL PUMP |
 |
20A |
Fuel Pump Relay |
|
|
Air ConditionerON1 |
 |
10A |
Blower Relay, Air Conditioner Control Module |
|
|
TRAILER2 |
 |
20A |
Trailer Connector |
|
|
E-SHIFTER1 |
 |
30A |
SCU (System Control Unit) |
|
|
TAILGATE |
 |
40A |
Power Tailgate Unit |
|
|
EOP |
 |
40A |
Not Used |
|
|
PTC HEATER3 |
 |
50A |
Fuel Filter Heating Relay |
|
|
W/S HEATED GLASSLH / DCT3 |
 |
50A |
Windshield Heated Relay LH, Double Clutch Transmission (Smartstream G1.6 T-GDi) |
|
|
E-CVVT/DCT2 |
 |
E-CVVT (50A)/DCT2 (40A) |
Double Clutch Transmission (Smartstream G1.6 T-GDi), E-CVVT Relay (Smartstream G2.5 GDi) |
|
|
B+2 |
 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
|
DCT1 |
 |
40A |
Double Clutch Transmission Module |
|
|
E-SHIFTER1 |
 |
30A |
SCU (Shift by wire Control Unit) |
|
|
DCU2 |
 |
20A |
Dosing Control unit (Diesel) |
|
|
DCU3 |
 |
20A |
Dosing Control unit (Diesel) |
|
|
DCU4 |
 |
20A |
Dosing Control unit (Diesel) |
|
PCB Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
IG2 |
 |
40A |
IG2 Relay |
|
IG1 |
 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
 |
7.5A |
Front Wiper (Low) Relay, ECM (Engine Control Module), IBU (Integrated Body Control Unit) |
|
ECU4 |
 |
20A |
Power train Control Module |
|
SENSOR1 |
 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
 |
10A |
GLOW Unit (Diesel) |
|
ECU3 |
 |
10A |
Power train Control Module |
|
SENSOR5 |
 |
10A |
Fuel Pump Relay |
|
TCU2 |
 |
10A |
Transmission Control Module |
|
TCU3 |
 |
10A |
Transaxle Range Switch |
|
SENSOR3 |
 |
20A |
ECM (Engine Control Module) |
|
ECU1 |
 |
20A |
Power train Control Module |
|
SENSOR2 |
 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
 |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
 |
15A |
Horn Relay |
|
Air ConditionerON2 |
 |
10A |
Air Conditioner Comp Relay |
|
B/ALARM HORN |
 |
15A |
Burglar Alarm Horn Relay |
|
FCA |
 |
10A |
Front Radar |
|
SENSOR4 |
 |
10A |
[Smartstream G2.0] Oil Control Valve #1/#2 (Intake/Exhaust), Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay, E/R Junction Block (Cooling Fan Relay High) [Smartstream G2.5 T-GDi] Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
|
SENSOR6 |
 |
15A |
Injector #1 ~ #4 |
|
ECU2 |
 |
15A |
Power train Control Module |
|
TCU1 |
 |
15A |
Transmission Control Module |
|
ABS3/EPB3 |
 |
7.5A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
 |
20A |
Luggage Power Outlet |
* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
Relay
Refer to the following table for the relay type.
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
Rear Heated Relay |
 |
MICRO |
|
Start Relay |
 |
MICRO |
|
Fuel Pump Relay |
 |
MICRO |
|
Cooling Fan Relay High |
 |
MINI |
|
Windshield Heated Relay LH |
 |
MICRO |
|
Cooling Fan Relay low (Smartstream G2.0) DCU Relay (Smartstream D2.0) |
 |
MICRO |
|
PTC Heater Relay #1 |
 |
MICRO |
|
Fuel Filter Heating Relay |
 |
MICRO |
|
Windshield Heated Relay RH |
 |
MICRO |
|
PTC Heater Relay #2 (Diesel) E-CVVT Relay (Smartstream G2.5 GDi) |
 |
MICRO |
|
Blower Relay |
 |
MICRO |

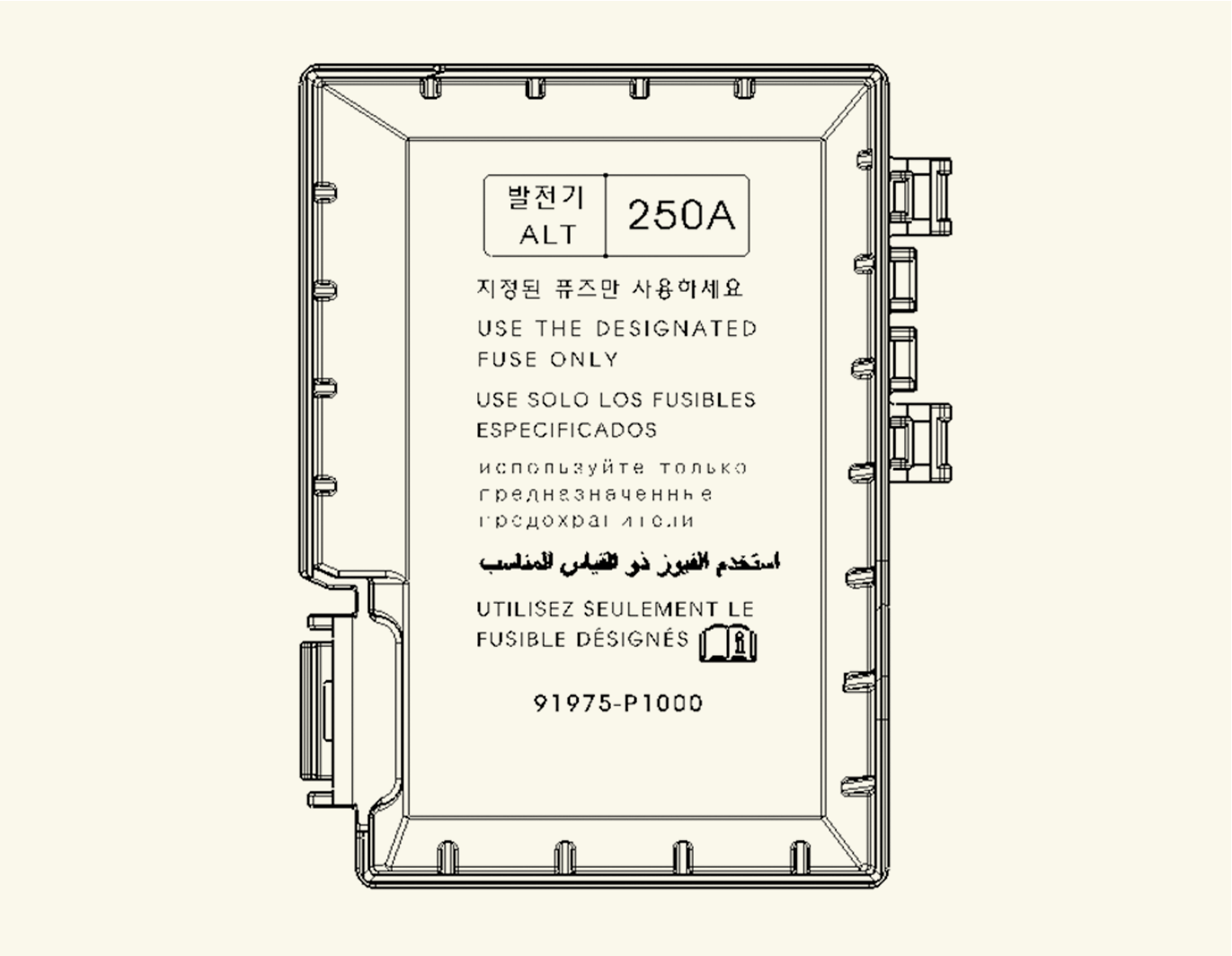

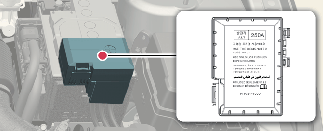

Engine compartment fuse panel (Battery terminal cover)
