Door locks outside the vehicle
Locking/unlocking with the smart key

Operation
-

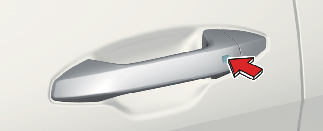

Press the front door handle button (driver's side)
-
Hazard warning lights will blink.
-
Locking: Once
-
Unlocking: Twice
-
Non-operating condition(s)
-
Smart key is in the vehicle.
-
The vehicle is in ACC or ON position.
-
Doors (except tailgate) is opened.

The chime will sound for 3 seconds when the doors are locked.

-
After pressing the button, the doors will lock automatically unless you open any door within 30 seconds.
-
If you want to make sure that a door has locked or not, you should pull the driver side door handle.
-
Make sure the doors are closed securely.
-
If the door is locked/unlocked multiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily in order to protect the circuit and prevent damage to system components.
-
Always remove the ignition key, engage the parking brake, close all windows, and lock all doors when leaving your vehicle unattended.
-
Always place the ignition switch or ENGINE START/STOP button in the OFF position, engage the parking brake, close all windows, and lock all doors when leaving your vehicle unattended.
Limitation(s)
-
Smart key is detected within 0.7~1 m radius (28~40 inches).

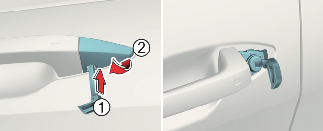

Locking/unlocking with the mechanical key

-
Tab
-
Cover
Operation
-
Pull the driver's side door handle, holding it in place.
-
Insert the key into the tab (1).
-
Lift the cover (2).
-
Turn the key.
-
Locking: Left
-
Unlocking: Right
-

-
When locking the door with a mechanical key, be aware that only the driver's door can be locked/unlocked.
-
To lock all doors, operate the central lock switch inside the vehicle. Open the car door using the inner handle, then close the door and lock the driver's door with a mechanical key.
-
Refer to More Details to lock from inside the vehicle.
-
Be careful not to lose or scratch the cover when removing it.
-
When the key cover freezes and does not open, tap it lightly or indirectly warm (hand temperature, etc.) it up.
-
Do not apply excessive force to the door and door handle. It may be damaged.
