Forward Collision-Avoidance Assist settings

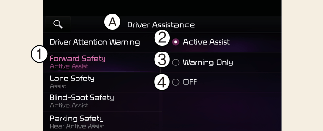

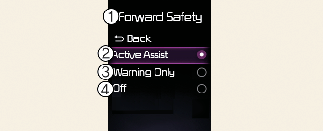

Forward Safety

A: Driver assistance

  1. Forward safety

  2. Active Assist

  3. Warning Only

  4. Off

With the vehicle on, select Driver assistance → Forward safety from the Settings menu to set whether or not to use each function.

  • Active Assist: Forward Collision-Avoidance Assist will warn the driver with a warning message, an audible warning and steering wheel vibration (if equipped) depending on the collision risk levels. Braking assist or steering assist (if equipped) will be applied depending on the collision risk.

  • Warning Only: Forward Collision-Avoidance Assist will warn the driver with a warning message, an audible warning and steering wheel vibration (if equipped) depending on the collision risk levels. Braking and steering (if equipped) will not be assisted. The driver must apply the brake pedal or steer the vehicle if necessary.

  • Off: Forward Collision-Avoidance Assist will turn off. The warning light () will appear on the cluster.

The driver can monitor Forward Collision-Avoidance Assist ON/OFF status from the Settings menu. If the warning light () remains ON when Forward Collision-Avoidance Assist is ON, have the vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.

WARNING

When the vehicle is restarted, Forward Collision-Avoidance Assist will always turn on. However, if Off is selected, the driver should always be aware of the surroundings and drive safely.

CAUTION

  • If Warning only is selected, braking and steering (if equipped) is not assisted.

  • The settings for Forward Safety include 'Basic function' and 'Junction Turning'.

  • Steering wheel vibration (if equipped) can be turned on or off. Select or deselect Driver assistance → Haptic warning from the Settings menu.

NOTICE

Forward Collision-Avoidance Assist will turn off when ESC is turned off by pressing and holding the ESC OFF button. The warning light () will appear on the cluster.

Warning timing

A: Driver assistance

  1. Warning timing

  2. Normal

  3. Late

With the vehicle on, select Driver assistance → Warning timing from the Settings menu to change the initial warning activation time for Forward Collision-Avoidance Assist.

  • Normal: Use in a normal driving environment. If the function operates too sensitively, set to the warning timing to Late.

  • Late: The warning timing will be slow.

Warning volume

A: Driver assistance

  1. Warning volume

  2. High

  3. Medium

  4. Low

  5. Off (If steering wheel vibration function is equipped)

With the vehicle on, select Driver assistance → Warning volume from the Settings menu to change the Warning Volume to High, Medium, Low or Off for Forward Collision-Avoidance Assist.

CAUTION

  • The setting of the Warning Timing and Warning Volume applies to all functions of Forward Collision-Avoidance Assist.

  • Even though Normal is selected for Warning Timing, if the front vehicle suddenly stops, the initial warning activation time may seem late.

  • Select Late for Warning Timing when traffic is light and when driving speed is slow.

NOTICE

  • If the vehicle is restarted, Warning Timing and Warning Volume will maintain the last setting.

  • However, even if Off is selected, the Warning Volume of Forward Collision Avoidance Assist will not turn off but the volume will sound as Low.

  • If you change the Warning Volume, the warning volume of other Driver Assistance systems may change.

  • Depending on your region or update, the menu may be displayed as 'Warning volume', 'Warning Sound and Haptic' or 'Warning Methods'.
