How to register Digital Key 2 (card key)

To use the card key as a Digital Key 2, register the card key in your vehicle system according to the following procedures:

  1. Enter the vehicle with 2 smart keys.

    1) Wireless charging pad

  2. Check if the Use menu is activated.

    With the vehicle on, tap Setup > Vehicle > Digital keys > NFC card key > Use on the infotainment system.

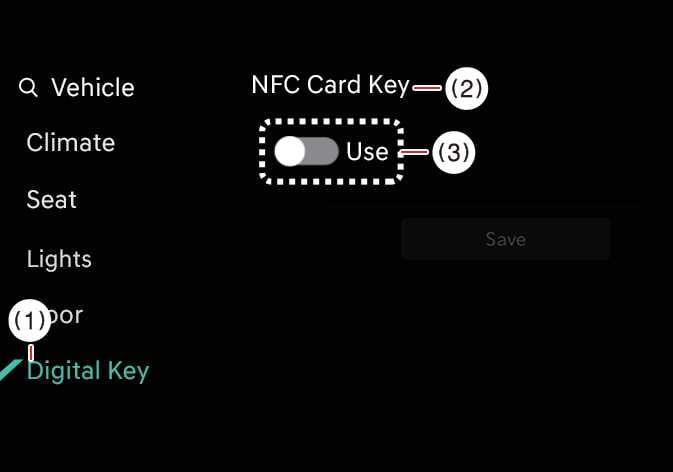

    OCL4M035128N

    1. Digital key

    2. NFC card key

    3. Use
  3. With the vehicle on, place the card key on the wireless charging pad (1), and tap Save on the infotainment system screen. The saving process will begin automatically.

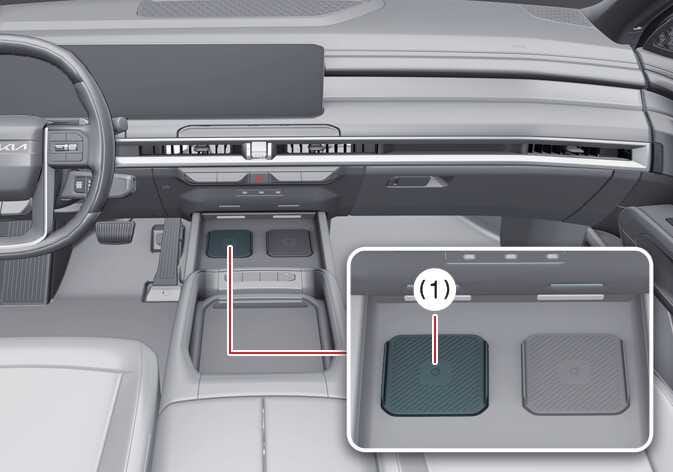

    OLQ2A045011

    1. Charging pad

    When the digital key (card key) is saved, a message appears on the infotainment system screen.

    TIP

    • The infotainment system may change after software updates. For more information, refer to the user’s manual provided in the infotainment system and the quick reference guide.

    • When there is a digital key (card key) already saved in the vehicle, the Save menu is disabled. If you want to save a digital key again, refer to How to delete digital key (smartphone) and follow the procedure for deleting an existing digital key first before saving a new digital key.

    • To register the digital key (card key), the 2 smart keys must be in the vehicle.

    • The registered digital key (card key) cannot be used for another vehicle.
