Head-Up Display (HUD) (if equipped)

The head up display is a transparent display which projects a shadow of some information of the instrument cluster and navigation on the HUD screen.

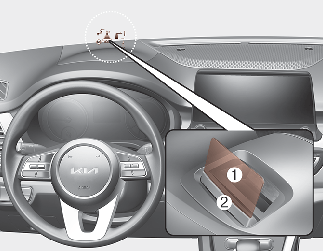

  1. Combiner

  2. Shutter

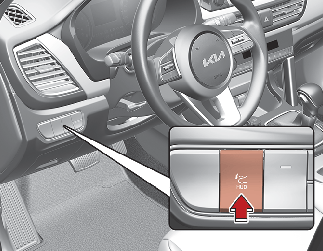

The hidden screen will go up when you press the screen operation switch on the left side of the lower part of crash pad and if you press the switch again, the screen will return to its original hidden position.

  • The head up display image on the HUD screen may be invisible when:

    • Sitting posture is bad.

    • Wearing a polarized sunglasses.

    • There is an object on the cover of the head up display.

    • Driving on a wet road.

    • An inadequate lighting is turned on inside the vehicle.

    • Any light comes from the outside.

    • Wearing an inadequate glasses to your eyesight.

  • If the head up display image is not shown well, adjust the height, rotation or illumination of the head up display in the cluster.

  • When the head up display needs inspection or repair, have your vehicle inspected or repaired by an authorized Kia dealer.

WARNING

Head-Up Display

  • Do not place any accessories on the Head-Up Display shutter. It might fall into Head-Up Display and can damage to Head-Up Display.

  • Do not attach stickers or accessories to the Head-Up Display and the crash pad.

  • Do not manually adjust the shutter and combiner. The images may not be visible due to fingerprints. Excessive external force during operation may cause damage.

  • Do not place any objects near the Head-Up Display. Interference with the object during operation may damage it.

  • Do not place any objects around the Head-Up Display. It might enter the narrow gap of the cover and affects operation.

  • Do not place any liquids around the Head-Up Display. Water or other liquids can flow into the Head-Up Display and break it.

  • Do not expose the combiner to strong light. The combiner may become deformed.

  • Do not use organic solvents, detergents or abrasive cloths to clean the Head-Up Display. Wipe it off with a soft cloth. Do not strongly wipe Head-Up Display shutter. It might get damaged.

  • For safety, be sure to adjust the settings when the vehicle is stopped.

  • When opening, closing and height adjusting the Head-Up Display, noise may be generated by the motor and gear.

Contains Topics
Head-Up Display Information
Head up Display Setting
