Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

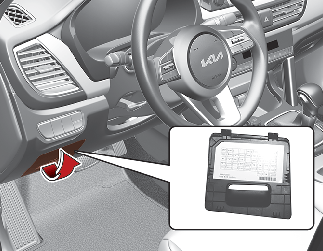

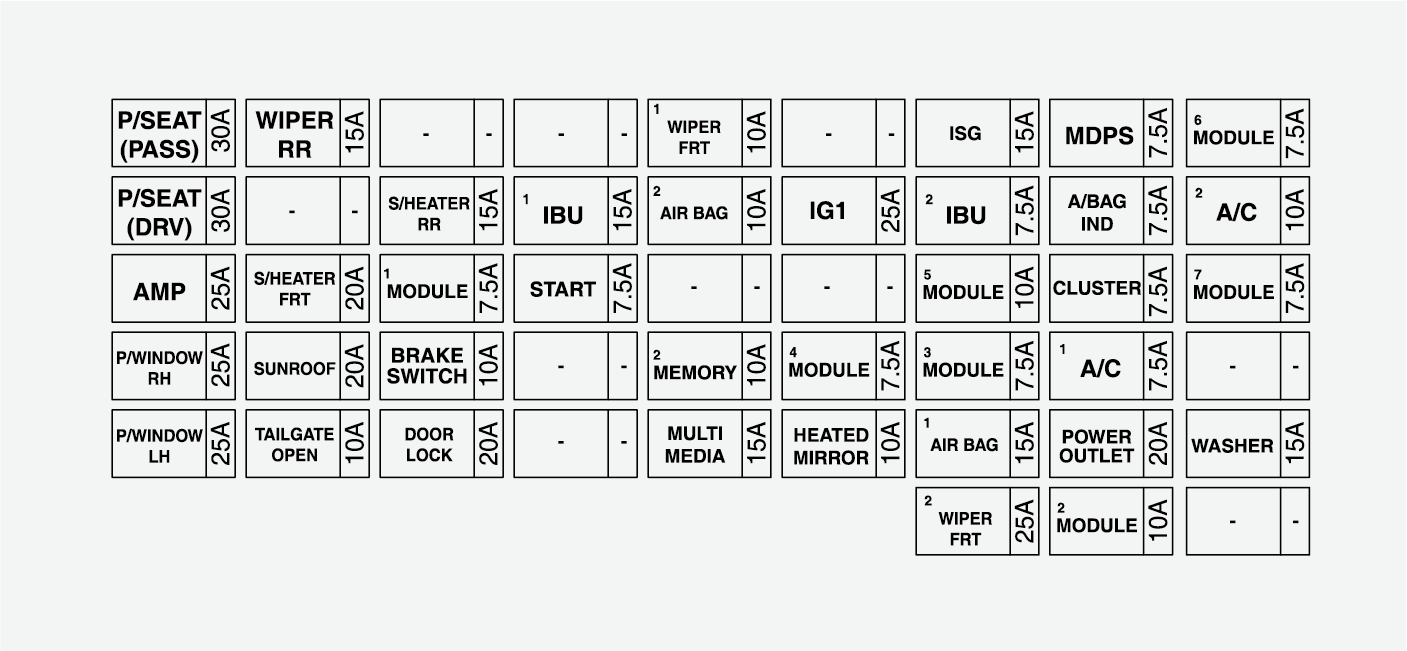

Driver's side fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

Fuse Name

Fuse rating

Circuit Protected

P/SEAT (PASS)

30 A

Passenger Seat Manual Switch

P/SEAT (DRV)

30 A

Driver Seat Manual Switch

AMP

25 A

Low DC-DC Converter (AMP (Amplifier))

P/WDW RH

25 A

Power Window RH Relay

P/WDW LH

25 A

Power Window LH Relay, Driver Safety Power Window Module

WIPER RR

15 A

Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay)

S/HEATER FRT

20 A

Front Air Ventilation Seat Module, Front Seat Warmer Module

SUNROOF

20 A

Sunroof Unit

TAIL GATE OPEN

10 A

Tail Gate Relay

S/HEATER RR

15 A

Rear Seat Warmer Module

MODULE 1

7.5 A

Hazard Switch, Data Link Connector, Passenger Power Window Switch, Power Window Main Switch, Crash Pad Switch, Key Interlock

BRAKE SWITCH

10 A

Stop Lamp Switch, IBU (Integrated Body Control Unit)

DOOR LOCK

20 A

Door Lock Relay, Door Unlock Relay, ICM (Integrated Circuit Module) Relay Box (Two Turn Unlock Relay)

IBU 1

15 A

IBU (Integrated Body Control Unit)

START

7.5 A

[With B/Alarm & Without Smart Key] ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay)

[DCT] Transaxle Range Switch, [IVT] Position Switch

WIPER FRT 1

10 A

IBU (Integrated Body Control Unit)

AIR BAG 2

10 A

SRS (Supplemental Restraint System) Control Module

MEMORY 2

10 A

A/C Control Module, Head-Up Display

MULTI MEDIA

15 A

Low DC-DC Converter

IG1

25 A

PCB Block (Fuse Name - ABS 3, ECU 5, SENSOR 4, TCU 2)

MODULE 4

7.5 A

Forward Collision-Avoidance Assist Unit, IBU (Integrated Body Control Unit), Crash Pad Switch, 4WD ECM (Engine Control Module), Electric Parking Brake Switch, Lane Keeping Assist Unit

HAETED MIRROR

10 A

ECM (Engine Control Module), A/C Control Module, Driver/Passenger Power Outside Mirror

ISG

15 A

Sound Mood Lamp, Driver/Passenger Door Mood Lamp, Low DC-DC Converter, Blind-Spot Collision Warning Unit LH/RH, A/V & Navigation Head Unit, Audio, A/C Control Module, Head-Up Display, Instrument Cluster

IBU2

7.5 A

IBU (Integrated Body Control Unit)

MODULE 5

10 A

Electro Chromic Mirror, Wireless Charger, ATM Shift Lever Indicator, Console Switch LH, Audio, A/V & Navigation Head Unit, A/C Control Module, AMP (Amplifier), Front Air Ventilation Seat Control Module, Rear Seat Warmer Module, Front Seat Warmer Module, Low DC-DC Converter

MODULE 3

7.5 A

Stop Lamp Switch, ATM Shift Lever

AIR BAG

15 A

SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor

FRT WIPER2

25 A

PCB Block (Front Wiper (Low) Relay), Front Wiper Motor

MDPS

7.5 A

MDPS (Motor Driven Power Steering) Unit

A/BAG IND

7.5 A

Overhead Console Lamp, Instrument Cluster

CLUSTER

7.5 A

Instrument Cluster, Head-Up Display

A/C 1

7.5 A

Engine Room Junction Block (Blower Relay, PTC Heater #1/#2 Relay), A/C Control Module

POWER OUTLET

20 A

Front Power Outlet #2 (USB), Joint Connector (JM04)

MODULE 2

10 A

Rear USB Charger, IBU (Integrated Body Control Unit), Low DC-DC Converter, Front Power Outlet #2, Power Outside Mirror Switch, ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay), Front USB Charger

MODULE 6

7.5 A

IBU (Integrated Body Control Unit)

A/C 2

10 A

[Auto A/C] Blower Motor, Engine Room Junction Block (Blower Relay)

[Manual A/C] Blower Resistor, A/C Control Module

MODULE 7

7.5 A

Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Front Deicer Box (Front Deicer LH/RH Relay)

WASHER

15 A

Multifunction Switch

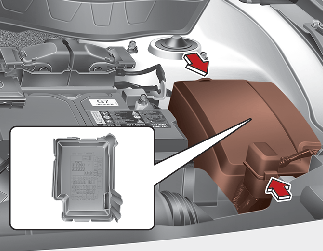

Engine compartment fuse panel

Refer to the following table for a description of the fuse.

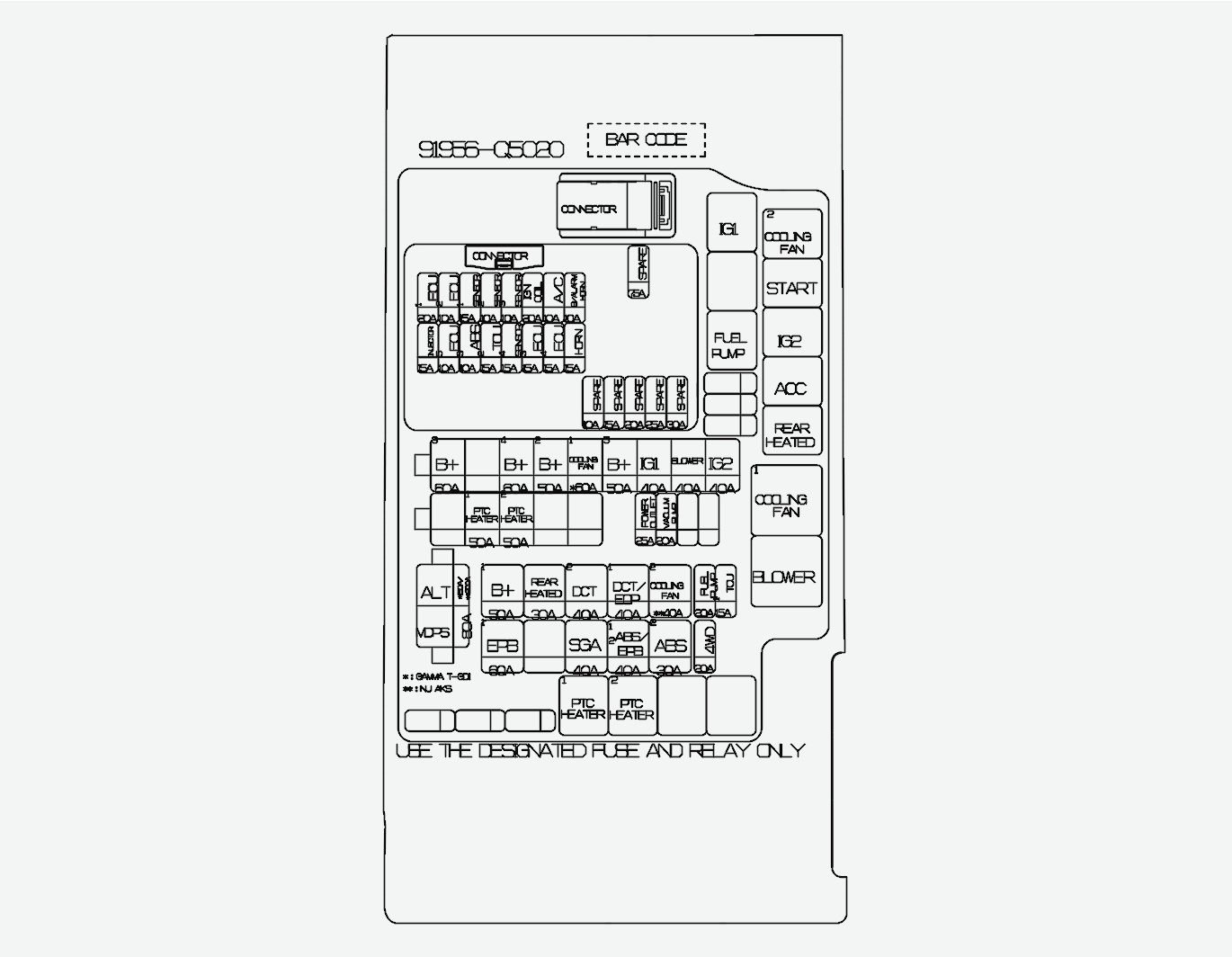

Engine Room Junction Block

Fuse

Fuse Name

Fuse rating

Circuit Protected

MULTI FUSE-1

ALT

150 A

Alternator, Engine Room Junction Block (Fuse Name - SGA, EPB 1, EPB 2, ABS 2, 4WD)

200 A

MDPS

80 A

MDPS (Motor Driven Power Steering) Unit

MULTI FUSE-2

B+3

60 A

ICU Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS18, IPS20)

B+4

60 A

ICU Junction Block (Fuse Name - P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, S/HEATER, AMP, P/SEAT (PASS), P/SEAT (DRV))

B+2

50 A

ICU Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12, IPS17)

COOLING FAN1

60 A

Engine Room Junction Block (Cooling Fan 1 Relay)

B+5

50 A

PCB Block (Main Relay, Fuse Name - ECU 4, ECU 3, B/ALARM HORN, HORN, A/C)

IG1

40 A

[With Smart Key] Engine Room Junction Block (ACC Relay, IG1 Relay)

[Without Smart Key] Ignition Switch

BLOWER

40 A

Engine Room Junction Block (Blower Relay)

IG2

40 A

[With Smart Key] Engine Room Junction Block (IG2 Relay, Start Relay)

[Without Smart Key] Engine Room Junction Block (Start Relay), Ignition Switch

MULTI FUSE-3

PTC HEATER 1

50 A

Engine Room Junction Block (PTC Heater 1 Relay)

PTC HEATER 2

50 A

Engine Room Junction Block (PTC Heater 2 Relay)

FUSE

FUEL PUMP

20 A

Engine Room Junction Block (Fuel Pump Relay)

TCU 1

15 A

TCM (Transmission Control Module)

EPB 1

60 A

ESC (Electronic Stability Control) Module (With EPB (Electronic parking brake))

SGA

40 A

Smart Gear Actuator

EPB 2

40 A

ESC (Electronic Stability Control) Module

ABS2

30 A

ESC (Electronic Stability Control) Module (Without EPB (Electronic parking brake)

4WD

20 A

4WD ECM (Engine Control Module)

COOLING FAN 2

40 A

[Nu 2.0 MPI] Engine Room Junction Block (Cooling Fan 1/2 Relay)

POWER OUTLET

25 A

ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay)

VACUUM PUMP

20 A

Vacuum Pump

B+1

50 A

ICU Junction Block (Long Term Loak Auto Cut Relay, Fuse - BRAKE SWITCH, MODULE 1, IBU 1, S/HEATER RR, AIR BAG 2, DOOR LOCK)

DCT 1/EOP

40 A

[DCT] TCM (Transmission Control Module)

[Nu 2.0 MPI] Electronic Oil Pump Module

DCT 2

40 A

[DCT] TCM (Transmission Control Module)

REAR HEATED

30 A

Engine Room Junction Block (Rear Heated Relay)
PCB Block

Fuse Name

Fuse rating

Circuit Protected

ECU1

20 A

PCM (Power Train Control Module)

ECU2

10 A

PCM (Power Train Control Module)

SENSOR1

15 A

Oxygen Sensor (Up/Down)

SENSOR2

10 A

Canister Close Valve, Oil Control Valve #1, Oil Control Valve #2, Oil Control Valve #3, Engine Room Junction Block (Cooling Fan 1/2 Relay), PCB Block (A/C Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve

SENSOR3

10 A

Engine Room Junction Block (Fuel Pump Relay)

IGN COIL

20 A

Ignition Coil #1~#4

A/C

10 A

A/C Relay

B/ALARM HORN

10 A

B/Alarm Horn Relay

INJECTOR

15 A

Injector #1~#4

ECU5

10 A

PCM (Power train Control Module)

ABS3

10 A

ESC (Electronic Stability Control) Module, Data Link Connector

TCU2

15 A

Position Switch

SENSOR 4

15 A

Electronic Oil Pump Module

ECU3

15 A

PCM (Power train Control Module)

ECU4

15 A

PCM (Power train Control Module)

HORN

15 A

Horn Relay

Refer to the following table for the relay type.

Relay NO.

Relay Name

Type

E61

IG1 Relay

MICRO

E63

Fuel Pump Relay

MICRO

E64

Cooling Fan 2 Relay

MICRO

E65

Start Relay

MICRO

E66

IG2 Relay

MICRO

E67

ACC Relay

MICRO

E68

Rear Defogger Relay

MICRO

E69

Cooling Fan 1 Relay

MINI

E70

Blower Relay

MINI

E71

PTC Heater 1 Relay

MICRO

E72

PTC Heater 2 Relay

MICRO

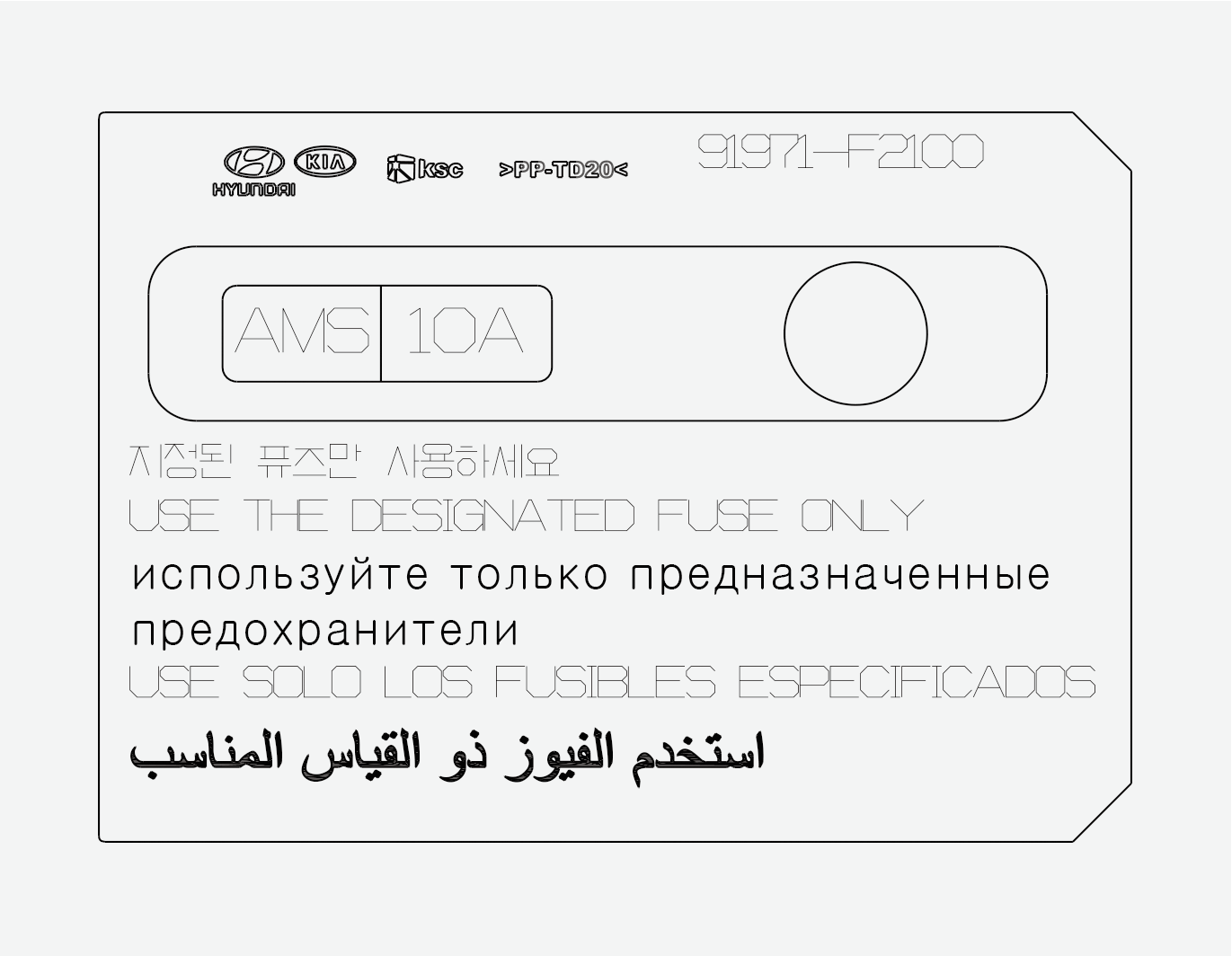

Battery terminal cover

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
