Smart Cruise Control speed

To set Smart Cruise Control speed

Push the Driving Assist button on the steering wheel to turn the function on. The cruise indicator will illuminate.
Accelerate to the desired speed. Smart Cruise Control speed can be set as follows:
- 10 km/h (5 mph) ~ 180 km/h (110 mph): when there is no vehicle in front
- 0 km/h (0 mph) ~ 180 km/h (110 mph): when there is a vehicle in front
Move the switch down (to SET-), and release it at the desired speed. The set speed and Vehicle Distance on the LCD screen will illuminate.
Release the accelerator pedal. The desired speed will automatically be maintained.

If there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead.

On a steep grade, the vehicle may slow down or speed up slightly while going uphill or downhill.

NOTICE

Vehicle speed may decrease on an upward slope and increase on a downward slope.

CAUTION

When vehicle speed is under 10 km/h (6 mph), Smart Cruise Control is canceled. The driver must adjust the vehicle speed by depressing the accelerator or brake pedal according to the road condition ahead and driving condition.
The speed is set to 30 km/h (20 mph) when there is a preceding car in the front direction, and when it is set in the situation where the car is 0~30 km/h (0 ~20 mph).

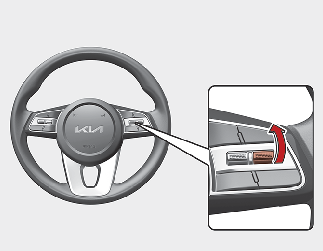

To increase Smart Cruise Control set speed

Follow either of these procedures:

Push the switch up (RES+), and release it immediately. The cruising speed will increase by 1.0 km/h (1.0 mph) each time you move the switch up in this manner.
Push the switch up (RES+), and hold it. Your vehicle set speed will increase by 10 km/h (5 mph). Release the switch at the speed you want.
You can set the speed to 180 km/h (110 mph).

CAUTION

Check the traffic and driving conditions before using the switch. Driving speed may sharply increase, when you push up and hold the switch.

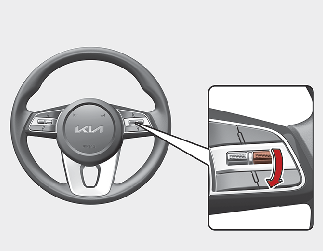

To decrease Smart Cruise Control set speed

Follow either of these procedures:

Push the switch down (SET-), and release it immediately. The cruising speed will decrease by 1.0 km/h (1.0 mph) needs a space each time you move the switch down in this manner.
Push the switch down (SET-), and hold it. Your vehicle set speed will decrease by 10 km/h (5 mph). Release the switch at the speed you want.
You can set the speed to 30 km/h (20 mph).

To temporarily accelerate with Smart Cruise Control on

If you want to speed up temporarily when Smart Cruise Control is on, depress the accelerator pedal. Increased speed will not interfere with Smart Cruise Control operation or change the set speed.

To return to the set speed, take your foot off the accelerator pedal.

If you push the switch down (SET-) at increased speed, the set speed is updated.

NOTICE

Be careful when accelerating temporarily, because the speed is not controlled automatically at this time even if there is a vehicle in front of you.

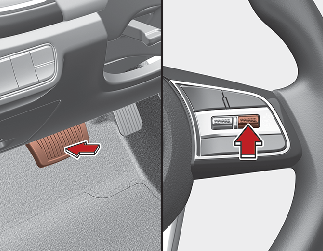

Smart Cruise Control will be canceled when:

Canceled manually

Depressing the brake pedal.

Pushing the CANCEL switch located on the steering wheel.

Smart Cruise Control turns off temporarily when the Set Speed and Vehicle-to-Vehicle Distance indicator on the LCD display turns off.

The cruise indicator is illuminated continuously.

Canceled automatically

The driver's door is opened.
The shift lever is shifted to N (Neutral), R (Reverse) or P (Park).
The parking brake is applied.
The vehicle speed is over 170 km/h (110 mph).
The ESC (Electronic Stability Control), TCS (Traction Control System) or ABS is operating.
The ESC is turned off.
The sensor or the cover is dirty or blocked with foreign matter.
The vehicle is stopped for a certain period of time.
The vehicle is stopped for more than 5 minutes.
The vehicle stops and goes repeatedly for a long period of time.
The accelerator pedal is continuously depressed for a long period of time.
The accelerator pedal is continuously depressed for more than one minute.
The engine performance is abnormal.
Engine rpm is in the red zone.
The driver starts driving by pushing the switch up (RES+)/down (SET-) or depressing the accelerator pedal, after the vehicle is stopped by Smart Cruise Control with no other vehicle ahead.
Forward Collision-Avoidance Assist is activated.
The engine speed is in dangerous range.
When the braking control is operated for FCA (Forward Collision-Avoidance Assist).
The engine speed is in dangerous range.

Each of these actions will cancel Smart Cruise Control operation. The Set Speed and Vehicle-to-Vehicle Distance on the LCD display will go off.

In a condition Smart Cruise Control is canceled automatically, Smart Cruise Control will not resume even though the RES+ or SET- switch is pushed.

NOTICE

If Smart Cruise Control is canceled in a situation not described above, take your vehicle to an authorized Kia dealer and have the function checked.

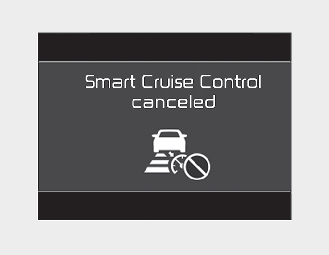

Smart Cruise Control canceled

If the function is canceled, the warning chime will sound and a message will appear for a few seconds.

You must adjust the vehicle speed by depressing the accelerator or brake pedal according to the road condition ahead and driving condition.

Always check the road conditions. Do not rely on the warning chime.

Resuming Smart Cruise Control set speed

If any method other than the cruise switch was used to cancel cruising speed and the function is still activated, the cruising speed will automatically resume when you push the switch up (RES+) or down (SET).

If you push the switch up (RES+), the speed will resume to the recently set speed. However, if vehicle speed drops below 10 km/h (5 mph), it will resume when there is a vehicle in front of your vehicle.

NOTICE

Always check the road conditions when you push the switch up (RES+) to resume speed.

To turn Cruise Control off

Pushing the Driving Assist button. The cruise indicator will go off.

If you wish not to use Cruise Control, always turn the function off by pushing the Driving Assist button.

To adjust the sensitivity of Smart Cruise Control

The sensitivity of vehicle speed when following the front vehicle to maintain the set distance can be adjusted. The rate of acceleration (sensitivity) along the front vehicle is set in conjunction with the 'DRIVE MODE' switch.

SCC responsiveness is not tied to the person
- Normal: Vehicle speed following the front vehicle to maintain the set distance is normal.
- Fast: Vehicle speed following the front vehicle to maintain the set distance is faster than normal speed.
DRIVE MODE switch

Smart Cruise Control sensitivity changes when the 'DRIVE MODE' switch is operated.

Drive Mode	The sensitivity of Smart Cruise Control
NORMAL	Normal
COMFORT	Normal
SPORT	Fast
