Stowing the rear seat belt

The rear seat belt buckles can be stowed in the pocket between the rear seatback and cushion when not in use.

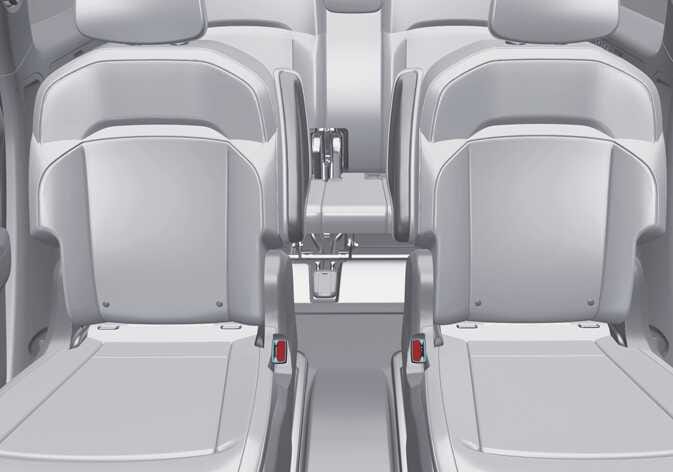

Figure 1. 2nd row seat (for 7 passenger vehicle)
OLQ2A065032

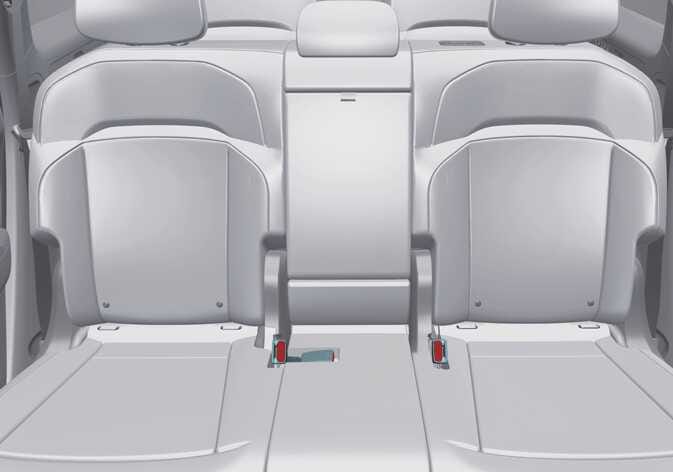

Figure 2. 2nd row seat (for 8 passenger vehicle)
OLQ2A065081

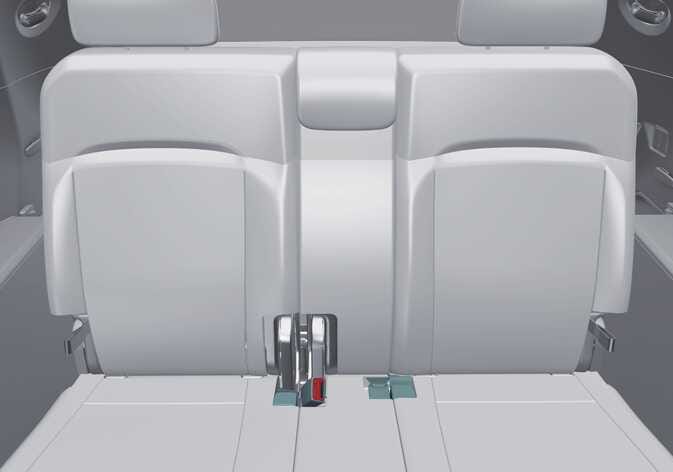

3rd row seat
OLQ2A065033
TIP

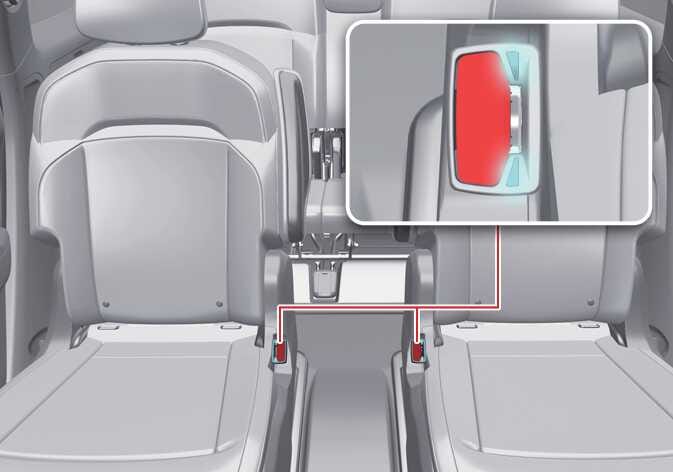

The illuminated seat belt buckles make seat belt fastening easier for rear passengers in the dark or at night. It is applied on the outer-2nd row seats and remains illuminated until the seat belt is fastened.

OLQ2A065035
  1. Route the seat belt webbing through the rear seat belt guides. This will help keep the belts from being trapped behind or under the seats.
    Figure 3. 2nd row seat
    OLQ2A065009
    Figure 4. 3rd row seat
    OLQ2A065014
  2. After inserting the seat belt, tighten the belt webbing by pulling it up.
    TIP

    When pulling out the seat belt to wear it, slowly pull the tab out of the seat belt guide so that the guide does not come off the trim.
