USB charger

The USB charger recharges the batteries of small electronic devices using a USB cable.

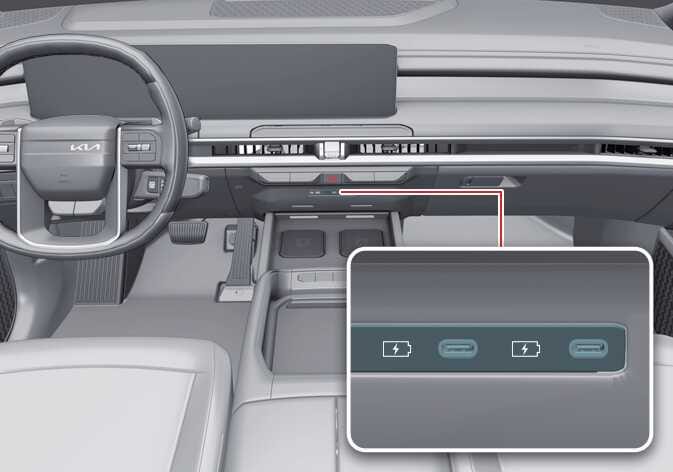

Figure 1. Instrument panel
OLQ2A085035

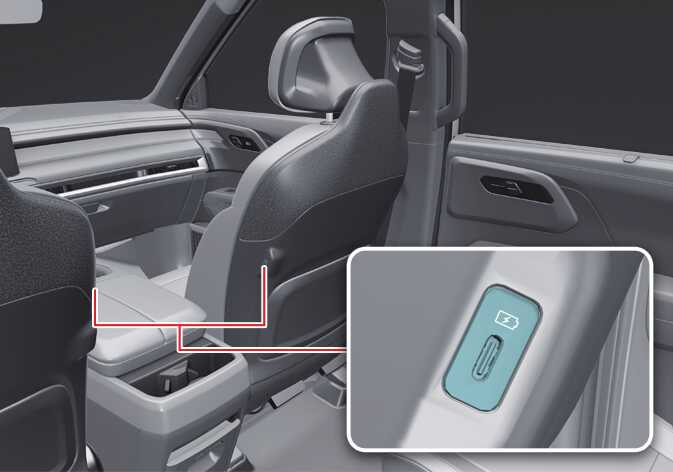

Figure 2. Front seat
OLQ2A085036

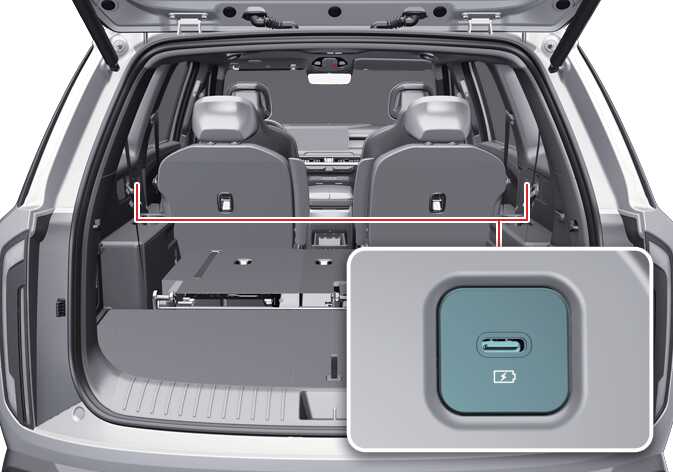

Figure 3. Rear cargo area
OLQ2A085037

You can recharge the electronic devices when the vehicle is in ON position.

You can monitor the battery charging state on the electronic device.

Disconnect the USB cable from the USB port after use.

Rated output: 9.0 V/Max 3.0 A

  • A smartphone or a tablet PC may get warmer during the recharging process. This does not indicate any malfunction with the charging system.

  • A smartphone or a tablet PC that has a different recharging method may not properly recharge. In this case, use an exclusive charger for your device.

  • The charging terminal is only for recharging a device. Do not use the charging terminal either to turn on an audio or to play media in the infotainment system.

NOTE

  • Use the USB charger when the vehicle is running. Using the USB charger for prolonged periods of time with the vehicle off could cause the 12V battery to discharge.

  • To prevent damage to the USB charger:

    • Do not insert foreign objects or spill liquid into the outlet. This may damage the USB charging terminal.

    • Do not use devices with a working current exceeding 3,000 mA (3.0 A).

TIP

Charging may not be possible when using a USB Type-C to USB Type-A converter.
